Digi 70001528 Data Networking
Part #: 70001528 | SKU: DIG43897

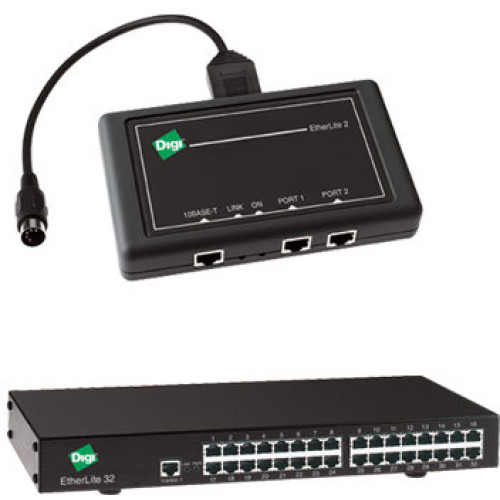

The EtherLite family blends the control and performance of asynchronous serial communications with the convenience of an Ethernet connection. Available in two- to 32-port versions, the traffic from all serial ports is serviced by a single TCP/IP session. The EtherLite network serial concentrator connects asynchronous serial ports to your network. It replaces the installation of serial adapters in servers for applications in retail/POS, process control, data collection and console management of clusters, routers, hubs, switches, PBXs and other networking devices with console ports.

Digi 70001528 Data Networking

Part Details: EtherLite, Lite 160 Terminal Server (16-Port, RJ45 Serial to Ethernet - International)

Need a different version of the Digi EtherLite Data Networking? View all 3 configurations

Additional Information

Manufacturer	Digi
Model Name	EtherLite

Digi EtherLite Specs (pdf)

General Information

Product Type: Terminal Server
Brand Name: Digi
Manufacturer: Digi International
Product Model: 160
Product Name: EtherLite 160 16-Port Terminal Server
Product Line: EtherLite

Physical Characteristics

Height: 1.2"
Width: 11.5"
Depth: 5.4"
Weight (Approximate): 3.10 lb

Interfaces/Ports

Number of Network (RJ-45) Ports: 17
Network (RJ-45): Yes

Other

Additional Information:
- CPU : 40 MHz 80C186 embedded microcontroller
- RS-232/422 switchable model

Memory

Standard Memory: 512 KB
Memory Technology: SRAM

Network & Communication

Ethernet Technology: Fast Ethernet

Extended Details

Recommended Accessories for Model: Digi 70001528 Data Networking

Digi 76000914 Accessory
Part #: 76000914 | SKU: DIG209378

EtherLite Accessories, Power supply, EtherLite 2/80/160
