Digi 70001805 Console & Device Servers
Part #: 70001805 | SKU: DIG18578

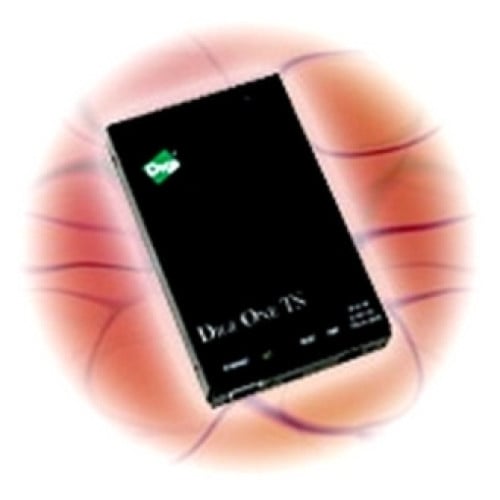

The Digi One TS makes it easy to connect any EIA-232/422/485 serial device to your network. It combines the inherent benefits of data networking with proven asynchronous connectivity to deliver powerful, yet simple Ethernet connectivity for all your serial devices. The Digi One TS delivers universal and powerful features including data security via SSH v2, port buffering, and full SNMP management, making it ideal for applications like console management where device management and monitoring are critical.

Digi 70001805 Console & Device Servers

Part Details: Device Server (EIA-232/422/485 to RJ45 Serial)

Need a different version of the Digi One TS Data Networking? View all 1 configurations

MSRP: $610.00 Price: $487.88

In Stock

Additional Information

Manufacturer	Digi
Model Name	One TS

Digi One TS Specs (pdf)

General Information

Product Type: Device Server
Product Series: TS
Brand Name: Digi
Manufacturer: Digi International
Product Name: One TS Device Server
Product Line: Digi One

Physical Characteristics

Height: 5.4"
Width: 3.3"
Depth: 0.9"
Form Factor: Desktop
Weight (Approximate): 2.25 oz

Interfaces/Ports

Number of Network (RJ-45) Ports: 2
Network (RJ-45): Yes

Other

Certifications & Standards:
- FCC Part 15, A
- CE
- EN5024-1
- EN 50082-1
- UL 1950
- CSA 22.2 No 950
- IEEE 802.3af compliant
Compatibility:
- Operating systems:
- AIX
- HP-UX
- Linux
- Microsoft® Windows XP®
- Microsoft Windows 2000®
- Microsoft Windows NT®
- SCO® OpenServer
- SCO UnixWare
- Solaris (Intel)
- Solaris (SPARC)
- TCP/UDP Socket Services are operating system independent
Additional Information:
- Easily network-enable virtually any serial device
- Patented Digi RealPort® Technology for COM or TTY port control and management
- Switch selectable EIA-232/422/485 for simple interfacing to any type of serial device.
- Monitoring and diagnostic utility for simple and efficient device monitoring and troubleshooting
- Data Security via SSH v2
- Port Buffering for data capture
- Easy configuration through web interface (HTTP)
- Industry leading low latency
- Baud rates up to 230 Kbps

Power Description

Input Voltage:
- 110 V AC
- 220 V AC

Warranty

Limited Warranty: 5 Year
