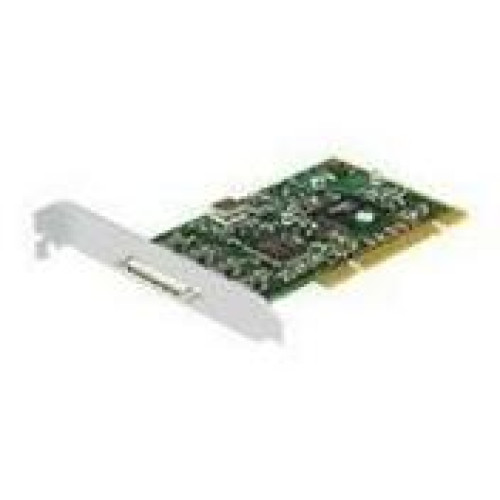

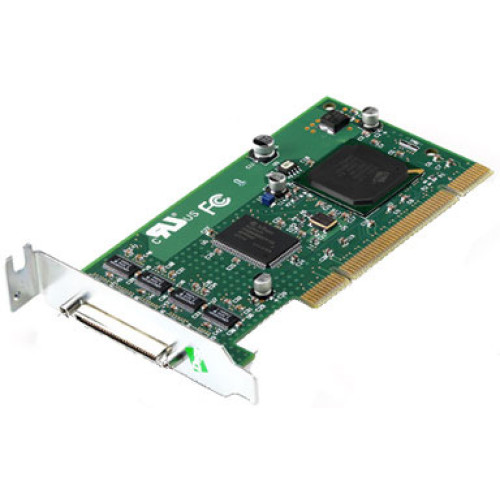

Digi 77000706 Data Networking
Part #: 77000706 | SKU: DIG18642

The AccelePort Xp Universal PCI (3.3V and 5V) cards are powerful, highly integrated 80 Mhz RISC processor-based products that deliver the highest level of intelligence and performance available on the market. The availability of two- to 16-, high-speed serial ports per card, the wide array of connector options, the small form factor, and the industry leading surge protection on each signal provides wide application flexibility. The AccelePort Xp was designed to further enhance multi-user (retail point-of-sale, industrial control processing, data collection and office automation) implementations in a broad range of operating systems with an unrivaled feature set and excellent throughput of 921.6 Kbps, bi-directionally on each serial port.

Digi 77000706 Data Networking

Part Details: Universal PCI (3.3V and 5V) 4 Port EIA-232

Need a different version of the Digi AccelePort Xp Data Networking? View all 2 configurations

Additional Information

Manufacturer AIDC	Digi
Model Name	AccelePort Xp

Digi AccelePort Xp Specs (pdf)

General Information

Product Type: Multiport Serial Adapter
Product Series: Xp
Brand Name: Digi
Manufacturer: Digi International
Product Name: Xp 4-port Serial Adapter

Technical Information

Data Transfer Rate: Up to 921.60 Kbps Full-duplex
Host Interface: PCI
Protocols: EIA-232
Platform Supported: PC

Physical Characteristics

Height: 2.5"
Width: 4.7"
Form Factor: Plug-in Card
Dimensions: 2.5" Height x 0.7" Width x 4.7" Depth
Thickness: 725 mil
Weight (Approximate): 6 oz

Interfaces/Ports

Ports: 1 x 68-pin HD-68 Female - SCSI
Ports Expandability:
- 4 x 25-pin DB-25 RS-232 - Serial, Via Cable (Optional)
- 4 x 9-pin DB-9 RS-232 - Serial, Via Cable (Optional)

Other

Certifications & Standards:
- FCC Part 15
- Class B
- AS3548
- EN55022
- Class B
- EN55024
- EN60950
- UL 1950
- CSA 22.2
- No. 950
- VCCI Class B
- ICES-003
- Class B
Compatibility:
- Microsoft Windows .NET Server 2003
- Microsoft Windows XP, 2000, NT
- Microsoft Windows 95/98/Me
- Solaris SPARC and Intel
- Novell NetWare
- HP-UX
- Linux
- OpenVMS
- OS/2
- QNX
- SCO OpenServer
- SCO UnixWare
- Tru64 Most drivers ship with product on CD-ROM. Drivers and driver updates also available on our Web-site at www.digi.com/drivers.
Additional Information:
- Universal PCI bus slot support 3.3V and 5V
- PCI 2.3 compliant/PCI-X compatible
- Simultaneously supports data speeds of 921.6 Kbps, bi-directionally, on all ports
- Full modem control and hardware and software flow control
- Provides wide array of cabling options with SCSI HD-68 connections
- Surge protection on all signals for superior reliability
- Small form factor meets low profile PCI specifications
- Hardware / software handshaking support
- Industry standard surge suppression on all signals
- Bus mastering design reduces CPU utilization
- ENVIRONMENTAL: - Air movement: 30 CFM forced

Power Description

Input Current:
- 640 mA @ 5 V DC
- 100 mA @ 12 V DC
Input Voltage:
- 5 V DC 5%
- 12 V DC 5%

Environmental Conditions

Altitude: 0 ft to 12000 ft
Humidity: 5 to 90% Relative Humidity
Temperature:
- 50°F (10°C) to 131°F (55°C) Operating
- -13°F (-25°C) to 185°F (85°C) Storage

Warranty

Limited Warranty: 5 Year

Processor & Chipset

Processor: 1 x 80 MHz RISC

Extended Details
