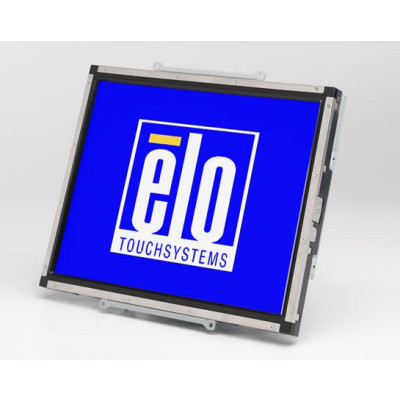

Elo 1537L Touchscreen

Elo 1537L Touchscreen

Elo's chassis LCD monitors have a long-lasting product cycle because the enclosure is controlled by Elo's specifications. Future panel improvements are therefore possible without external changes. The 1537L has a compact form factor with thin borders and multiple mounting options for easy integration. It features a high quality panel along with a unique, injection-molded minibezel with virtually invisible watertight seal and choice of touch technology.
Discontinued - Need Assistance
See all options
  • Dual serial/USB touch interface
  • Future generation panels phased-in without external changes
  • Long lasting product cycle-enclosure controlled by Elo specifications
  • 3-D electronic design files available
  • Mounting options including rear-mount (from top/bottom or sides) and VESA mount
  • Integrated precision minibezel with watertight 0.5 mm seal
  • Multilingual on-screen display (OSD)
  • Worldwide agency approvals

Home Products
Markets
Partners
Support
How To Buy
E-Services
Company Information
Products





Related Products

? Wide viewing angle version
? Other touch technologies
? NEMA4/IP65 sealed version
? IP65 sealed version (Europe only)
? Front/panel-mount version with designer bezel
? Also available in 12", 17" and 19"
? Desktop model

1537L 15" LCD Rear-Mount Touchmonitor (1000 Series)

|  Print  |  E-Mail

Features ? Specifications ? Documentation/Support
Part Numbers ? Pricing ? Accessories

Elo's chassis LCD monitors have a long-lasting product cycle because the enclosure is controlled by Elo's specifications. Future panel improvements are therefore possible without external changes. The 1537L has a compact form factor with thin borders and multiple mounting options for easy integration. It features a high quality panel along with a unique, injection-molded minibezel with virtually invisible watertight seal and choice of touch technology.

Features

Specifications

Model 1537L
Series 1000
Availability Worldwide
Case/bezel color Black minibezel
Display Size: 15.0" diagonal
Type: Active matrix TFT LCD
Aspect ratio: 4 x 3
Useful screen area Horizontal: 12.0" (304 mm)
Vertical: 9.0" (228 mm)
Monitor dimensions Width: 13.23" (336 mm)
Height: 10.39" (264 mm)
Depth: 1.61" (41 mm)
Optimal (native) resolution 1024 x 768
Other supported resolutions 1024 x 768 at 60, 65 (Sun), 70 or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 (Mac), 72 or 75 Hz
Colors 16.2 million with dithering
Brightness
LCD panel
250 cd/m2 (typical)
Brightness
LCD panel with touchscreen
AccuTouch: 205 cd/m2 (typical)
IntelliTouch
: 230 cd/m2 (typical)
Surface capacitive
: 212 cd/m2 (typical)
Response time 17 msec (typical)
Viewing angle
(typical, from center)
Horizontal (left/right): ?60? or 120? total
Vertical (up/down): 40/60? or 100? total
Contrast ratio 400:1 typical
Input video format RGB analog only
Input sync format Separate horizontal and vertical sync, composite sync and sync-on-green
Input video signal connector Mini D-Sub 15-Pin VGA type
Input frequency Horizontal: 31.5-60.2 kHz
Vertical: 56.3-75 Hz
Power supply Type: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Monitor input voltage, current: +12VDC ?5% at 2.5 A max.
Power dissipation 30 W max.
Temperature Operating: 0?C to 40?C
Storage: -20?C to 60?C
Humidity Operating: 20%-80%
Storage: 10%-90%
noncondensing
Weight
(approx.)
Actual: 6.6 lb (3.0 kg)
Shipping: 9.7 lb (4.4 kg)
Shipping box dimensions
Warranty Monitor: 3 years
Backlight lamp life: typical 30,000 hours to half brightness
MTBF: 50,000 hours demonstrated
Agency approvals UL, cUL, FCC, CE, T?V-GS, VCCI, IC, C-Tick
On-screen display (OSD) Digital OSD
User's controls OSD buttons: menu, up, down, select, power
OSD: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall, language (English, German, Spanish, Japanese, French)
OSD disable/enable: power, OSD menu
Mounting options 100 mm or 75 mm VESA mount
Rear mount through bezel or with brackets
Mounting brackets included
Other features Exclusive wiper blade for sealing

Documentation and Support

Part Numbers

All monitors have antiglare surface treatment.

Touch Technology Touch Interface Part #
AccuTouch Dual serial/USB E194933
IntelliTouch Dual serial/USB F76514-000
Surface capacitive Dual serial/USB E336020

Pricing

For pricing information, please:

Accessories

Power Cable: A North American power cable and a European power cable are included. For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying part number 276875-000.

Replacement Power Supply Brick: Part number C32542-000. Available at additional cost.

Touch/Video Cables: Detachable touch and video cables are included.



Top

Footer Footer

? 2006 Tyco Electronics Corporation. All rights reserved. Privacy Policy. Site Terms.
Extended Details
Refine Your Options
Shop By
Shopping Options
Product Condition
  1. New (18)
Manufacturer
  1. Elo (18)
Form Factor
  1. Rear Mount (1)
Interface
  1. RS-232 Serial (1)
  2. USB (1)
  1. Elo 1537L Touchscreen
    Part #: E461378 | SKU: ELO83636

    Elo 1537L 15" Open-frame LCD Touchscreen Monitor - 4:3 - 14.50 ms - 15" Class - Infrared - 1024 x 768 - XGA - 16.2 Million Colors - 500:1 - 250 Nit - USB - VGA - Silver - RoHS - 3 Year
  2. Elo 1537L Touchscreen
    Part #: E731919 | SKU: ELO83639

    Elo 1537L Open Frame Touchscreen LCD Monitor - 15" - Surface Acoustic Wave - 1024 x 768 - 4:3 - Black
  3. Elo 1537L Touchscreen
    Part #: E512043 | SKU: ELO83637

    Elo 1537L 15" Open-frame LCD Touchscreen Monitor - 4:3 - 14.50 ms - 15" Class - Surface Acoustic Wave - 1024 x 768 - XGA - 16.2 Million Colors - 500:1 - 250 Nit - USB - VGA - Steel, Black - 3 Year
  4. Elo 1537L Touchscreen
    Part #: E419638 | SKU: ELO242549

    Elo 1537L 15" Open-frame LCD Touchscreen Monitor - 4:3 - 14.50 ms - 15" Class - IntelliTouch Surface Wave - 1024 x 768 - 16.2 Million Colors - 500:1 - 250 Nit - USB - VGA - Steel, Black
  5. Elo 1537L Touchscreen
    Part #: E701210 | SKU: ELO83638

    15" LCD Touchscreen - Rear-Mount - Accutouch - Serial and USB Interfaces - Power supply sold separately
  6. Elo 1537L Touchscreen
    Part #: E001122 | SKU: ELO375761

    Elo 1537L 15" Open-frame LCD Touchscreen Monitor - 4:3 - 16 ms - 15" Class - IntelliTouch Pro Projected Capacitive - 1024 x 768 - XGA - 16.2 Million Colors - 700:1 - 250 Nit - LED Backlight - DVI - USB - VGA - Steel, Black - China RoHS, WEEE, TÜV Rheinland - 3 Year
  7. Elo 1537L Touchscreen
    Part #: E001123 | SKU: ELO375762

    Elo 1537L 15" Open-frame LCD Touchscreen Monitor - 4:3 - 16 ms - 15" Class - IntelliTouch Surface Wave - 1024 x 768 - XGA - 16.2 Million Colors - 700:1 - 250 Nit - LED Backlight - DVI - USB - VGA - Steel, Black
  8. Elo 1537L Touchscreen
    Part #: E194933 | SKU: ELO20740

    Elo 1000 Series 1537L Touchscreen LCD Monitor - 15" - 5-wire Resistive - Black
  9. Elo 1537L Touchscreen
    Part #: F76514-000 | SKU: ELO20741

    Elo 1000 Series 1537L Touchscreen LCD Monitor - 15" - Surface Acoustic Wave - Black
  10. Elo 1537L Touchscreen
    Part #: E071597 | SKU: ELO24688

    1000 Series 1537L 15 Inch LCD Rear-Mount Touchmonitor (AccuTouch Touch Technology, Dual Serial/USB Touch Interface, ROHS and Antiglare Surface Treatment)
