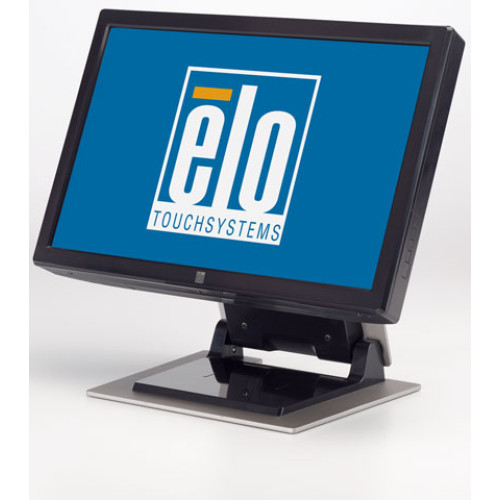

Elo 1900L Touchscreen

The ELO 1900L touchmonitor senses touch on the display by recognizing the unique pattern of sounds. Consisting only of a glass overlay mounted in front of the LCD panel, the 1900L zero-bezel Acoustic Pulse Recognition (APR) delivers benefits that combine the ultimate in optical qualities with a stylish, easy to clean, seamless front face. Wide-aspect displays like the 1900L are easier to use and incorporate into the workplace than traditional desktop touchmonitors. Wide-screen format displays allow extra content on screen and are ideal in corporate environments for spreadsheets, publishing, and dual-window applications.

See all options

Specs & Info
All Options

Elo 1900L Specs (pdf)

Model	1900L
Case/bezel color	Dark gray or beige
Display	Size: 19.0" diagonal Type: Active matrix TFT LCD Aspect ratio: 16 x 10
Useful screen area	Horizontal: 16.07" (408.24 mm) Vertical: 10.05" (255.15 mm)
Monitor dimensions (with stand)	Width: 17.68" (449 mm) Height (max.): 14.96" (379.96 mm) Depth (max.): 11.83" (300.4 mm)
Optimal (native) resolution	1440 x 900
Other supported resolutions	1680 x 1050 at 60 Hz 1440 x 900 at 60 Hz 1366 x 768 at 60 Hz 1360 x 768 at 60 Hz 1280 x 1024 at 60 or 75 Hz 1280 x 960 at 60 Hz 1280 x 768 at 65 Hz 1152 x 864 at 75 Hz 1024 x 768 at 60, 65, 72 or 75 Hz 832 x 624 at 75 Hz 800 x 600 at 56, 60 or 72 Hz 720 x 400 at 70 Hz 720 x 350 at 70 Hz 640 x 480 at 60, 66 or 72 Hz
Colors	16.7 million
Brightness	LCD panel: 300 cd/m² (typical) with APR: 270 cd/m² (typical) with IntelliTouch: 270 cd/m² (typical)
Response time	5 msec (typical)
Viewing angle (typical, from center)	Horizontal (left/right): ±80° or 160° total Vertical (up/down): ±80° or 160° total
Contrast ratio	1000:1 (typical)
Input video format	RGB analog video; DVI video (Standard European models without DVI)
Input sync format	Separate horizontal and vertical sync, composite sync and sync-on-green
Input video signal connector	15-pin female D-Sub for analog video; female DVI-D for digital video
Input frequency	Horizontal: 30-83 kHz Vertical: 56-76 Hz
Power supply	Internal monitor input voltage: 100-240 VAC, 50/60 Hz External monitor input voltage: 12 VDC ±5%
Power draw	70W max., 38.2W typical (at 120V/60Hz) 70W max., 32.6W typical (at 12Vdc)
Temperature	Operating: 0°C to 40°C (32°F to 104°F) Storage: -20°C to 60°C (-4°F to 140°F)
Humidity	Operating: 20%-80% Storage: 10%-90% noncondensing
Altitude	Operating: 0 to 3658 m (12,000 ft) Non-operating: 0 to 12192 m (40,000 ft)
Weight with stand (approx.)	Actual: 19.9 lb (9.03 kg) Shipping: 26.8 lb (12.15 kg)
Weight without stand (approx.)	Actual: 13.16 lb (5.97 kg)
Warranty	Monitor: 3 years Backlight lamp life: 40,000 hours min. MTBF (excluding lamps): 50,000 hours demonstrated
Agency approvals	North America/Worldwide: USA UL, Canada cUL, Mexico NOM, CB South America: Argentina S-mark EMEA: Russia PCT, Germany GS Asia: Australia C-Tick, China CCC, Japan VCCI, Koreak eK, Korea MIC, Taiwan BSMI Elo Declarations: RoHS, China RoHS, WEEE, IMERC, CE
Speakers	Two 2W internal speakers
Audio input connector	3.5mm TRS jack
Headphone output connector	3.5mm TRS jack
On-screen display (OSD)	Digital OSD
User's controls	OSD buttons: menu, up, down, select, power OSD: automatic adjustment, contrast, brightness, H/V position, clock, phase, fill screen, color temperature, input video select, OSD H/V position, OSD timeout, language (English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese), recall defaults, sharpness, volume, mute, input video select OSD disable/enable: power, OSD
Mounting options	Removable base Threaded-through mounting holes, under base 100 mm VESA mount
Other features	Security lock receptacle Can be used in portrait or landscape mode
