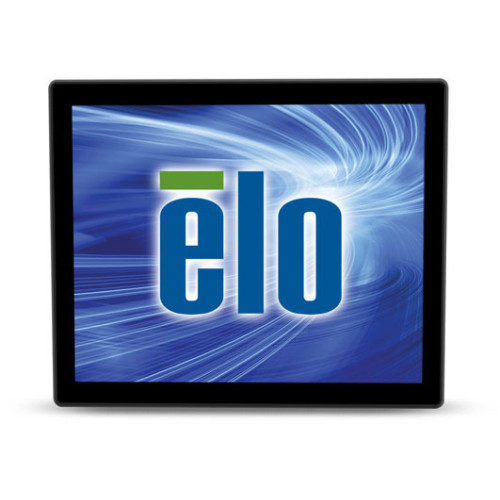

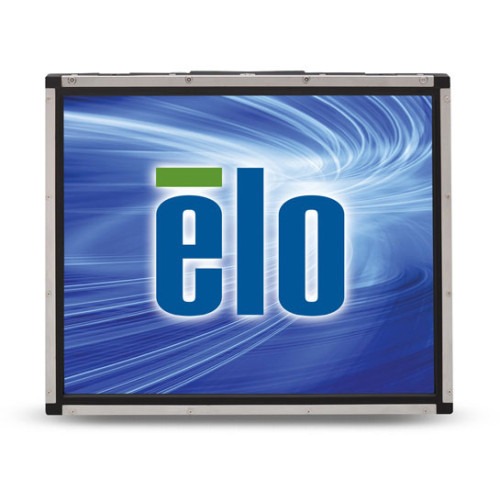

Elo 1931L Touchscreen

Elo 1931L Touchscreen

The 1931L 19" LCD open-frame touchmonitor delivers high performing touch solutions for OEM's and systems integrators, and complement the large family of Elo touch solutions for applications in the retail self-service and gaming/amusement markets. These compact touchmonitors are "designed for touch" with proven Elo expertise and reliability built in, not added later by altering an existing monitor.
Model 1939L and 1931L Diagonal Size 19.0" Aspect Ratio 5:4 Display Technology Active matrix TFT LCD with LED backlight Useful Screen Area Horizontal: 14.8" (376 mm)
Vertical: 11.9" (301 mm) Native (Optimal) Resolution 1280 x 1024 Other Supported Resolutions 1280 x 1024 at 60, 70 or 75 Hz
1280 x 960 at 60 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65 (Sun), 70 or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 (Mac), 72 or 75 Hz
512 x 247 at 60 Hz
512 x 256 at 60 Hz Colors 16.7 million Brightness
(Typical) LCD panel: 250 nits
AccuTouch: 200 nits
IntelliTouch: 225 nits
IntelliTouch Plus: 225 nits
SecureTouch: 220 nits
IntelliTouch Zero-Bezel / iTouch: 225 nits
IntelliTouch Pro: 225 nits Response Time - Total (Typical) 14 ms Viewing Angle Help on this topic
(Typical) Horizontal: ±89° or 178° total
Vertical: ±89° or 178° total Contrast Ratio (typical) 1000:1 On-Screen Display (OSD) Controls (optional remote with 1.8m cable): Auto/Sel, up, down, menu
Controls (back): menu, left, right, select, power
Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall
Languages: English, German, Spanish, Japanese, French
Lockouts: power, user controls
Extended Details
Refine Your Options
  1. Elo E000391 Touchscreen
    Part #: E000391 | SKU: ELO309603

    Elo 1931L 19" Open-frame LCD Touchscreen Monitor - 5:4 - 35 ms - 19" Class - Projected CapacitiveMulti-touch Screen - 1280 x 1024 - SXGA - 16.7 Million Colors - 1,300:1 - 250 Nit - LED Backlight - DVI - USB - VGA - Black - China RoHS - 3 Year
