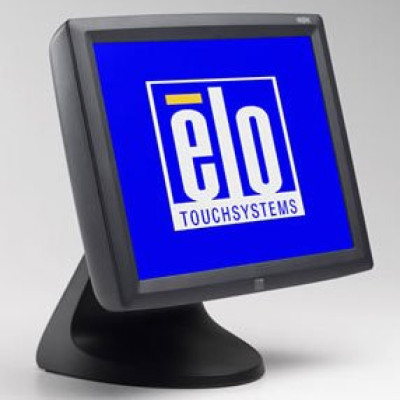

Elo Entuitive 1529L Touchscreen

Elo's 1529L touchcomputer expands the company's high profile family of reliable, easy-to-integrate multifunction touch solutions. The silent, fanless 1529L integrates an all-in-one touchcomputer within the footprint of a 15 inch LCD monitor. The retail-rugged 1529L has been designed for touch from the ground up, with such features as spill-resistant sealing, a short stable tilt base that is removable or reversible for wall mounting, and a choice of Elo touch technology as well as color. The Microsoft Windows 2000 and XP Professional versions of the 1529L touchcomputer include a hard drive, the Windows CE .NET and Windows XP Embedded versions have solid-state components with no moving parts. Options include a magnetic stripe reader (MSR) and rear-facing customer display. Elo's 1529L touchcomputer offers a wide range of connectivity, including USB and legacy serial ports. Applications for the new all-in-one touchcomputer include loyalty systems, kiosk information systems, POS, casino management, cash systems, and Internet access points such as those for Web surfing and hotel reservations.

Discontinued - Need Assistance

See all options

Specs & Info
All Options

Elo Entuitive 1529L Specs (pdf)

Multifunction 15" LCD Desktop Touchmonitor (3000 Series)

Features

Higher brightness, better contrast, and wider viewing angle than most 15" LCDs
"Designed for touch" features such as a stable tilt base
Available with AccuTouch Five-Wire Resistive Technology (activated with fingernails, gloves, credit cards, or any stylus) or, for the ultimate in optics, IntelliTouch Surface-Wave Technology or CarrollTouch Infrared Technology
Optional ergonomic 3 stripe MSR available in two versions: USB with keyboard emulation; and USB with human interface driver (HID) class specification 1.1
Optional rear-facing customer display available as either a 20x2 USB vacuum fluorescent display (VFD) or a 12.1" LCD monitor with or without touch.
Optional biometric fingerprint recognition device
USB hub available on certain configurations
Choice of gray or beige finish, as well as short or tall monitor stand
Single power supply for all optional devices
Cables hidden from user's view
Built-in speakers located in display head
Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
Mounting holes on base bottom for tabletop security
Base removable, VESA mounting option
Controls on the side rather than the front, plus lockout function for public use
Sealed touchscreen; CarrollTouch version features a seamless watertight seal due to its unique co-molded construction
Diagnostic LEDs for touch and video
Long-lasting product cycle
Worldwide agency approvals

Specifications

Model
Series	3000
Availability	Worldwide
Case/Bezel color	Dark gray or beige
Base	Short or tall stand
Display	Size: 15" diagonal Type: Active matrix TFT LCD Aspect ratio: 4 x 3
Useful screen area	Horizontal: 11.98" (304 mm) Vertical: 8.98" (228 mm)
Monitor dimensions (max, with short stand)	Width: 13.99" (355 mm) Height (inc. base): 11.27" (286 mm) Depth (inc. base): 10.44" (265 mm) Dimensions vary with stand type and position
Optimal (native) resolution	1024 x 768
Other supported resolutions	1024 x 768 at 60, 65, 70 or 75 Hz 832 x 624 at 75 Hz 800 x 600 at 56, 60, 72 or 75 Hz 720 x 400 at 70 Hz 720 x 350 at 70 Hz 640 x 480 at 60, 66 Hz (Mac), 72 or 75 Hz
Colors	16.2 million colors, 6 bit with dithering
Brightness LCD panel	350 cd/m² (typical)
Brightness LCD panel with touchscreen	AccuTouch: 287 cd/m² (typical) CarrollTouch: 322 cd/m² (typical) IntelliTouch: 322 cd/m² (typical)
Response time	25 msec (typical)
Viewing angle (typical, from center)	Horizontal (left/right): ±75° or 150° total Vertical (up/down): 75°/50° or 125° total
Contrast ratio	400:1
Power dissipation	30 W typical
Input video format	RGB analog; DVI-D
Input video signal connector	Mini D-Sub 15-Pin VGA type; DVI-D connector
Input frequency	Horizontal: 31E0 kHz Vertical: 56E5 Hz
Power supply	Type: AC/DC input internal power supply AC input (line) voltage: 85E65 VAC, 47E3 Hz. DC input (line) voltage: 12.0V ± 0.75V Power: 50 W max.; only AC power cable supplied; 12V power supply optional
Temperature	Operating: 0°C to 40°C Storage: -20°C to 60°C
Humidity	Operating: 20E0% Storage: 5E5% noncondensing
Weight (approx., with all options)	Actual: 14.44 lb (6.55 kg) Shipping: 21.16 lb (9.60 kg)
Warranty	Monitor: 3 years Backlight lamp life: min 40,000 hours to half brightness
Agency approvals	UL/cUL (*recognized component), FCC-A, TÜV-GS, CE, VCCI, C-Tick
Speakers	Two watt/channel speakers located in display head
On-screen display (OSD)	OSD lockouts for power and user controls
User's controls	OSD control menu: menu, up, down, select, power OSD controls: contrast, brightness, V-position, H-position, RGB, volume, YUV, phase, clock, OSD H-position, OSD V-position, OSD time, auto adjust, OSD language (English, French, German, Spanish, Japanese), input select OSD disable/enable: power, OSD menu
Mounting options	75 mm VESA mount Removable base
Other features	ENERGY STAR 2 stage DPMS VESA DDC Plug and Play Kensington lock

Optional Peripherals

LCD Customer Display

Colors	16.2 million colors, 6 bit with dithering
Optimal resolution	800 x 600
Brightness LCD panel	180 cd/m²
Brightness LCD panel with touchscreen	IntelliTouch: 166 cd/m²
Contrast ratio	150:1
Useful screen area	Horizontal: 9.69" (246 mm) Vertical: 7.26" (184.5 mm)
Input video format	RGB analog
Input video signal connector	Mini D-Sub 15-Pin VGA Type

VFD Customer Display

Type	Vacuum Fluorescent Display (VFD), 2 rows, 20 characters/row
Characters	5 x 7 dot matrix configuration, 9.5 mm height, 6.2 mm width, pixel addressable
Format/color	ASCII/blue-green

Fingerprint Reader

Type	Optical
Verifying time	<1 sec
Sensing prism hardness	7 Mohs
Resolution	356 x 292 pixels
Image speed	Capture: 600 ms/frame Transfer: 500 bytes/ms
Image capture error rate	<0.1%

Magnetic Stripe Reader

Tracks	3
Message format	ASCII
Card speed	3 to 50 inch/sec (7.6 to 127 cm/sec)
