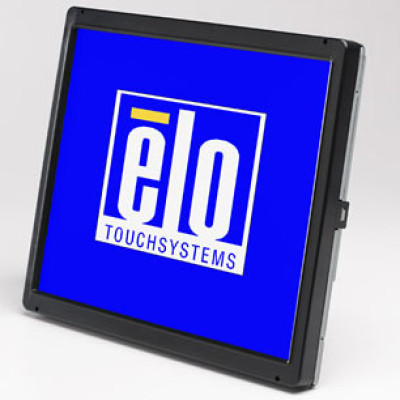

Elo Entuitive 1746L Touchscreen Monitor

The Elo Entuitive 1746L has been discontinued. No direct replacement is available.
Please contact us for a suitable substitute.

Watertight Seals make the Entuitive 1746L Spill-Proof

The Elo Entuitive 1746L features an integrated precision minibezel with a watertight 0.5 mm seal. Elo Entuitive 1746L uses IntelliTouch Surface Wave touch technology with both serial and USB touch interface, and features a multilingual remote on-screen display (OSD). Mounting options include rear-mount and VESA mount.

The Elo Entuitive 1746L is also known as the Elo Touch Systems Entuitive 1746L

Entuitive 1746L Options
Recommended Accessories
Elo Accessories (E005277)
Accessories, Power supply - Compatibel with 1517L, 1739L, 1729L, 1939L, and 2244L
In Stock: Ships Today
$28.90
+ Add to Quote
Elo (D82064-000)
Stylus (for IntelliTouch Monitors)
In Stock: Ships Today
$22.60
+ Add to Quote
Elo (E177037)
Magnetic Strip Reader for 1515L touchsystems, Gray, Field Installable
In Stock: Ships Today
$60.30
+ Add to Quote
Elo 1529L Accessories (E252977)
1529L Accessories, Short stand for 1529L
In Stock: Ships Today
$46.80
+ Add to Quote
Elo (E042259)
AC Power Cable - 6 feet (1.8M) - Compatible with ELO Power Brick
In Stock: Ships Today
$21.50
+ Add to Quote

Elo Entuitive 1746L Details

Entuitive 1746L 17" LCD Rear-Mount Touchmonitor (1000 Series)

Features

  • Long lasting product cycle—enclosure controlled by Elo specifications
  • Panel upgrades possible to the model in the future without external changes
  • Integrated precision minibezel with watertight 0.5 mm seal
  • Mounting options including rear-mount and VESA mount
  • IntelliTouch Surface Wave touch technology with dual serial/USB touch interface
  • Multilingual remote on-screen display (OSD)
  • Worldwide agency approvals
  • 3-D electronic design files available

Specifications

Model Entuitive 1746L
Series 1000
Availability Worldwide
Case/Bezel color Steel/black
Display Size: 17.0" diagonal
Type: Active matrix TFT LCD
Useful screen area Horizontal: 13.3" (338 mm)
Vertical: 10.6" (270 mm)
Monitor dimensions Width: 15.4" (371 mm)
Width with brackets: 15.4" (391 mm)
Height: 12.4" (315 mm)
Height with brackets: 13.2" (335 mm)
Depth: 2.1" (53 mm)
Optimal (native) resolution 1280 x 1024
Other supported resolutions 1280 x 960 at 60 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65 (Sun), 70, or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72, or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 Hz (Mac), 72, or 75 Hz
Colors 16.2 million with dithering, 6 bit per color data
Brightness
LCD panel
260 cd/m2 (typical)
Brightness
LCD panel with touchscreen
IntelliTouch: 239 cd/m2 (typical)
Response time 25 msec (typical)
Viewing angle
(typical, from center)
Horizontal (left/right): ±70° or 140° total
Vertical (up/down): ±70° or 140° total
Contrast ratio 450:1 (typical)
Input video format Analog (no proprietary video card needed)
Input sync format Separate horizontal and vertical sync, composite sync and sync-on-green
Input video signal connector Mini D-Sub 15-Pin
Input frequency Horizontal: 31.5E0 kHz
Vertical: 56.3E5 Hz
Power supply Type: External power supply, 100E40 VAC, 50E0 Hz
Monitor input voltage: 12 VDC
Current: 4.16A max.
Power dissipation 50 W max.
Temperature Operating: 0°C to 40°C
Storage: -20°C to 60°C
Humidity Operating: 20%E0%
Storage: 10%E0%
noncondensing
Weight
(approx.)
Actual: 11 lb (5.0 kg)
Shipping: 19 lb (8.6 kg)
Warranty Monitor: 1 year
Backlight lamp life: typical 40,000 hours to half brightness
Agency approvals UL, cUL, FCC, IC, CE, TÃœV-GS, VCCI, C-Tick
On-screen display (OSD) Remote OSD with 1.8m cable
User's controls Remote OSD: Auto/Sel, down, up, menu
OSD: contrast, brightness, H/V position, color temperature, clock, phase, recall,  language (English, German, Spanish, Japanese, French)
OSD disable/enable: power
Mounting options 100 mm or 75 mm VESA mount
Rear mount from top/bottom or left/right
Brackets included
