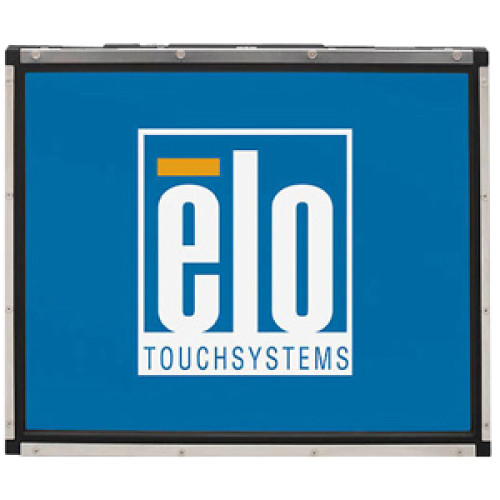

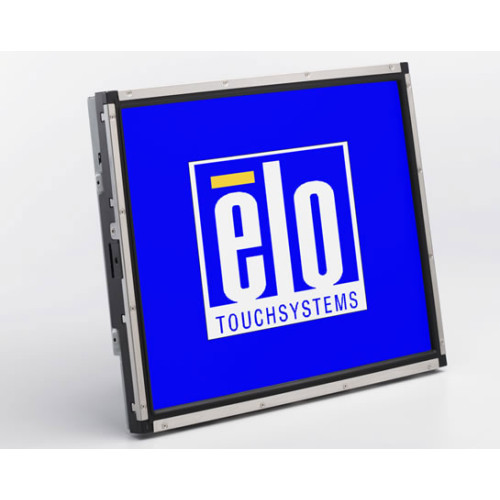

Elo E012584 Touchscreen
Part #: E012584 | SKU: ELO83026

Elo's chassis LCD monitors have a long-lasting product cycle because the enclosure is controlled by Elo's specifications. Future panel improvements are therefore possible without external changes. The 1739L features a wide viewing angle panel along with a unique, injection-molded minibezel and virtually invisible watertight seal. Available with clear glass IntelliTouch surface wave for the utmost in optical quality.

Elo E012584 Touchscreen

Part Details: Elo 1739L 17" Open-frame LCD Touchscreen Monitor - 5:4 - 7.20 ms - 17" Class - Surface Acoustic Wave - 1280 x 1024 - SXGA - 16.7 Million Colors - 1,000:1 - 300 Nit - USB - VGA - Steel, Black - 3 Year

Additional Information

Color Black
Display Type LCD
Form Factor Rear Mount
Manufacturer Elo
Model Name 1739L

Technical Information

  • Horizontal Viewing Angle: 160°
  • Vertical Viewing Angle: 160°
  • Screen Mode: SXGA
  • Screen Size: 17"
  • Aspect Ratio: 5:4
  • Response Time: 7.20 ms

General Information

  • Product Type: Open-frame LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 1739L
  • Product Name: 1739L Open-frame Touchscreen LCD Monitor

Physical Characteristics

  • VESA Mount Compatible: Yes
  • Height: 12"
  • Width: 14.5"
  • Depth: 1.9"
  • Color:
    • Steel
    • Black
  • Weight (Approximate): 8.80 lb

Interfaces/Ports

  • USB: Yes
  • VGA: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Package Contents:
    • 1739L Open-frame Touchscreen LCD Monitor
    • Touch Cable
    • Video Cable
    • 2 x Standard ("L") Mounting Brackets
    • 1739L Open-frame Touchscreen LCD Monitor
    • Touch Cable
    • Video Cable
    • 2 x Standard ("L") Mounting Brackets

Video

  • Standard Refresh Rate: 75 Hz
  • Brightness: 300 Nit
  • Color Supported: 16.7 Million Colors
  • Maximum Resolution: 1280 x 1024
  • Contrast Ratio: 1,000:1

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: Surface Acoustic Wave

Power Description

  • Operating Power Consumption: 30 W
  • Input Voltage: 12 V DC

Warranty

  • Limited Warranty: 3 Year
Extended Details
