Elo E107085 Digital Signage Display
Part #: E107085 | SKU: ELO217768

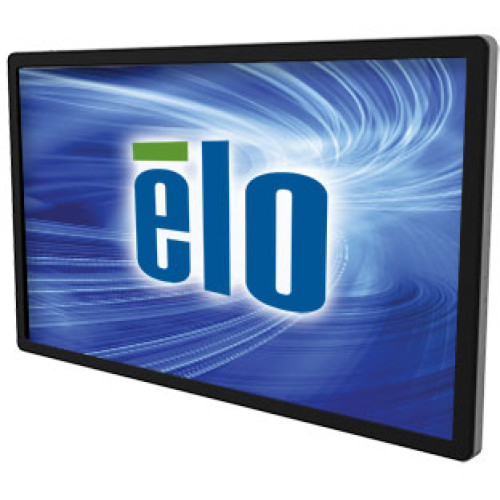

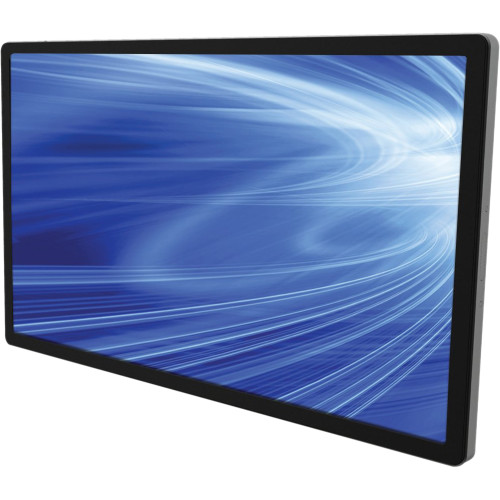

Elo’s new 4201L 42-inch interactive digital signage touch screen delivers a professional-grade large format display in a slim, integrated package. Designed from the bottom up for retail, hospitality, healthcare and other commercial markets, the Elo IDS is a high-quality, interactive canvas for attracting and engaging consumers. The 4201L offers system integrators and value-added resellers (VARs) a high performance solution that is easy to deploy and maintain in public environments. With a total thickness of 3.2 inches (81 mm), the 4201L is compliant with ADA and IBC requirements of less than 4-inch protrusion for wall-mounted products when used with a compatible wall-mount.

Elo E107085 Digital Signage Display

Part Details: Elo 4201L 42" LCD Touchscreen Monitor - 16:9 - 6 ms - 42" Class - OpticalMulti-touch Screen - 1920 x 1080 - Full HD - 16.7 Million Colors - 4,000:1 - 700 Nit - LED Backlight - Speakers - HDMI - USB - VGA - DisplayPort - Black - RoHS, China RoHS

Need a different version of the Elo 4201L Digital Signage Display? View all 4 configurations

Additional Information

Manufacturer	Elo
Model Name	4201L

Elo 4201L Specs (pdf)

Technical Information

HDCP Supported: Yes
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Backlight Technology: LED
Screen Mode: Full HD
Features: Digital Signage Ready
Mount Type:
- Wall Mountable
- Desk Mountable
Screen Size: 42"
Aspect Ratio: 16:9
Response Time: 6 ms

General Information

Product Type: LCD Touchscreen Monitor
Brand Name: Elo
Manufacturer: Elo Touch Solutions, Inc
Product Model: 4201L
Product Name: 4201L 42-inch Interactive Digital Signage Display (IDS)

Physical Characteristics

VESA Mount Compatible: Yes
VESA Mount Standard: 400 x 400
Height: 23.1"
Width: 39.2"
Depth: 3.2"
Color: Black
Weight (Approximate): 52.40 lb

Interfaces/Ports

USB: Yes
HDMI: Yes
VGA: Yes
DisplayPort: Yes
Headphone: Yes

Video

Brightness: 700 Nit
Color Supported: 16.7 Million Colors
Maximum Resolution: 1920 x 1080
Contrast Ratio: 4,000:1

Touchscreen Information

Touchscreen: Yes
Multi-touch Screen: Yes
Touchscreen Type: Optical

Power Description

Operating Power Consumption: 85 W
Standby Power Consumption: 14 W
Off-Mode Power Consumption: 2 W

Built-in Devices

Built-in Devices: Speaker

Audio

Speakers: Yes

Other

Platform Supported: PC

Extended Details
