The 22″ I-Series Steel blends rugged protection, high-brightness visuals and enterprise-grade software into one polished package. Running Android 14 with GMS out of the box and fully manageable via EloView, it supports in-field OS 360 updates to Android 16/18 so your software stays current. A Qualcomm QCS6490 eight-core processor, 8 GB of LPDDR5 memory and 64 GB of internal storage make light work of POS, inventory, HMI or digital menu applications. The 21.5″ PCAP touchscreen (1,920×1,080 @ 60 Hz) handles ten-finger, glove or stylus input, and its bonded IPS display pushes 350 nits with an additional 300 nit touch layer—ensuring perfect legibility from floor to ceiling.

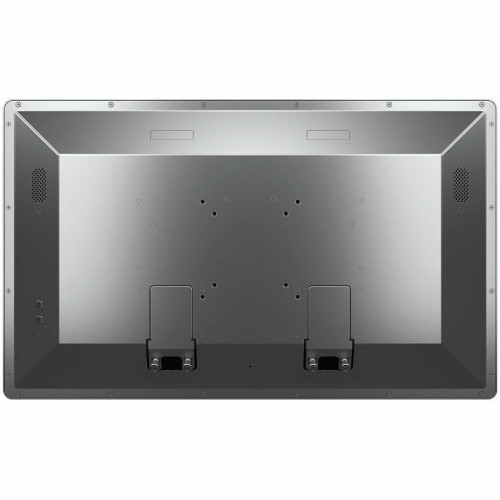

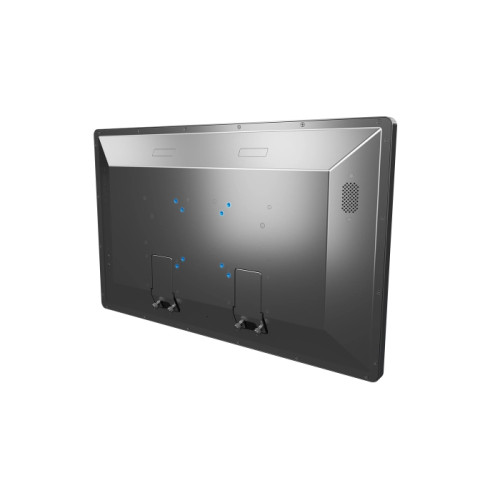

Constructed from food-grade 304 stainless steel, the enclosure is IP65 rated on the user side and IP54 sealed from behind. Rounded corners, flush-mounted glass and sealed M12 cable glands banish ingress of dust, grime, cleaning fluids or harsh detergents. Power-over-Ethernet (802.3at/af up to 51 W) carries all power, data and video over one cable, while universal VESA 75×100 mm mounts let you deploy on walls, pillars or articulating arms without extra hardware. IK06 drop and impact-rating plus internal metal bosses guarantee unmatched durability under heavy use.
Key Features:
- Android 14 + GMS, centrally managed via EloView; field-upgradeable to Android 16/18 via OS 360
- 21.5″ PCAP touchscreen + bonded IPS panel (350 nits) + 300 nit touch sensor for daylight-readable UI
- Stainless-steel IP65/IP54 housing w/ sealed M12 cable glands, dishwasher-safe design
- Single-cable 51 W PoE (802.3at/af) for power, data & video over Ethernet
- 75×100 mm VESA, IK06 impact resistance, rounded-corner hygienic styling
Industries:
- Food & Beverage Processing: Wash-down-safe terminals in dairy, meat, and beverage lines
- Pharmaceutical & Laboratories: Chemical-resistant consoles in R&D and QA labs
- Industrial & Utilities: EMI-immune operator panels at substations, water treatment, refineries
- Retail & QSR: Bright, interactive kiosks and digital menu boards in high-traffic spaces
Each version delivers an extended, in-depth look at the 22″ I-Series Steel’s specs, rugged sealing, PoE simplicity and industry-specific applications—empowering IT and operations teams to confidently deploy in any demanding environment.
Elo 22-inch I-Series Steel Specs
