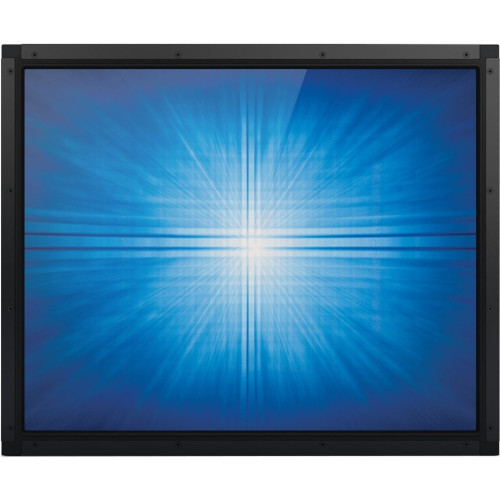

Elo 1990L Open-Frame Touchscreen
Part #: E328497 | SKU: ELO458862

Introducing the Elo 1990L 19-inch open frame touchscreen display that delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators that require a reliable product for their customers. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare. The Elo 1990L 19-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Elo 1990L Open-Frame Touchscreen

Part Details: 19" Touchscreen Monitor - Elo 1990L - Open-Frame LCD - 5:4 Aspect Ratio - IntelliTouch Single-Touch - 1280 x 1024 SXGA - 16.7 million Colors - 225 nits Brightness (typical) - LED Backlight - 1000:1 Contrast Ratio (typical) - HDMI - VGA & Display Port Video Interface - Dual Serial/USB Touch Controller Interface - Clear - Bezel - “L” (Side Mount) Brackets - Black - 3-Year Warranty - No Power Brick - RoHS - China RoHS - WEEE - Worldwide. Box Includes HDMI Cable (Part# E538507) - VGA Cable - RJ45 OSD Remote (Part# E483757) - Touch USB Cable (Part# E546861) - Quick Install Guide - “L” (Side Mount) Brackets and w/ Screws (Part# E163604) - EEI Label - Japan Class-B TM info sheet.

Need a different version of the Elo 1990L Open-Frame Touchscreen? View all 4 configurations

MSRP: $614.00 Price: $583.30

Additional Information

Display Type	LCD
Form Factor	Open-Frame
Interface	RS-232 Serial, USB
Manufacturer	Elo
Model Name	1990L Open-Frame
Product Condition	New
Screen Size	19

Elo 1990L Open-Frame Specs (pdf)
