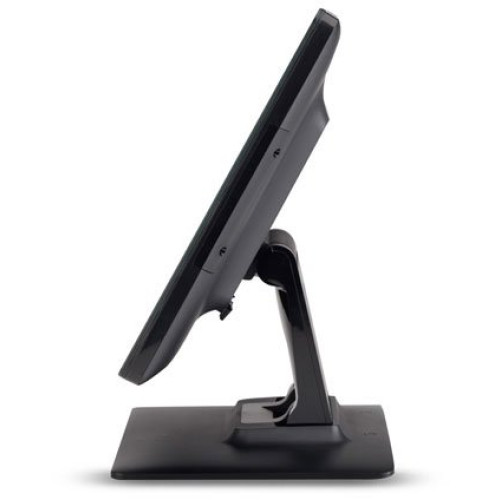

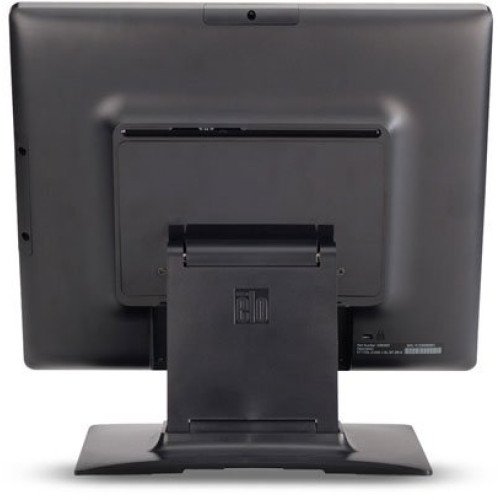

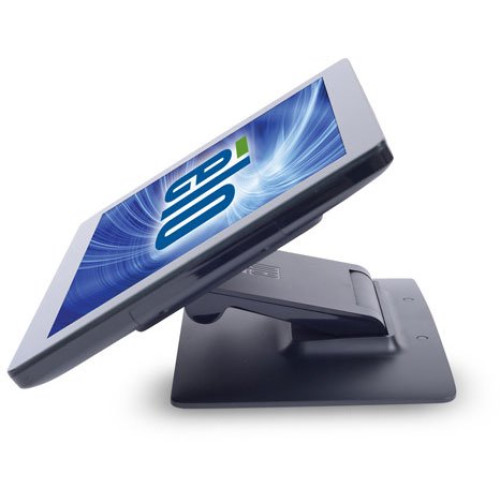

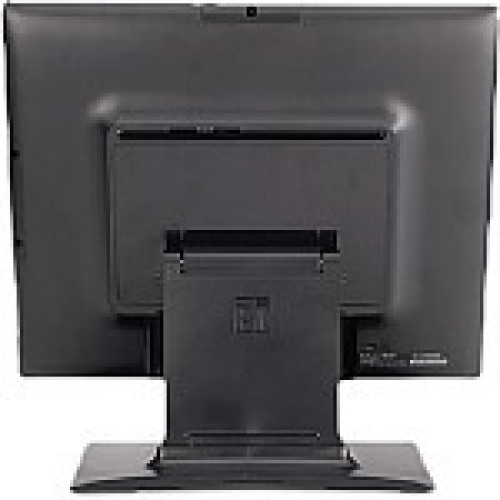

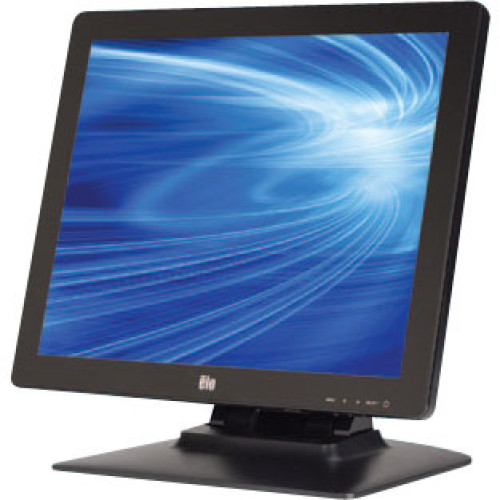

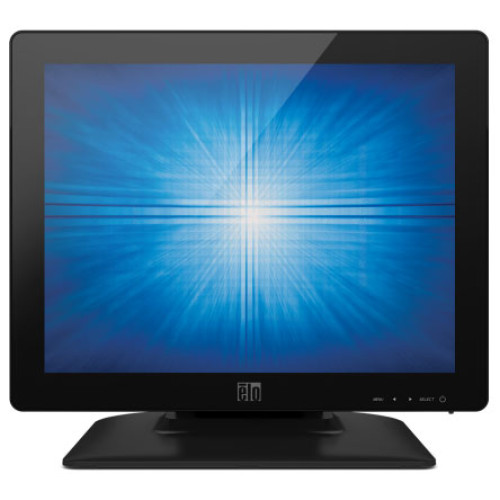

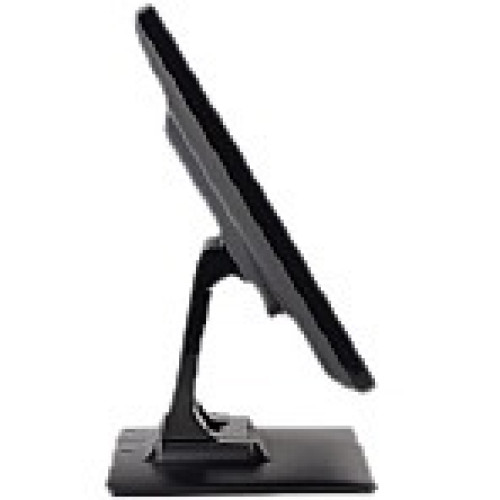

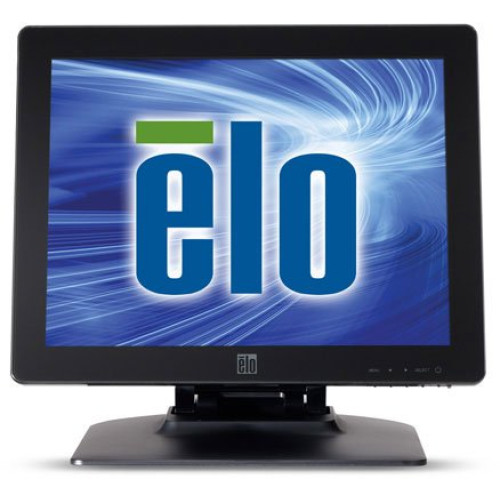

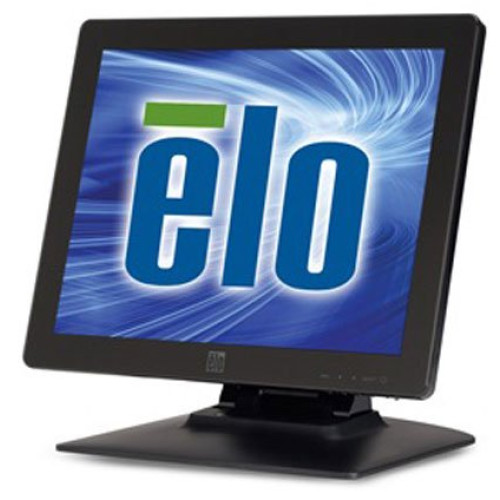

Elo E394454 Touchscreen
Part #: E394454 | SKU: ELO221711

Introducing the Elo 1523L 15-inch standard format touchscreen monitor that is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions. The sleek, edge-to-edge glass design of the 1523L brings a clean, modern feel to any environment. The zero-bezel touch monitor is available in both black or white with Elo's industry-leading touch technologies, both providing a stable drift-free operation with outstanding image clarity, resolution and light transmission - for an accurate touch response and vivid images. The 15-inch monitor offers a choice of two industry leading Elo touchscreen technologies. Both enable multi touch functionality, with a seamless zero-bezel display. IntelliTouch surface acoustic wave (SAW) zero-bezel delivers the ultimate in optical quality for dry retail and hospitality applications. For a 10-touch tablet like experience, TouchPro PCAP offers a clean edge-to-edge glass design perfect for multi-user interaction with fast and extremely sensitive responses right out of the box. The multiple mount and stand options for the 1523L ensures installation flexibility and accommodates tabletop use as well as wall- and pole-mount in portrait and landscape via standard VESA mount patterns. The dual position stand offers a single hinge design with high/low settings and tilt functionality. The 15-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by a three-year standard warranty.

Elo E394454 Touchscreen

Part Details: 15" Touchscreen Monitor - Elo 1523L - Desktop LCD - 4:3 Aspect Ratio - IntelliTouch ZB Dual-Touch - 1024 x 768 - 16.2 million Colors - 270 nits Brightness (typical) - LED Backlight - 800:1 Contrast Ratio (typical) - VGA & DVI Video Interface - USB Touch Controller Interface - Anti-Glare - Zero-Bezel - Stand - Black - 3-Year Warranty - Speakers - Adjustable Display Angle - Worldwide. Box Includes Quick Install Guide - Japan Class-B TM Info Sheet - User Manual CD - 50W Power Brick (Part# E005277) - Power Cable (Part# E378229) - IEC 60320-C13 to NA/EU Plug - DVI-D Cable - VGA Cable (DB-15 Male to DB-15 Male) - USB Cable (Type A plug to Type B plug) - Audio Cable - Stand Base Assembly - Filler Plate (Part# E000448),
In Stock

Additional Information

Manufacturer Elo
Model Name 1523L

Technical Information

  • Horizontal Viewing Angle: 160°
  • Vertical Viewing Angle: 140°
  • Adjustable Display Angle: Yes
  • Adjustable Display Height: Yes
  • Features:
    • Security Lock
    • Water Proof
    • Cable Management
  • Mount Type:
    • Desk Mountable
    • Wall Mountable
  • Screen Size: 15"
  • Aspect Ratio: 4:3
  • Response Time: 25 ms
  • Screen Surface:
    • Anti-glare
    • Anti-scratch

General Information

  • Product Type: LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 1523L
  • Product Name: 1523L Multifunction 15-Inch Desktop Touchmonitor

Physical Characteristics

  • Weight with Stand (Approximate): 9.79 lb
  • VESA Mount Compatible: Yes
  • VESA Mount Standard: 75 x 75
  • Height with Stand: 7.83"
  • Width with Stand: 14.09"
  • Depth with Stand: 12.52"
  • Color: Black
  • Weight (Approximate): 5.84 lb

Interfaces/Ports

  • USB: Yes
  • DVI: Yes
  • VGA: Yes

Other

  • Certifications & Standards:
    • UL/cUL
    • FCC-A
    • Semko
    • CE
    • VCCI
    • C-Tick
    • UL/cUL
    • FCC-A
    • Semko
    • CE
    • VCCI
    • C-Tick
  • Package Contents:
    • 1523L Multifunction 15-Inch Desktop Touchmonitor
    • Touch Cables
    • Video Cables
    • 1523L Multifunction 15-Inch Desktop Touchmonitor
    • Touch Cables
    • Video Cables
  • Platform Supported: PC

Video

  • Standard Refresh Rate: 60 Hz
  • Brightness: 250 Nit
  • Color Supported: 16.2 Million Colors
  • Maximum Resolution: 1024 x 768
  • Contrast Ratio: 700:1

Power Description

  • Operating Power Consumption: 12 W
  • Input Voltage:
    • 110 V AC
    • 220 V AC

Built-in Devices

  • Built-in Devices:
    • USB Hub
    • Speaker

Touchscreen Information

  • Touchscreen: Yes
  • Multi-touch Screen: Yes
  • Touchscreen Type: Surface Acoustic Wave

Warranty

  • Limited Warranty: 3 Year

Audio

  • Speakers: Yes
Extended Details
