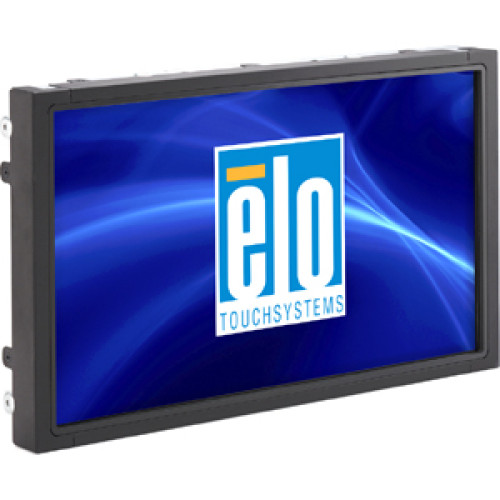

Elo E805638 Touchscreen
Part #: E805638 | SKU: ELO175558

The ELO 1541L features an LED backlight, a wide-screen16:9 aspect ratio LCD panel with the choice of either IntelliTouch Plus multi-touch or AccuTouch 5-wire resistive touchscreen. The 1541L expands the ELO family of touch solutions with flexible, energy-saving features.

Elo E805638 Touchscreen

Part Details: Elo 1541L 15" Open-frame LCD Touchscreen Monitor - 16:9 - 16 ms - 15" Class - 5-wire Resistive - 1366 x 768 - WXGA - 16.7 Million Colors - 500:1 - 250 Nit - LED Backlight - DVI - USB - VGA - RoHS, China RoHS, WEEE - 3 Year

Need a different version of the Elo 1541L Touchscreen? View all 2 configurations

Additional Information

Manufacturer	Elo
Model Name	1541L

Elo 1541L Specs (pdf)

Technical Information

Horizontal Viewing Angle: 170°
Vertical Viewing Angle: 130°
Backlight Technology: LED
Screen Mode: WXGA
Screen Size: 15"
Aspect Ratio: 16:9
Response Time: 16 ms
Screen Surface: Anti-glare

General Information

Product Type: Open-frame LCD Touchscreen Monitor
Brand Name: Elo
Manufacturer: Elo Touch Solutions, Inc
Product Model: 1541L
Product Name: 1541L 15-inch LCD Open-frame Touchmonitor

Physical Characteristics

VESA Mount Compatible: Yes
VESA Mount Standard: 75 x 75
Height: 8.7"
Width: 14.8"
Depth: 1.8"
Weight (Approximate): 6.48 lb

Interfaces/Ports

USB: Yes
DVI: Yes
VGA: Yes

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- RoHS
- China RoHS
- WEEE
Certifications & Standards:
- C-Tick
- cUL
- IC
- CCC
- CE
- VCCI
- KCC
- CoC
- BSMI
- UL
- FCC
- CB
- IMERC
- C-Tick
- cUL
- IC
- CCC
- CE
- VCCI
- KCC
- CoC
- BSMI
- UL
- FCC
- CB
- IMERC

Power Description

Operating Power Consumption: 15 W
Standby Power Consumption: 2 W
Off-Mode Power Consumption: 1 W
Input Voltage:
- 110 V AC
- 220 V AC

Video

Standard Refresh Rate: 60 Hz
Brightness: 250 Nit
Color Supported: 16.7 Million Colors
Maximum Resolution: 1366 x 768
Contrast Ratio: 500:1

Touchscreen Information

Touchscreen: Yes
Touchscreen Type: 5-wire Resistive

Warranty

Limited Warranty: 3 Year

Extended Details
