Epson B133111 Customer Display
Part #: B133111 | SKU: EPS21083

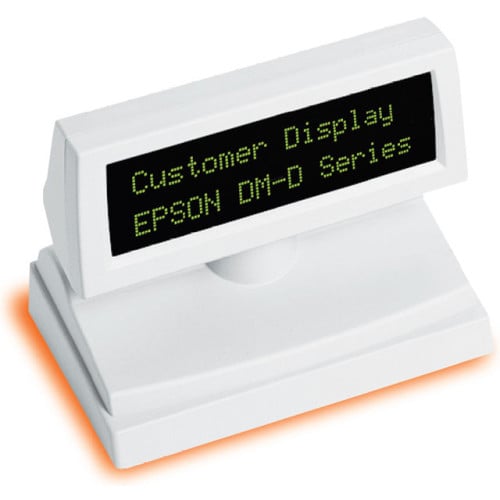

The DM-D101II is an inconspicuous yet easy-to-read Display. The 20-column 2-line Display shows customers a significant amount of data. Its panel can be adjusted to ensure the best viewing angle and visibility and height can be altered by replacing the standard support with an optional one. The DM-D101II is supported by the ESC-POS command set and thanks to a pass-through function the DM-D101II can control the Printer. Especially well suited to specialty stores and restaurants this Display offers excellent utility and value.

Epson B133111 Customer Display

Part Details: Epson DM-D110 Customer Display - Green - VFD - 20 x 2 - Serial

Need a different version of the Epson DM-D110 Customer Display? View all 8 configurations

Additional Information

Manufacturer AIDC	Epson
Model Name	DM-D110

Epson DM-D110 Specs (pdf)

General Information

Product Type: Pole Display
Brand Name: Epson
Manufacturer: Epson Corporation
Product Model: DM-D110
Product Name: DM-D110 Customer Display

Physical Characteristics

Color: Gray

Interfaces/Ports

Interfaces/Ports: RS-232 Serial

Display & Graphics

Number of Lines: 2
Dot Matrix Layout: 5 x 7
Character Width: 0.14"
Character Height: 0.20"
Display Color: Green
Display Type: VFD
Number of Columns: 20
Character Pitch: 0.20"
Brightness: 690 Nit

Other

Certifications & Standards:
- EMC:
- VCCI Class A
- FCC Class A
- CE
- Safety:
- UL
- CSA
- TÜV (EN60950)

Fonts & Emulation

Font Type:
- Alphanumeric
- International
- Graphic

Memory

Buffer: 80 Byte

Power Description

Input Voltage Range: 11.4 V DC to 48 V DC

Reliability

MTBF: 20000 Hour
