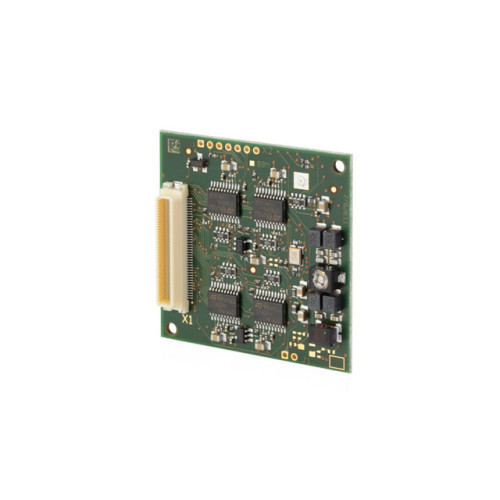

FEIG ID CPR60 RFID Reader

The FEIG ID CPR60 is a 4 x 4 cm small RFID reader that supports contactless smart cards and transponders according to ISO/IEC 14443 A/B and ISO 15693. The ID CPR60 also offers interfaces for up to 4 smart card connectors according to ISO 7816 and is therefore suitable for ticket applications in public transport (VDV-KA). For host communication, the ID CPR60 offers a USB interface, a serial interface (RS232-LVTTL) and an SPI interface. The ID CPR60 offers a standby mode to reduce power consumption to a minimum. The ?wake-up-by-card? and ?wake-up contact? options are available to wake up the device. The ID CPR60 reader module was developed for integration in terminals, printers, handheld devices, etc.
