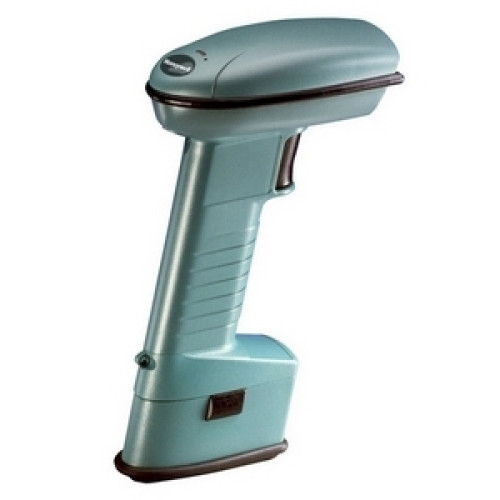

Hand Held ImageTeam 3870 Barcode Scanner
Part #: 3870HDK-A2-PS2 | SKU: HAN4627

Hand Held Products is pleased to introduce linear imaging technology in a cordless scanner. A bright sharp aiming line and high-resolution imaging combine to deliver bar code reading performance that was previously only possible using a laser scanner. The IT3870 joins a family of rugged and reliable cordless products including the SCANTEAM 2070 host interface base unit. The IT3870PDF is designed for aggressive reading performance on PDF417 and MicroPDF417. The IT3870HD reads high-density bar codes with dimensions as small as 3 mil. while the IT3870LX reads 15 mil. codes out to 18 inches. All of these configurations feature an IP 54 sealed-enclosure rating and the industry's best drop specification for cordless scanners.

Hand Held ImageTeam 3870 Barcode Scanner

Part Details: Cordless Linear Imager (High Density Scanner, with Charge Pack, Keyboard wedge Interface, PS/2 Cable and Software)

Additional Information

Manufacturer Hand Held
Model Name ImageTeam 3870

Technical Information

  • Scan Rate: 270 scan/s
  • Connectivity Technology: Wireless
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • Codabar
    • Code 39
    • Code 128
    • ISBT 128
    • UPC-E
    • UPC
    • EAN/JAN
    • Interleaved 2 of 5
    • Code 2 of 5
    • Matrix 2 of 5
    • Code 93
    • Code 11
    • Telepen
    • RSS
    • ISBN
    • Codabar
    • Code 39
    • Code 128
    • ISBT 128
    • UPC-E
    • UPC
    • EAN/JAN
    • Interleaved 2 of 5
    • Code 2 of 5
    • Matrix 2 of 5
    • Code 93
    • Code 11
    • Telepen
    • RSS
    • ISBN
  • Maximum Scan Resolution: 3 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: 3870
  • Product Name: IMAGETEAM 3870 Barcode Reader
  • Product Line: IMAGETEAM

Physical Characteristics

  • Height: 8.5"
  • Weight (Approximate): 16 oz

Other

  • Package Contents:
    • IMAGETEAM 3870HDK Cordless Linear Imager
    • Charge pack
    • Cordless base station (part number 2070-1X)
    • IBM PS/2 keyboard wedge cable (part number 42205021-01)
    • Quick Start Guide
    • System Manual
    • IMAGETEAM 3870HDK Cordless Linear Imager
    • Charge pack
    • Cordless base station (part number 2070-1X)
    • IBM PS/2 keyboard wedge cable (part number 42205021-01)
    • Quick Start Guide
    • System Manual
  • Certifications & Standards:
    • Electromagnetic Emissions/Immunity:
    • USA: FCC Part 15 Class B
    • Canada: SOR 88/475 Class B
    • Europe: EN 55022 (CISPR22) Class B
    • EN 61000-3-2 & -3
    • ETS 300 826
    • Safety:
    • USA: UL listed
    • C22.2 No 950/UL 1950
    • Canada: cUL Listed
    • Europe: TUV Rheinland GS Licensed
    • EN 60950 (IEC950)
    • Australia: AS/NZS 3548
    • RF Approvals:
    • USA: FCC Part 15.249
    • Canada: RSS 210
    • Europe: ETS 300 328
    • Other:
    • EMC 89/336/EEC
    • EN 50082-1:1992
    • IEC 801-2:1991
    • IEC 801-3:1984
    • IEC 801-4:1988
  • Platform Supported: PC
  • Additional Information:
    • Skew Angle: +/-30 Degree
    • Pitch Angle: +/-15 Degree
    • Frequency: 2.4 to 2.4835 GHz (ISM Band) Frequency-Hopping Spread Spectrum
    • Data Rates: 1 Mbps
    • Number of Scans: 18,000

Battery Information

  • Number of Batteries Supported: 1
  • Battery Rechargeable: Yes
  • Battery Chemistry: Nickel Metal Hydride (NiMH)

Power Description

  • Input Voltage:
    • 4 V DC
    • 220 V AC

Network & Communication

  • Radio Frequency: Yes

Warranty

  • Limited Warranty: 3 Year
Extended Details
