Hand Held 3870PDF-A2 Barcode Scanner
Part #: 3870PDF-A2 | SKU: HAN15853

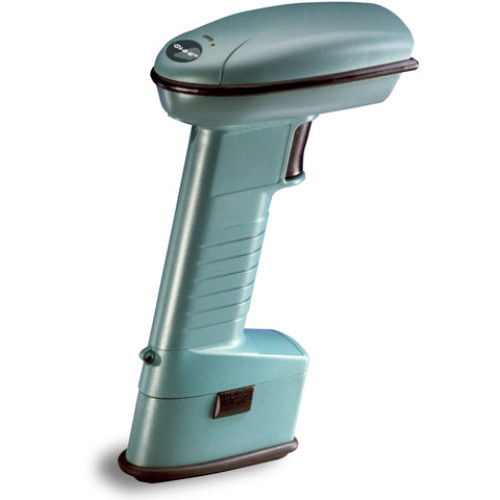

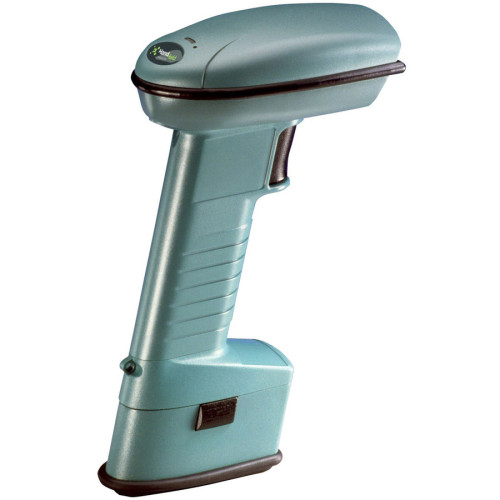

Hand Held Products is pleased to introduce linear imaging technology in a cordless scanner. A bright sharp aiming line and high-resolution imaging combine to deliver bar code reading performance that was previously only possible using a laser scanner. The IT3870 joins a family of rugged and reliable cordless products including the SCANTEAM 2070 host interface base unit. The IT3870PDF is designed for aggressive reading performance on PDF417 and MicroPDF417. The IT3870HD reads high-density bar codes with dimensions as small as 3 mil. while the IT3870LX reads 15 mil. codes out to 18 inches. All of these configurations feature an IP 54 sealed-enclosure rating and the industry's best drop specification for cordless scanners.

Hand Held 3870PDF-A2 Barcode Scanner

Part Details: Linear Imager Kit (PDF417 Reader, Software, NIMH, Charge Pack CLESS/NIMH/S and Quick Start Guide)

Need a different version of the Hand Held ImageTeam 3870 Barcode Scanner? View all 3 configurations

Additional Information

Manufacturer	Hand Held
Model Name	ImageTeam 3870
Scanner Capability	1D

Hand Held ImageTeam 3870 Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Symbologies Supported:
- Codabar
- Code 39
- Code 128
- ISBT 128
- UPC-E
- UPC
- EAN/JAN
- Interleaved 2 of 5
- Code 2 of 5
- Matrix 2 of 5
- Code 93
- Code 11
- Telepen
- RSS
- ISBN
- PDF 417
- Micro PDF-417
- EAN-UCC Composite
Scanner Type: Imager
Scan Rate: 270 Scans/sec
Interface Connectivity: Cordless
Cordless Range: 100'
Scan Pattern: Linear
Input Voltage Range: 4 to 14 V DC

General Information

Manufacturer:
- Hand Held Products
- Hand Held Products, Inc
Product Line: IMAGETEAM
Product Name: IMAGETEAM 3870 Barcode Scanner

Physical Characteristics

Dimensions:
- 8.5" (215.9mm) - Scanner
- 8.5" (215.9mm) x - Scanner
Weight: 16 oz - Scanner

Agency Approvals

Agency Approvals:
- EMC 89/336/EEC
- EN 50082-1:1992
- IEC 801-2:1991
- IEC 801-3:1984
- IEC 801-4:1988
- USA: FCC Part 15 Class B
- Canada: SOR 88/475 Class B
- Europe: EN 55022 (CISPR22) Class B
- EN 61000-3-2 & -3
- ETS 300 826
- USA: UL listed
- C22.2 No 950/UL 1950
- Canada: cUL Listed
- Europe: TUV Rheinland GS Licensed
- EN 60950 (IEC950)
- Australia: AS/NZS 3548
- USA: FCC Part 15.249
- Canada: RSS 210
- Europe: ETS 300 328

Other

Package Contents:
- IMAGETEAM 3870 Barcode Scanner
- Charge Pack
- Quick Start Guide

Environmental Conditions

Temperature:
- 0Â°C (32Â°F) to 50Â°C (122Â°F) Operating
- -30Â°C (-22Â°F) to 60Â°C (140Â°F) Storage
Humidity: 0 to 95% Non-condensing

Warranty

Manufacturer Warranty: 3 Year(s)
