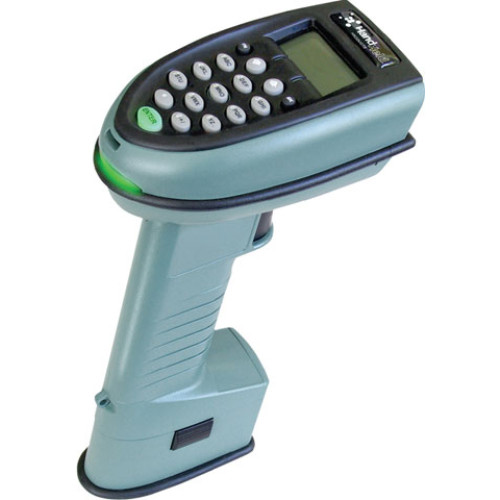

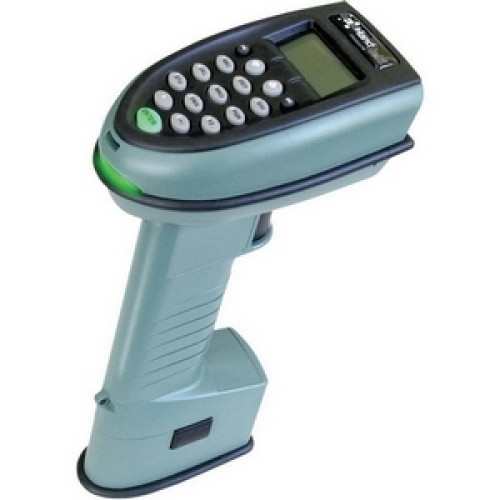

Hand Held 3875LX-A2-1 Barcode Scanner
Part #: 3875LX-A2-1 | SKU: HAN21908

Hand Held Products is pleased to announce the availability of the IMAGETEAM 3875 Interactive Cordless Scanner. Based on the popular IT3870 the IT3875 adds an interactive keyboard and display for fast versatile data collection in a 31400 square foot (2919m) area. Designed as a cost-effective alternative to portable data terminals the IT3875 is ready to use right out of the box and is easily configured with just a few keystrokes.

Hand Held 3875LX-A2-1 Barcode Scanner

Part Details: Interactive Cordless Linear Imager (Keypad, Display, Stand, Stand Optics, Charge Pack and Quick Start Guide)

Need a different version of the Hand Held ImageTeam 3875 Barcode Scanner? View all 2 configurations

Additional Information

Manufacturer	Hand Held
Model Name	ImageTeam 3875
Scanner Capability	1D

Hand Held ImageTeam 3875 Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Symbologies Supported:
- Code 11
- Code 39
- Code 93
- Code 128
- Codabar
- EAN-8
- EAN-13
- Interleaved 2 of 5
- ISBT 128
- Matrix 2 of 5
- RSS
- Straight 2 of 5
- Telepen
- UCC/EAN 128
- UPC-A
- UPC-E
Scanner Type: Imager
Scan Rate: 270 Scans/sec
Interface Connectivity: Cordless
Cordless Range: 30m
Scan Pattern: Linear
Depth of Field:
- 3.2 - 8.8"@6.5mils
- 2.8 - 9.8"@7.5mils
- 0.5 - 14"@13mils
- 0.5 - 18"@15mils

General Information

Manufacturer:
- Hand Held Products
- Hand Held Products, Inc
Product Line: IMAGETEAM
Product Name: IMAGETEAM 3875 Extended Range Barcode Scanner

Physical Characteristics

Weight: 18.5 oz - With Charge Pack

Agency Approvals

Agency Approvals:
- FCC Part 15 Class B
- SOR 88/475 Class B
- EN 55022 (CISPR22) Class B
- EN 61000-3-2 & -3
- ETS 300 826
- EMC 89/336/EEC
- EN 50082-1:1992
- IEC 801-2:1991
- IEC 801-3:1984
- IEC 801-4:1988
- UL listed
- C22.2 No 950/UL 1950
- cUL Listed
- TUV Rheinland GS Licensed EN 60950 (IEC950)
- AS/NZS 3548
- FCC Part 15.249
- RSS 210
- ETS 300 328

Other

Package Contents:
- IMAGETEAM 3875 Extended Range Barcode Scanner
- Keypad
- Display
- Charge Pack
- Quick Start Guide

Environmental Conditions

Temperature:
- 0Â°C (32Â°F) to 50Â°C (122Â°F) Operating
- -30Â°C (-22Â°F) to 60Â°C (140Â°F) Storage
Humidity: 5 to 95% Non-condensing

Warranty

Manufacturer Warranty: 3 Year(s)

Extended Details
