HID 601102-001 RFID Tag
Part #: 601102-001 | SKU: HID770096

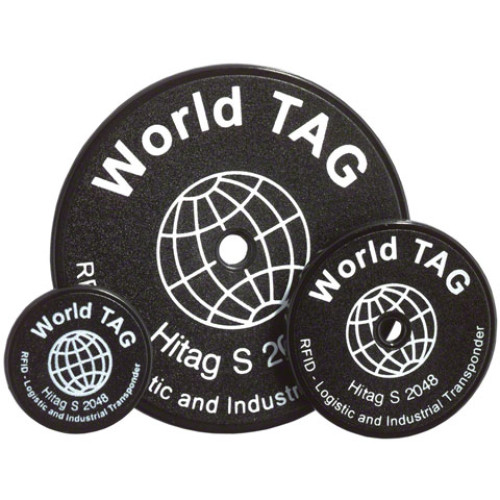

The World Tag™ RFID tags are a trustworthy and economical option for indoor tagging needs. Constructed from tough polycarbonate, these low-frequency, disc-shaped tags deliver outstanding performance, even in challenging environments, and can endure temperatures reaching 212°F (100°C). They are perfect for applications such as asset tracking, logistics, and monitoring logistics equipment, making them ideal for attachment to surfaces like wood, glass, or plastic. With multiple chip options available and read-write capabilities of up to 2048 bits, this compact solution is tailored to fulfill your tagging requirements with ease.

• Economical - Excellent balance between size and performance
• Sturdy - Resilient polycarbonate material
• Flexible Attachment - Easily secured using glue or screws to multiple surface types
• Low Frequency - Functions at 125 kHz for proximity applications

• Electronic:
  • Operating Frequency: 125 kHz
  • Chip Type: HITAG S
  • Memory: 256 bit EEPROM
  • Anti-collision: Yes
  • Reading Distance: Varies based on reader, environment, and application
• Physical:
  • Dimensions: Ø 0.79 x 0.08 in (20 x 2.1 mm)
  • Mounting Method: Glue, embed or screw
  • Affixes To: Glass, plastic, wood
  • Weight: 0.03 oz (0.8 g)
• Mechanical Resistance:
  • Vibration: IEC 68.2.6 [10 g, 10 to 2000 Hz, 3 axis, 2.5 h]
  • Shock: IEC 60068-2-27:2008 [40 g, 18 ms, 6 axis, 2000 times]
  • Axial / Radial Force: 500 N / 300 N, 10 sec
• Thermal:
  • Storage: -40° to +194° F (-40° to +90° C), 1000 h
  • Operating: -13° to +158° F (-25° to +70° C)
  • Peak: 212° F (100° C), 100 h
• Warranty: 2 Years
• Box Size: Available in 1000 pcs or 2000 pcs
