HID 601170 RFID Tag
Part #: 601170 | SKU: HID770091

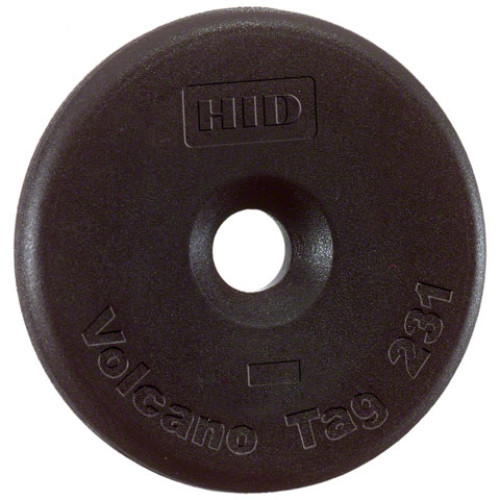

The Volcano Tag™ is the perfect choice for RFID applications in high-temperature scenarios. Constructed to perform efficiently in extreme heat, these passive contactless RFID transponders can endure peak temperatures of up to 392°F (200°C). Housed in robust polyphthalamide (PPA), the Volcano Tag ensures durability and reliability in various automation and manufacturing contexts. Its adaptable design allows for secure attachment to a wide range of surfaces, including glass, metal, plastic, or wood, rendering it a cost-efficient solution for near-proximity reader configurations.

• High heat tolerance: Endures extreme temperatures during industrial processes and outdoor usage.
• Durable housing: Resistant to both chemical and mechanical stress.
• Versatile mounting: Easily secures to diverse surfaces without losing effectiveness.

• Base Model Number: 601170
• Operating Frequency: 125 kHz
• Memory: 64-bit read-only
• Dimensions: 01.02 x 0.16 in (26 x 4 mm)
• Weight: 0.12 oz (3.5 g)
• Mounting Method: Screw mount with a fixation hole size of Ø 0.18 in (4.5 mm)
• Waterproof: IP68 rated, capable of withstanding submersion
• Temperature Range: Operating: -13° to +185°F (-25° to +85°C); Storage: -13° to +284°F (-25° to +140°C)
• Shock Resistance: Resilient against significant shocks and vibrations
• Warranty: 2 Years
