HID 612117 RFID Tag
Part #: 612117 | SKU: HID769579

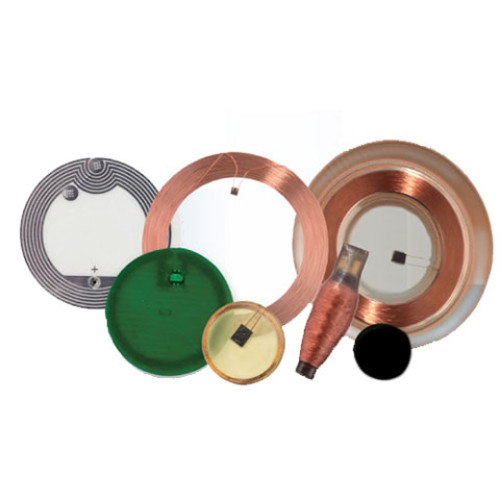

The HID Embeddable RFID technology stands out as a flexible and dependable choice, tailored for effortless integration into a wide range of tagging applications across various sectors. With numerous housing materials and customizable configurations available, these RFID transponders can be seamlessly embedded into multiple substrates. Operating across low to ultrahigh frequencies, HID transponders guarantee superior performance and dependable functionality, even in challenging environments. This innovation streamlines the tagging process, enabling manufacturers to concentrate on their primary objectives while leveraging HID's cutting-edge solutions.

Key Features:

• Customizable options available, including size, chip type, and form factor for any enclosure.
• Unmatched quality ensured through fully automated manufacturing and the proprietary DBond™ technology.
• High-performance transponders that are resistant to chemicals, shocks, and temperature variations.
• Diverse integrated chip options are offered, including LF, HF, and RAIN UHF.

Specifications:

• Operating Frequencies: LF, HF, UHF
• Chip Types: Hitag S, MIFARE, EM4305
• Memory: Options range from 256 bit to 2048 bit EEPROM
• Reading Distance: Varies based on RFID reader and surroundings
• Outer Coil Diameter: Available sizes from 20 mm to 30 mm
• Thickness: Ranges from 0.03 in (0.6 mm) to 0.09 in (2.2 mm)
• Operating Temperature: -4° to +140° F (-20° to +60° C)
• Standards Compliance: Compliant with ISO 11784, ISO 11785
• Warranty: Two years
