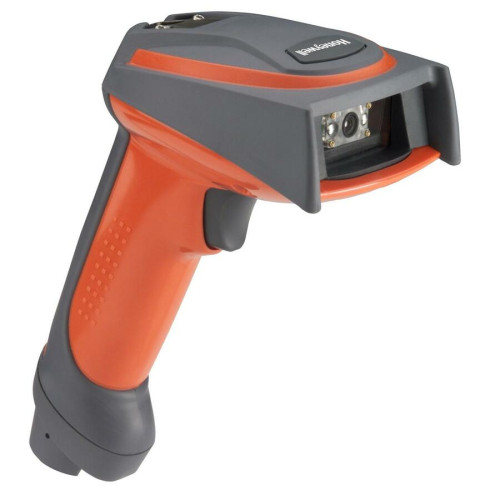

Honeywell 4800i Bar code Scanner Part # 4800ISR031CE

The IMAGETEAM 4800 Industrial 2D Area Imager is the first handheld area image reader powered by Adaptus imaging technology. Adaptus technology decodes faster, farther, and future-proofs your investment.

4800ISR031CE - Honeywell 4800i Bar code Scanner

Part Details: Industrial 2D Image Scanner (Industrial 2D Imager, Supports True RS-232 and 12V DEC Wedge - Unit Only)
New

Additional Information

Manufacturer Honeywell
Model Name 4800i
Product Condition New

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • PDF 417
    • Micro PDF
    • MaxiCode
    • DataMatrix
    • QR Code
    • Aztec
    • Aztec Mesas
    • Code 49
    • EAN-UCC Composite
    • Codabar
    • Code 39 including PARAF
    • Interleaved 2 of 5
    • Code 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC/EAN/JAN
    • RSS
    • ISBT 128
    • Postnet
    • Planet Code
    • British Post
    • China Post
    • Canadian Post
    • Japanese Post
    • KIX(Netherlands) Post
    • OCR-A
    • OCR-B
    • PDF 417
    • Micro PDF
    • MaxiCode
    • DataMatrix
    • QR Code
    • Aztec
    • Aztec Mesas
    • Code 49
    • EAN-UCC Composite
    • Codabar
    • Code 39 including PARAF
    • Interleaved 2 of 5
    • Code 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC/EAN/JAN
    • RSS
    • ISBT 128
    • Postnet
    • Planet Code
    • British Post
    • China Post
    • Canadian Post
    • Japanese Post
    • KIX(Netherlands) Post
    • OCR-A
    • OCR-B
  • Maximum Scan Resolution: 8.30 mil
  • Depth of Field:
    • 2" - 6"@7.50 mil - Linear
    • 1.50" - 8.40"@13 mil - UPC
    • 2.30" - 5.50"@6.60 mil - PDF417
    • 1.70" - 7.10"@10 mil - PDF417
    • 1.30" - 7"@15 mil - Data Matrix
    • 1.70" - 6.70"@15 mil - QR Code

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: 4800i
  • Product Name: 4800i Barcode Reader

Physical Characteristics

  • Height: 6.4"
  • Width: 3.2"
  • Depth: 5.3"
  • Weight (Approximate): 7.50 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • IEC60825-1
    • RoHS
    • LED Safety:
    • LED Safety Class 1
    • UL
    • cUL
    • TÜV
    • 2005 Sunrise
  • Additional Information:
    • Supported Interfaces:
    • Keyboard WedgeSerialIBM 468X/469X

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Input Voltage: 14 V DC
