Honeywell 4820ISR-USBKITAE Barcode Scanner Honeywell 4820ISR-USBKITAE Barcode Scanner Honeywell 4820ISR-USBKITAE Barcode Scanner Honeywell 4820ISR-USBKITAE Barcode Scanner Honeywell 4820ISR-USBKITAE Barcode Scanner

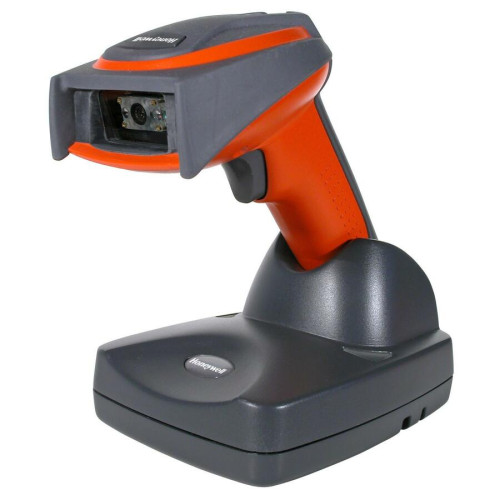

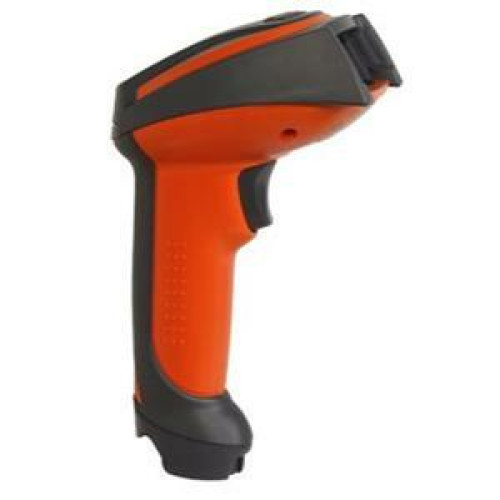

Honeywell 4820ISR-USBKITAE Barcode Scanner
Part #: 4820ISR-USBKITAE | SKU: HON27641

The 4820i Industrial Cordless 2D Imager is designed to provide unmatched data collection performance and versatility for applications that demand maximum reliability in the harshest working environments.

Honeywell 4820ISR-USBKITAE Barcode Scanner

Part Details: USB Kit - Cordless - 2D Imager - Charging and Communication base - USB cable - Power suppply
Need a different version of the Honeywell 4820i Barcode Scanner? View all 5 configurations

Additional Information

Color Black, Red
Connectivity Cordless
Form Factor Handheld
Included Cables USB
Interface Options Bluetooth, USB
Manufacturer AIDC Honeywell
Model Name 4820i
Scanner Capability 1D
Scanner Type Imager
Honeywell 4820i Specs Honeywell 4820i Specs (pdf)

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Wireless
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • PDF 417
    • Micro PDF-417
    • MaxiCode
    • DataMatrix
    • QR Code
    • Aztec
    • Aztec Mesas
    • Code 49
    • EAN-UCC Composite
    • Codabar
    • Code 39
    • Interleaved 2 of 5
    • Code 93
    • Code 128
    • UPC
    • EAN
    • RSS
    • Coda Block
    • Postnet
    • Planet Code
    • British Post
    • Canadian Post
    • Japanese Post
    • KIX(Netherlands) Post
    • OCR-A
    • OCR-B
    • PDF 417
    • Micro PDF-417
    • MaxiCode
    • DataMatrix
    • QR Code
    • Aztec
    • Aztec Mesas
    • Code 49
    • EAN-UCC Composite
    • Codabar
    • Code 39
    • Interleaved 2 of 5
    • Code 93
    • Code 128
    • UPC
    • EAN
    • RSS
    • Coda Block
    • Postnet
    • Planet Code
    • British Post
    • Canadian Post
    • Japanese Post
    • KIX(Netherlands) Post
    • OCR-A
    • OCR-B
  • Maximum Scan Resolution: 35 mil
  • Depth of Field:
    • 3" - 7.10"@8.30 mil - Linear
    • 1.60" - 12.70"@13 mil - UPC
    • 4" - 5.70"@6.60 mil - PDF417
    • 2.60" - 8.50"@10 mil - PDF417
    • 1.80" - 9.70"@15 mil - PDF417
    • 1.50" - 12.50"@35 mil - Maxi Code

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: 4820i
  • Product Name: 4820i Barcode Reader

Physical Characteristics

  • Height: 6.5"
  • Width: 3.2"
  • Depth: 5.3"
  • Color: Orange
  • Weight (Approximate): 9.60 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • 4820i Barcode Reader
    • Cordless Base
    • North America Power Cord
    • North America Power Supply
    • Straight USB Cable
    • User Documentation
    • 4820i Barcode Reader
    • Cordless Base
    • North America Power Cord
    • North America Power Supply
    • Straight USB Cable
    • User Documentation
  • Certifications & Standards:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • IEC60825-1 LED Safety: Class 1
    • UL
    • cUL
    • TÜV
    • 2005 Sunrise
    • RoHS
  • Additional Information:
    • Supported Interfaces:
    • Keyboard Wedge
    • USB
    • Serial
    • Wand Emulation
    • IBM 46XX

Power Description

  • Input Voltage: 4.2 V DC
  • Power Source: Battery

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)

Warranty

  • Limited Warranty: 3 Year

Network & Communication

  • Bluetooth: Yes
Extended Details
