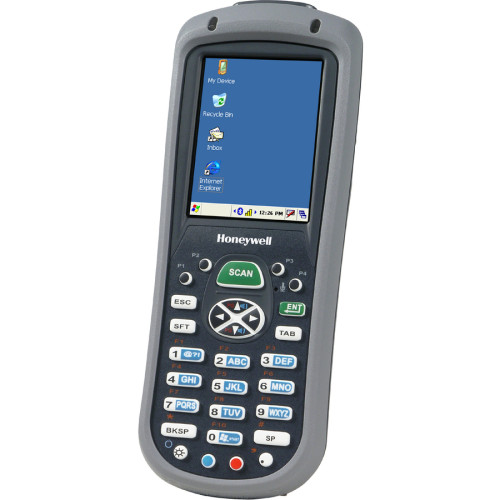

Honeywell Dolphin 7600 Hand Held Computer Part # 7600BG-112-B4EE

The Dolphin 7600 is Hand Held Products' most compact mobile computer, offering a range of features and functionality superior to other devices in its class. Its Microsoft Windows CE 5.0 operating system provides a powerful, industry standard platform for developers and users, simplifying integration and ensuring intuitive operation. The integrated 802.11b/g WLAN provides workers continuous real-time network access to mission critical information throughout the enterprise. Its 2.8" VGA color display provides easy viewing and touch screen use. Adaptus Imaging Technology 5.0 reads linear and 2D barcodes and captures digital images, giving you the ability to process and manage more data with a single device than ever before.

7600BG-112-B4EE - Honeywell Dolphin 7600 Handheld Computer

Part Details: Dolphin 7600, WWAN (850/1900 GSM/GPRS EDGE) and WPAN (Bluetooth) / 5300SR Imager with high-vis aiming pattern / 29 key / 128MB RAM x 128MB Flash / Windows Mobile 6.0
InStock

Additional Information

Data Collection Type Wireless
Display Resolution 240 x 320
Drop Rating 4 ft/1.2 m
IP Rating IP54
Keypad 29
Manufacturer Honeywell
Model Name Dolphin 7600
Network Connectivity Bluetooth, GPRS
Operating System Windows Mobile 6.0
Operating Temperature 14 F - 122 F
Processor 400 MHz Samsung S3C2440
Product Condition New
RAM Memory 128 MB
Scanner Capability 2D
Scanner Type Imager
Style Phone-size

Technical Information

  • Scanner Range: Standard Range
  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-12 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
  • Drop Specification: 60" To Concrete
  • Barcode Symbology Supported:
    • Codabar
    • Code 3 of 9
    • Code 11
    • Code 32
    • Pharmaceutical (PARAF)
    • Code 93
    • Code 128
    • EAN with Add-On
    • EAN with Extended Coupon Code
    • EAN-8
    • EAN-13
    • GS1-128
    • GS1 Databar
    • Interleaved 2 or 5
    • ISBT 128
    • Matrix 2 of 5
    • MSI
    • Plessey
    • PosiCode
    • Straight 2 of 5 IATA
    • Straight 2 of 5 Industrial
    • Telepen
    • Trioptic Code
    • UPC
    • UPC-A
    • UPC-E
    • Aztec
    • Codablock
    • Code 16K
    • Code 49
    • Composite
    • Data Matrix
    • GS1 Databar
    • MaxiCode
    • Micro PDF
    • OCR
    • PDF417
    • QR Code
    • Aztec Mesa
    • Codablock F
    • EAN·UCC
    • GS1 Databar-14
    • OCR-A
    • OCR-B
    • OCR-US Money Font
    • Australian Post
    • British Post
    • Canadian Post
    • China Post
    • Japanese Post
    • KIX (Netherlands) Post
    • Korea Post
    • Planet Code

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: 7600
  • Product Name: Dolphin 7600 Mobile Computer
  • Product Line: Dolphin

Physical Characteristics

  • Height: 7.1"
  • Width: 2.7"
  • Depth: 1.9"
  • Weight (Approximate): 14.30 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Package Contents:
    • Dolphin 7600 Mobile Computer
    • Battery
    • Dolphin 7600 Mobile Computer
    • Battery
  • Certifications & Standards:
    • IP54
    • Safety:
    • cUL 60950
    • NOM
    • EN60950
    • BSMI CN14336
    • CCC GB4943
    • PSB
    • SIRIM
    • EMC:
    • FCC Part 15 Class B
    • ICES-003
    • EN301 489-1
    • EN301 489-17
    • EN55022
    • EN55024
    • BSMI CNS13438
    • CCC GB9254
    • MIC
    • AS/NZS 3548
    • FCC Parts 22H & 24H
    • FCC SAR OET 65
    • EN301511
    • RSS-132/133
    • Radio:
    • FCC 15.247
    • RSS-210
    • COFE TEL
    • EN300 328-1
    • EN300 328-2
    • SRRC ETS 300 328
    • IDA
    • SIRIM
    • MIC
    • ARIB STD-T33 & T66
    • AS/NZS 4771
  • Additional Information:
    • Communications:
    • RS-232/USB Connector
    • IrDA port
    • Installed Applications:
    • Honeywell Power Tools
    • ITScriptNet Ready-To-Go Applications

Network & Communication

  • Bluetooth: Yes
  • Cellular Network Supported: GSM
  • Network Band: Quad Band
  • Wireless Security:
    • WEP
    • WPA
    • WPA2
    • EAP-TLS
    • TTLS
    • LEAP
    • PEAP
    • WiFi (WPA2)
    • Cisco

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Screen Size: 2.8"
  • Display Color: Color
  • Screen Resolution: 240 x 320

Memory

  • Flash Memory: 128 MB
  • Standard Memory: 128 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD Card

Battery Information

  • Battery Capacity: 2200 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Samsung
  • Processor Speed: 400 MHz

Keyboard/Keypad

  • Keyboard Type: Alphanumeric
  • Number of Keys: 29

Software

  • Operating System: Windows Mobile 6.0 Classic

Warranty

  • Limited Warranty: 1 Year

Touchscreen Information

  • Touchscreen: Yes
