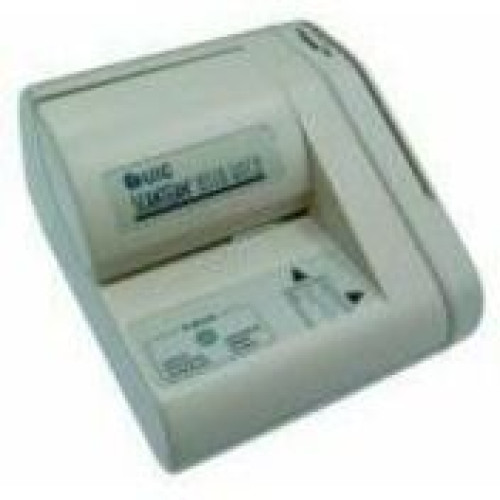

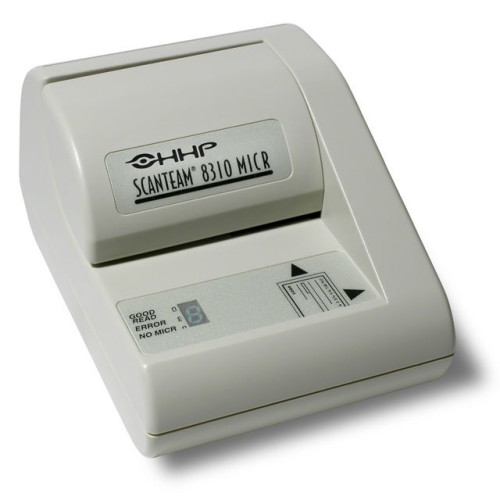

Honeywell 8310-20 Check Reader
Part #: 8310-20 | SKU: HON7056

The SCANTEAM 8310 is the reduced feature set member of the SCANTEAM 8300 family of check reader products. All ST8300 products contain FLASH memory which allows for easy firmware upgrades in the field without the need to disassemble the product and a magnetic read head for MICR data capture. The SCANTEAM 8310 contains communications support for traditional PC COM ports for PC-POS applications many PC and video terminal keyboards in a keyboard wedge mode as well as support for communications with many Credit Authorization Terminals including HypercomTM Data CardTM Verifone TranzTM and ZONTM series products.

Honeywell 8310-20 Check Reader

Part Details: 8310 MICR Check Reader (Keyboard Wedge, RS-232 and No MSR - Upgradeable)

Need a different version of the Honeywell ScanTeam ST 8310 Check Reader? View all 3 configurations

Additional Information

Manufacturer	Honeywell
Model Name	ScanTeam ST 8310

Honeywell ScanTeam ST 8310 Specs (pdf)

Technical Information

MICR Fonts Supported:
- E13-B
- CMC-7
Input Voltage: 5 V DC
Interface Options:
- PS/2 Keyboard Wedge
- Serial - True RS-232 Signal Levels

General Information

Manufacturer: Hand Held Products
Product Line: SCANTEAM
Product Name: ScanTeam 8310 MICR Check Reader

Physical Characteristics

Dimensions: 4.3" (109mm) x 4.08" (104mm) x 5.75" (146mm)
Weight: 1.25 lb (0.57 kg)

Other

Additional Information:
- Fonts Supported: Auto Discrimination
- With Motor On: 385mA (typical average)
- With Motor Off: 125mA (typical)
- Wall mount power packs
- Host Interface cables
- ST8310 wall mount kit
- MICR head cleaning checks
- MICR programming checks
- PC Windows based programming utility, Quick Load
- Output Formats: Every ST8310 contains a user selectable table of common MICR data output formats
- Data Editor: The output data can be uniquely edited by the ST8310 data editor to add or delete characters, including prefix and suffix characters

Environmental Conditions

Temperature:
- 32Â°F (0Â°C) to 122Â°F (50Â°C) Operating
- 0Â°F (-18Â°C) to 140Â°F (60Â°C) Storage
Humidity: 95% Non-condensing

Agency Approvals

Agency Approvals: FCC Class A Complies with EMC 89/336/EEC and LVD 73/23/EEC

Warranty

Manufacturer Warranty: 1 Year(s)
