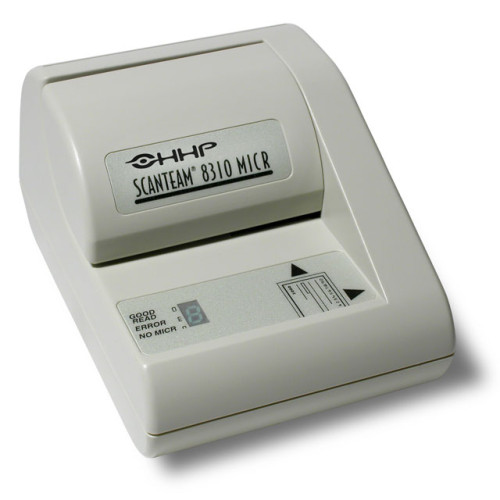

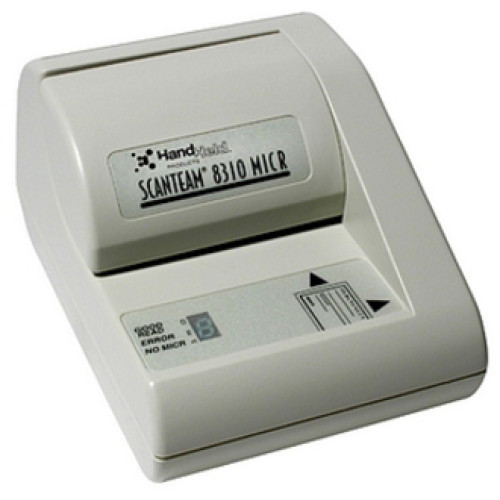

Honeywell 8310-22 Check Reader
Part #: 8310-22 | SKU: HON22683

The SCANTEAM 8310 is the reduced feature set member of the SCANTEAM 8300 family of check reader products. All ST8300 products contain FLASH memory which allows for easy firmware upgrades in the field without the need to disassemble the product and a magnetic read head for MICR data capture. The SCANTEAM 8310 contains communications support for traditional PC COM ports for PC-POS applications many PC and video terminal keyboards in a keyboard wedge mode as well as support for communications with many Credit Authorization Terminals including HypercomTM Data CardTM Verifone TranzTM and ZONTM series products.

Honeywell 8310-22 Check Reader

Part Details: Honeywell ST8310 MICR Check Reader - Dual Track MSR

Need a different version of the Honeywell ScanTeam ST 8310 Check Reader? View all 3 configurations

Additional Information

Manufacturer	Honeywell
Model Name	ScanTeam ST 8310

Honeywell ScanTeam ST 8310 Specs (pdf)

Technical Information

MICR Font Supported:
- CMC-7
- E13-B
Magnetic Stripe Track Configuration: Dual Track
Magnetic Stripe Track Number:
- Track 1
- Track 2

General Information

Product Type: Check Reader
Brand Name: Honeywell
Manufacturer: Honeywell International, Inc
Product Model: ST8310
Product Name: ST8310 MICR Check Reader
Product Line: SCANTEAM

Physical Characteristics

Height: 3.4"
Width: 4.7"
Depth: 5.8"
Color: White
Weight (Approximate): 1.25 lb

Interfaces/Ports

Interfaces/Ports:
- Keyboard Wedge
- RS-232 Serial

Other

Certifications & Standards:
- FCC Class A
- EMC 89/336/EEC
- LVD 73/23/EEC

Environmental Conditions

Humidity: 95% Non-condensing
Temperature:
- 32°F (0°C) to 122°F (50°C) Operating
- -0.4°F (-18°C) to 140°F (60°C) Storage

Power Description

Input Voltage Range: 7 V DC to 13.5 V DC
Input Voltage: 5 V DC

Warranty

Limited Warranty: 1 Year
