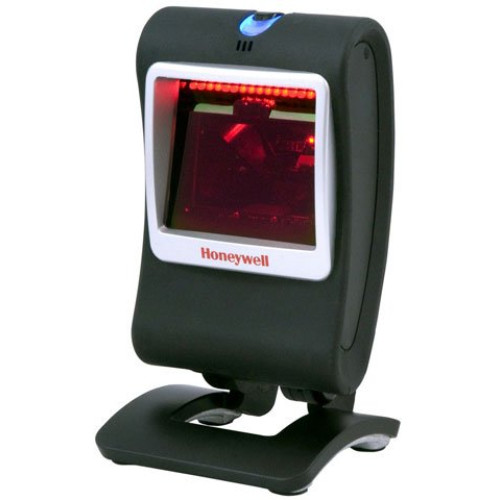

Honeywell MK7580-30A38-00-A Barcode Scanner Honeywell MK7580-30A38-00-A Barcode Scanner

Honeywell MK7580-30A38-00-A Barcode Scanner
Part #: MK7580-30A38-00-A | SKU: HON79896

Genesis meets the market's need for a barcode reader that keeps pace with the growing prevalence of PDF, Data Matrix and QR barcodes, including those displayed on a mobile phone screen for emerging applications like digital boarding passes, event tickets or mobile coupons. Metrologic drew upon its years of expertise in imaging technology to execute a design capable of satisfying a wide range of applications in a variety of industries.

Honeywell MK7580-30A38-00-A Barcode Scanner

Part Details: MS7580 Genesis Imager (1D-Only, Scanner, 2.9 Meters - 9.5 Feet Straight Cable) - Color: Black - Non-Returnable/Non-Cancelable
Need a different version of the Honeywell MS7580 Genesis Barcode Scanner? View all 21 configurations

Additional Information

Connectivity Corded
Form Factor Handheld, Presentation
Included Cables USB
Manufacturer AIDC Honeywell
Model Name MS7580 Genesis
Scanner Capability 1D
Scanner Type CCD, Imager
Honeywell MS7580 Genesis Specs Honeywell MS7580 Genesis Specs (pdf)

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • Linear:
    • China Post
    • Codabar (NW7)
    • Code 11
    • Code 128
    • Code 2 of 5
    • Code 32
    • Code 39
    • Code 93 and 93i
    • EAN
    • GS1 DataBar (formerly RSS)
    • Interleaved 2 of 5
    • Matrix 2 of 5
    • MSI
    • Plessey
    • Telepen
    • Trioptic Code
    • UPC
    • Stacked:
    • GS1 Composite (Formerly EAN/UCC)
    • MicroPDF417
    • PDF417
    • Matrix:
    • Aztec
    • Chinese Sensible Code (Han Xin Code)
    • Data Matrix
    • MaxiCode
    • Micro QR Code
    • QR Code
    • Postal:
    • Australian Post
    • British Post
    • Canadian Post
    • ID-tag (UPU 4-state)
    • Intelligent Mail Barcode Formerly 4-State Customer Barcode)
    • Japanese Post
    • Netherlands (KIX) Post
    • OCR:
    • OCR MICR (E 13 B)
    • OCR-A
    • OCR-B
    • Linear:
    • China Post
    • Codabar (NW7)
    • Code 11
    • Code 128
    • Code 2 of 5
    • Code 32
    • Code 39
    • Code 93 and 93i
    • EAN
    • GS1 DataBar (formerly RSS)
    • Interleaved 2 of 5
    • Matrix 2 of 5
    • MSI
    • Plessey
    • Telepen
    • Trioptic Code
    • UPC
    • Stacked:
    • GS1 Composite (Formerly EAN/UCC)
    • MicroPDF417
    • PDF417
    • Matrix:
    • Aztec
    • Chinese Sensible Code (Han Xin Code)
    • Data Matrix
    • MaxiCode
    • Micro QR Code
    • QR Code
    • Postal:
    • Australian Post
    • British Post
    • Canadian Post
    • ID-tag (UPU 4-state)
    • Intelligent Mail Barcode Formerly 4-State Customer Barcode)
    • Japanese Post
    • Netherlands (KIX) Post
    • OCR:
    • OCR MICR (E 13 B)
    • OCR-A
    • OCR-B
  • Maximum Scan Resolution: 7.50 mil
  • Depth of Field:
    • 1.60" - 3.10"@5.20 mil - 1D
    • 1.20" - 4.70"@7.50 mil - 1D
    • 0.80" - 5.50"@10.40 mil - 1D
    • 0 mil - 6"@13 mil - 1D
    • 0 mil - 4.70"@10 mil - PDF
    • 1.20" - 4.70"@15 mil - PDF

General Information

  • Product Type: Desktop Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: MS7580
  • Product Name: Genesis MS7580 Desktop Barcode Reader
  • Product Line: Genesis

Physical Characteristics

  • Height: 5.9"
  • Width: 3.3"
  • Depth: 3.2"
  • Color: Black
  • Weight (Approximate): 12 oz

Interfaces/Ports

  • Host Interface:
    • USB
    • Serial
    • IBM 46XX
    • Keyboard Wedge

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • China RoHS

Warranty

  • Limited Warranty: 2 Year
Extended Details

Recommended Accessories for Model: Honeywell MK7580-30A38-00-A Barcode Scanner

  • Honeywell CBL-500-300-S00 Cables, Connectors, and Adapters
    Part #: CBL-500-300-S00 | SKU: HON87049

    Straight USB Cable - Type A - 5V Host Power - Color: Black - 9.8-feet (3m) Length - Works with Select Honeywell Scanners
    MSRP: $36.60 Price: $30.53
    In Stock

  • Honeywell CBL-020-300-C00 Cables, Connectors, and Adapters
    Part #: CBL-020-300-C00 | SKU: HON111717

    RS232 Cable - DB9 Female - 9.8' Coiled - 5V eternal power with option for host power on pin 9 - Color: Black
    MSRP: $37.30 Price: $30.92
    In Stock

  • Honeywell TF2-EPDL Software
    Part #: TF2-EPDL | SKU: HON229623

    Software - Honeywell EasyDL - driver's license and ID parsing. (Decode Board serial number required for order processing.)
    MSRP: $118.69 Price: $78.33
    In Stock

  • Honeywell CBL-720-300-C00 Cables, Connectors, and Adapters
    Part #: CBL-720-300-C00 | SKU: HON91691

    Cable: KBW, black, PS2, 3m (9.8'), coiled, 5 V external power with option for host power
    MSRP: $37.66 Price: $30.61
    In Stock

  • Honeywell CBL-503-300-S00 Cables, Connectors, and Adapters
    Part #: CBL-503-300-S00 | SKU: HON168281

    Cable: USB, black, 12V locking, 3m (9.8'), straight, 5V host power
    MSRP: $78.33 Price: $54.18
    In Stock
View All Options

Recommended Warranties for Model: Honeywell MK7580-30A38-00-A Barcode Scanner

  • BCI TRUESUPPORT-BAS-SCAN-1YR Service Contract
    Part #: TRUESUPPORT-BAS-SCAN-1YR | SKU: BCI634638

    TrueSupport Basic Plan for Scanners - 1 Year - Includes: Hardware Help Desk Support, RMA Triage, OEM Service contract mgmt.
    Price: $18.20
    In Stock

  • Honeywell SVC2DAYDEPOT-SCN3 Service Contract
    Part #: SVC2DAYDEPOT-SCN3 | SKU: HON604167

    AddOn, Edge Service, 2-Day Depot Upgrade, 3-Year Agreement, Requires purchase of a 3-Year Gold Maintenance Contract.
    MSRP: $126.60 Price: $91.42
    In Stock

  • Honeywell SVC2DAYDEPOT-SCN5 Service Contract
    Part #: SVC2DAYDEPOT-SCN5 | SKU: HON604168

    AddOn, Edge Service, 2-Day Depot Upgrade, 5-Year Agreement, Requires purchase of a 5-Year Gold Maintenance Contract.
    MSRP: $168.81 Price: $121.91
    In Stock

  • Honeywell SVC2DAYDEPOT-SCN1 Service Contract
    Part #: SVC2DAYDEPOT-SCN1 | SKU: HON616488

    AddOn, Edge Service, 2-Day Depot Upgrade, 1-Year Agreement, Requires purchase of a 1-Year Gold Maintenance Contract.
    MSRP: $42.21 Price: $35.91
    In Stock

  • Honeywell SVC7580-5WTR Service Contract
    Part #: SVC7580-5WTR | SKU: HON363467

    7580, Wear & Tear only, 5 Day Turn, 1 year renewal, (10 unit min)
    Price: $19.21
View All Options
