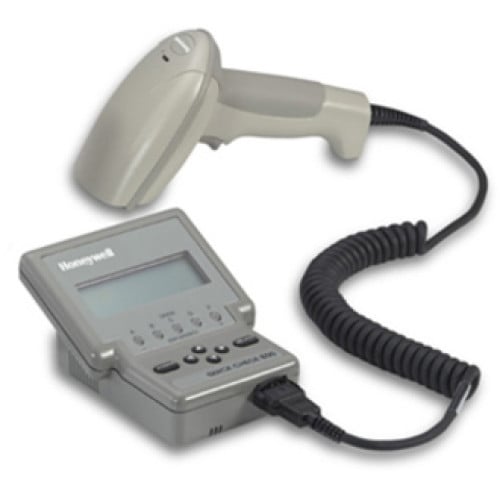

Honeywell QC8501 Barcode Verifier
Part #: QC8501 | SKU: HON3090

Bar code symbol reproduction accuracy is critical throughout the distribution supply chain, especially in an era of stringent compliance programs. With Hand Held Products verification products you can be assured that you can produce, receive, and use bar codes that meet these tough requirements with Quick Check verifiers----The QC600 and QC800 verifiers analyze bar code quality against traditional quality parameters and ANSI-CEN-ISO bar code print quality guidelines. Each unit includes all standard symbologies and is manufactured and traceable to N.I.S.T. (National Institute of Standards and Technology) standards developed by the U.C.C. (Uniform Code Council) and AIM (Automatic Identification Manufacturers).

Honeywell QC8501 Barcode Verifier

Part Details: Quick Check 850 Bar Code Verifier (All Industry Applications, All Symbologies, 110 Volt US Standard Connector, QC3800V Linear Imger and Cable - 42206231-01)

Need a different version of the Honeywell Quick Check 800 Series Barcode Verifier? View all 10 configurations

Additional Information

Manufacturer AIDC	Honeywell
Model Name	Quick Check 800 Series

Honeywell Quick Check 800 Series Specs (pdf)

General Information

Product Type: Barcode Verifier
Brand Name: Honeywell
Manufacturer: Honeywell International, Inc
Product Model: 800
Product Name: Hand Held Quick Check 800 Barcode Verifier
Product Line: Quick Check

Physical Characteristics

Height: 2.8"
Width: 4.3"
Depth: 5.3"
Weight (Approximate): 16 oz

Other

Certifications & Standards:
- FCC Class A
- CE Certified
Additional Information:
- Test ISO/IEC and Traditional Quality Parameters
- Menu-Driven for Easy Use
- LCD and LEDs Display Test Results Instantly
- Command Codes for Instant Programming
- QC3800VE for simple point and shoot testing
- Full ISO / IEC when using optional Mouse and Pen wand
- Keypad: 6-button, power, select (4 arrows)
- Operating Temperature: 32° to 122° F (0° to 50° C)
- Storage Temperature: 14° to 158° F (-20° to 70°C)
- Relative Humidity: 5% to 95% Non-condensing
- Test Aperture:
- Mouse: 3, 5, 6, 10, or 20 mil
- Pen: 5, 6, 10 mil
- Linear Imager: min. "X" dimension 5 mil Beam width: 5.25 in. (13.3cm)
- Symbologies:
- EAN/UPC with addenda
- Code 39 (1-49 characters)
- Interleaved 2 of 5 (2-78 characters)
- Codabar
- Code 128 (1-70 characters)
- MSI (1-50 characters)
- Code 16K (individual rows)
- Code 49 (individual rows)
- Code 93
- Code 11
- Regular 2 of 5 (Discrete/Industrial 2 of 5)
- IATA 2 of 5 (Straight 2 of 5)
- Database look-up feature
