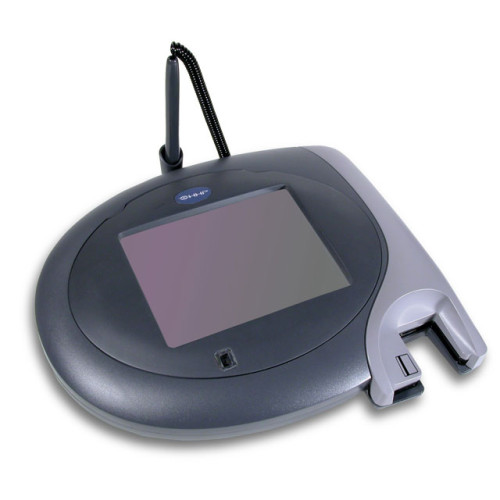

Honeywell TT8810-CEK4110 Signature Pad
Part #: TT8810-CEK4110 | SKU: HON15856

Hand Held Products Transaction Team (TT) 8810 represents Hand Held Products's standard offering moving forward. With a new touch screen stylus and screen protector system Hand Held Products has enhanced the usability and extended the useful life of the product. Replacing the TT8800 and joining the Hand Held Products TT3101 and TT1500 family of products this state-of-the-art terminal offers unrivaled power versatility and value. Innovative and full featured the TT8810 can process credit and debit payments access smart cards capture signatures and present electronic forms advertising and other information to your customersThe TT8810 comes standard with features that cost extra with other terminals. USB 16 MB of Ram and a 3-track magnetic stripe-smart card reader are standard. Choose a color LCD additional memory or 10-100 BaseT Ethernet factory options.

Honeywell TT8810-CEK4110 Signature Pad

Part Details: Interactive POS-Signature Capture Terminal (USB Kit, Color LCD, Ethernet, Virtual Pin Pad, Hybrid MSR-Smart Card Reader for Tracks 1,2 and 3, ISO7816 Compliant IC Cards, 12 foot Interface Cable, Screen Protector System, Start Up Guide and 110V Power Supply)

Need a different version of the Honeywell TT8810 Signature Pad? View all 5 configurations

Additional Information

Manufacturer	Honeywell
Model Name	TT8810

Honeywell TT8810 Specs (pdf)

Technical Information

Processor: Intel 32-bit
Display: Color - 320 x 240 - Touch Screen LCD
Signature Capture: Yes
Pin Pad: Yes
RAM Memory: 16MB
Flash Memory: 4MB
Security:
- PIN Encryption
- Master/Session Support
- DUKPT Support
- DES 64 and 128 bit
- Single and Triple DES
- Secure Key Injection
- Tamper Response
- Dedicated Security Processor
- File Authentication
Interfaces/Ports: USB
Input Voltage: 110 V AC - Power Supply
Network Connectivity: Ethernet Card

General Information

Manufacturer: Hand Held Products
Product Line: Transaction Team
Product Name: TT8810 Transaction Terminal

Physical Characteristics

Dimensions: 2.95" (75mm) x 9.75" (248mm) x 8.25" (210mm)
Weight: 2.4 lb (1.09 kg)

Included Features

Included Features:
- Magnetic Stripe Reader
- Smart Card Reader

Other

Package Contents:
- TT8810 Transaction Terminal
- True Finger Touch
- Signature Capture
- Virtual PIN Pad
- Hybrid MSR/Smart Card Reader for Tracks 1, 2, & 3
- ISO7816 Compliant IC Cards Ethernet
- 12' Interface Cable
- Screen Protector System
- Start Up Guide
- PC USB Cable
- Power Supply
Additional Information:
- Touch Pad Resolution: 903 x 1238 ppi
- Magnetic Stripe Reader: Bi-directional 3 Track Reader

Agency Approvals

Agency Approvals:
- FCC Class A
- CE (LVD)
- UL 1950
- CSA 22.2
- Visa PED
- EMV Level 1

Warranty

Manufacturer Warranty: 1 Year(s)
