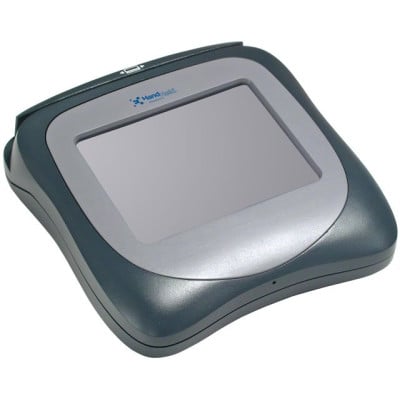

Honeywell TT8500 Signature Pad

Handheld Products introduces the revolutionary Transaction Team 8500. This state-of -the-art terminal offers unrivaled power, versatility, and value. POS payments, EBT, signature capture, and in-lane, targeted communications are enabled by the TT8500's fast processor and proven development environment. The TT8500 comes standard with features that are not available or cost extra with other terminals. PoweredUSB, 4MB flash, 16MB of RAM, and a 3-track magnetic stripe card reader are standard. Choose a color LCD, additional memory, USB host, and 10/100BASE-T Ethernet factory options.

Discontinued - Need Assistance

See all options

Specs & Info
All Options

Honeywell TT8500 Specs (pdf)

Transaction Team 8500 Specifications

Display/Signature Window
Signature Window: Resistive, transparent, pressure-sensitive touch screen

LCD Size: 4.45 x 3.3 in. (11.3 x 8.4 cm) (Active area)

LCD Resolution: 320 x 240 dot, 16 bit color (optional)

Touch Pad Resolution: 903 x 1238 ppi

Communications

RS-232: 4800 to 115.2 Kbps

RS-232 Pass-Through: Using Aux. Y cable with AC power adapter

RS-485: Using 9A, 9B, 4B connectors (no power adapter)

PC USB: AC power adapter required

USB Hub Host: 5V DC power pass-through, support for USB 1.1 and 2.0 for up to 16 devices (optional port)

IBM Retail USB: SurePOS compatible (no power adapter)

Ethernet 10/100 BaseT: Optional port. Cable not supplied.

Memory

Flash: 4MB to 16MB
SDRAM: 16MB to 64 MB

Dimensions (reference)

Width: 7.3 in. (18.5 cm)

Depth: 7.56 in. (19.2 cm)

Height: 2 in. (5.1 cm)

Weight: 2 lb. (.9 kg)

Power Requirements

Current Draw: 700 mA @ 12VDC
Source: 120V AC adapter or powered host terminal port

Optional Software Development Kit

Operating Systems: Microsoft

Extended Details

Refine Your Options

Honeywell TT8500-MNE Signature Pad
Part #: TT8500-MNE | SKU: HON38332

Honeywell Honeywell - Monochrome - LCD Display - Intel - 16 MB RAM - Serial - Serial
Honeywell TT8501-CEUE Signature Pad
Part #: TT8501-CEUE | SKU: HON60514

TT8500, Transaction Team 8501 Signature Capture Terminal (Color, LCD, PCI Compliant, TRN TERM, 3-Track MSR and Ethernet)
Honeywell TT8501P-CEUEKITE Signature Pad
Part #: TT8501P-CEUEKITE | SKU: HON63111

Honeywell Transaction Terminal TT8500 Signature Pad - LCD - 4.45 x 3.30 Active Area LCD - USB
Honeywell TT8501P-MEUE Signature Pad
Part #: TT8501P-MEUE | SKU: HON70750

TT8500, Transaction Team 8501 Signature Capture Terminal (Monochrome, LCD, PCI Compliant, TRN TERM, 3-Track MSR and Ethernet)
