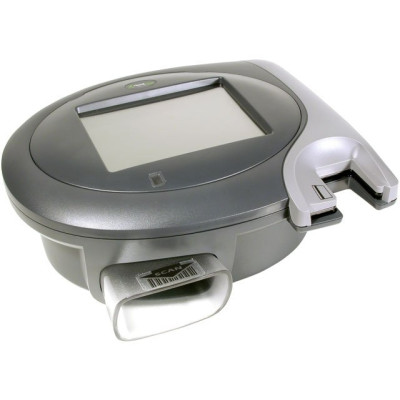

Honeywell TT8870 Signature Pads

The Honeywell TT8870 has been discontinued. No direct replacement is available.
Please contact us for a suitable substitute.

Enhance the Customer's Shopping Experience

The Image Kiosk 8870 is a fully functional mini-kiosk that can check prices, interacts with the customer and processes transactions. The Image Kiosk enables the retailer to raise the customer's shopping experience to a new level. Offering the power and performance of larger, more expensive kiosks, the Handheld Products Image Kiosk provides great value from a company you can trust.
TT8870 Options
Honeywell TT8870 (TT8870C)
TT8870, 802.11b Communications
Specs: Handheld Products

Honeywell TT8870 Details

Display/Signature Window

Signature Window: Resistive, transparent, pressure-sensitive touch screen with replaceable screen protector system

LCD Size (Active Area): 4.45 x 3.3 in.  (11.3 x 8.4 cm)

LCD Resolution: 320 x 240 dpi

Touch Pad Resolution: 903 x 1238 ppi

Communications

Radio Frequency: 802.11b, optional  (AC power adapter and power supply required; not included)

RS-232: 4800 to 115.2 Kbps (AC power adapter and power supply required; not included)

RS-232 Pass-Through:  4800 to 115.2 KBS auxiliary Y cable (AC power adapter and power supply required; not included)

PC USB: AC power adapter and power supply required; not included

Ethernet 10/100 BaseT: Optional port; cable not available from Hand Held Products  (AC power adapter and power supply required; not included)

MemoryBaseRF
Flash:4MB 16MB
SRAM:16MB32MB

Dimensions (reference)

Width: 9.75 in. (24.8 cm)

Depth: 8.6 in. (21.8 cm)

Height: 3.8 in. (9.6 cm)

Weight: 2.8 lb. (1.7 kg)

Power Requirements

Current Draw: 1100 mA @ 12VDC

Source: 120V AC adapter

Optional Software Development Kit

Operating Systems: Microsoft®  Windows® 95, Windows® 98, Windows® 2000, Windows® XP, Windows NT® 3.51 or higher

Formats Supported: BMP, CGM, DIB, EPS, MF, PCL, PCX, PLS, JPEG, and TIF.

Signature Processing

Compression: SIG - 5:1 (default), VBC - 4:1. NLC - 5:1, CMP - 10:1

Average File Size: SIG - 1600 bytes, VBC - 500 bytes, NLC - 400 bytes, CMP - 200 bytes

Security

Hardware Features: Secure key injection, tamper response, dedicated security processor

Firmware Authentication: File authentication (SHA1 and RSA at 1024 bits)

Encryption: PIN Encryption, Master/Session key, DUKPT, DES 64, and 128 bit

RF Security: WEP (128 bit)

Approvals and Certifications

Agency Conformance: FCC Class A, CE (LVD), UL 1950, CSA 22.2, EMV Level 1, RSS-210.

Complies with EMC 89/336/EEC
