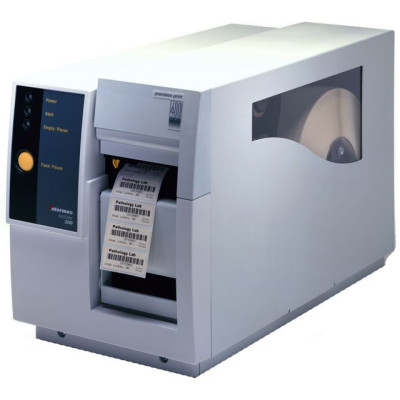

Intermec EasyCoder 3240 Barcode Label Printer

Intermec EasyCoder 3240 Barcode Label Printer

The Intermec 3240 is your solution for printing high quality labels for the smallest of applications. With its 400 dpi resolution the 3240 is engineered to print labels from 0.1 inch up to 2.7 inch wide with superior quality and scannability. Intermec's exclusive PrecisionPrint technology ensures extremely accurate image registration for even the smallest labels (within a tolerance of 0.30 inch). The 3240 exceeds the quality performance of other printers when it comes to small label printing.

EasyCoder® 3240 Label, Ticket & Tag Printer

__($mfg->name) EasyCoder 3240 Printer

  • Superior Print Quality ? The 3240 with 400 dpi resolution prints graphics, small fonts and symbologies substantially improved over rival 300 dpi printers.
  • Saves Time and Money ? With the 3240, extremely small labels can now be printed on-demand thus saving your organization time and money for more expensive preprinted labels.
  • Unparalleled Precision Printing ? Intermec's patent-pending PrecisionPrint technology offers extremely accurate image registration for even the smallest of labels.
  • Improved Bar code Scanning ? The 3240 prints small 2.5 and 5 mil bar codes with such remarkable sharpness that bar codes read faster and more accurately.

Printing small labels for electronic components, printed circuit boards, test tubes and vials can be challenging for rival label printers. With the 3240, however, it's a snap due in part to two important technologies: 400 dpi print resolution and Intermec's patented PrecisionPrint technology for perfect label-to-label image resolution.

Intermec's exclusive PrecisionPrint technology ensures continuous image registration on the label within a tolerance of ±0.030?. Even on the smallest labels measuring only 0.1? in length where problems with image registration show up immediately, the 3240 excels.

In addition to printing on small or oddly shaped labels, the 3240 is perfect for printing on a variety of difficult to print on substrates, such as Kaptron or ultra-smooth polyesters and synthetics. That's why so many organizations in electronics, pharmaceuticals, telecommunications and health care have turned to Intermec for printers.

Beyond the power and precision, the __($mfg->name) EasyCoder 3240 is the printer of choice when the application calls for extremely small label printing of complex images on unique label materials.

Physical Characteristics Length: 43.8 cm (17.25?) Height: 27.7 cm (10.9?) Width: 21.1 cm (8.3?) Weight: 14.5 kg (32 lbs.)

Print Registration

  • PrecisionPrint technology yields consistent image placement over an entire 6,000 inch roll of media.
  • Image accuracy is within .030 of an inch in batch or print and retract modes

Print Specifications Element: 0.062 mm (0.00246?) Maximum Length: Unlimited Maximum Width: 64 mm (2.5?) ?X? Dimension: 0.06 to 1.27 mm (2.5 to 50 mil) Speed: 51, 77, 102 mm /sec (Select 2?, 3?, or 4?/sec) Resolution: 16 dots/mm (406 dpi)

Media Specifications Roll: 152 m (6000? linear) Roll Dimensions: 213 mm (8.38?) Liner Width: 12.7 to 68.6 mm (.5 to 2.7?) Thickness: .08 to .31 mm (0.003 to 0.012?) Length: 2.5 to 610 mm (0.1 to 24?) Core Size: 76 mm (3?) Ribbon Specifications Roll: 152 m (6000? linear) Width: 30 or 71 mm (1.2 or 2.8?)

__($mfg->name) EasyCoder 3240 Standard Features

  • Very high print resolution of 406 dpi
  • Engineered for small label printing
  • Supports printing on Kapton® materials
  • Digital thermal compensation ? dot-by-dot-electronics for excellent print quality, even for rotated bar codes
  • Compatible with Intermec's printers and supports 86XX printers in 5 and 10 mil emulation mode
  • 128K NVRAM for permanent storage of downloaded fonts, graphics, and label formats

Communications Rate: 1,200 to 19,200 bps Flow Control: XON/XOFF ready/busy Asynchronous: RS-232-C, RS-422, RS-485

Fonts and Graphics

  • 21 resident bitmapped fonts (includes OCR-A and OCR-B)
  • 3 resident outline fonts
  • Supports user-defined fonts and graphics

Language

  • IPL is an advanced printer programming language that includes many features not available in other bar code printers
  • IPL2-Fully backward compatible with Intermec IPL printers
  • Advanced bar code algorithms handle all required encodation
  • Error detection protocols verify secure data transmission
  • Command errors and printer status are easily identified to your host
  • Communicates in printable ASCII or control characters

__($mfg->name) EasyCoder 3240 Connectivity

  • Serial interface standard
  • Centronics Parallel interface optional
  • Internal Ethernet interface optional
  • Internal IBM Twinax or Coax Interface option

Software

  • LabelShop START label design and print software
  • Intermec InterDriver standard Windows 3.x, 9x, NT 4.0/5.0, Windows 2000
  • Intermec ActiveX® controls standard Windows 9x, NT 4.0/5.0
  • PrintSet printer configuration utility Windows 3.x, 9x, NT 4.0/5.0
  • NetPilot + Thin Wizard network configuration utility (with optional Ethernet) Windows 9x, Windows NT 4.0/5.0

Character Sets Code page 850, French, German, ISO 256 character, Italian, Kanji/Katakana (optional), Norwegian/Danish, Spanish, Swedish/Finnish, Swiss, UK ASCII, USA, ASCII

Power Supply 100, 115, 200 and 230 V AC + 10%; 50 Hz to 60 Hz

Environment Operating Temperature: 4º to 40ºC (40º to 104ºF) Storage Temperature: 0º to 70ºC (32º to 158ºF) Humidity: Non-condensing (10-90%)

Bar code Symbologies Code 2 of 5, Code 11, Code 39, Code 93, Code 128, Codabar, HIBC, Interleaved 2 of 5, Postnet, UPC/EAN, JIS-ITF 2D: Code One, Code 16K, Code 49, DataMatrix, MaxiCode, PDF417, QR Code

Regulatory Approvals Complies with all FCC Part 15, Class A; CISPR 22 Class B; ICES-003 Class B; UL, CSA & TUV GS agency approved; CE, NOM & C-TIC

__($mfg->name) EasyCoder 3240 Options Memory expansion to 512K NVRAM; Bitmap and outline Kanji/Katakana; RF Gateway (902-928 MHz)

Extended Details
Refine Your Options
Shop By
Shopping Options
Interface Options
  1. Serial (13)
  2. Ethernet (4)
  3. Parallel (4)
  1. Intermec EasyCoder 3240 Barcode Label Printer
    Part #: 3240B0020000 | SKU: INT47287

    EasyCoder 3240, Thermal transfer Printer (406 dpi with 115 VAC Power supply and US Cord, Serial Interface and 512K NVRAM)
  2. Intermec EasyCoder 3240 Barcode Label Printer
    Part #: 3240B0120000 | SKU: INT47288

    EasyCoder 3240, Thermal transfer Label Printer (406 dpi with 115 VAC Power supply and US Cord, Serial and Parallel Interfaces, and 512K NVRAM)
  3. Intermec EasyCoder 3240 Barcode Label Printer
    Part #: 3240B0320000 | SKU: INT47290

    EasyCoder 3240, Thermal transfer Printer (115 VAC Power supply with US Cord, Serial and Twinax Interfaces and 512K NVRAM)
  4. Intermec EasyCoder 3240 Barcode Label Printer
    Part #: 3240B0420000 | SKU: INT47291

    EasyCoder 3240, Thermal transfer Printer (115 VAC Power supply with US Cord, EasyLAN 10i2 Internal Ethernet Interface, 512K NVRAM and Standard flash)
  5. Intermec EasyCoder 3240 Barcode Label Printer
    Part #: 3240B2010000 | SKU: INT47292

    EasyCoder 3240, Thermal transfer Label Printer (406 dpi with 220-240 VAC Power supply and European Cord, Serial Interface, and 128K NVRAM)
  6. Intermec EasyCoder 3240 Barcode Label Printer
    Part #: 3240B2110000 | SKU: INT47293

    EasyCoder 3240, Thermal transfer Printer (220-240 VAC Power supply with European Cord, Serial and Parallel Interfaces and 128K NVRAM)
  7. Intermec EasyCoder 3240 Barcode Label Printer
    Part #: 3240B2410000 | SKU: INT47294

    EasyCoder 3240, Thermal transfer Printer (220-240 VAC Power supply with European Cord, EasyLAN 10i2 Internal Ethernet, 128K NVRAM and Standard flash)
  8. Intermec EasyCoder 3240 Barcode Label Printer
    Part #: 3240B0220000 | SKU: INT47289

    EasyCoder 3240, Thermal transfer Printer (115 VAC Power supply with US Cord, Serial and Coax Interfaces and 512K NVRAM)
  9. Intermec EasyCoder 3240 Barcode Label Printer
    Part #: 3240B3410000 | SKU: INT60583

    EasyCoder 3240, Thermal transfer Printer (100 VAC Power supply and Japan Cord, Serial and EasyLAN 10i Ethernet Interfaces and 128K NVRAM)
  10. Intermec EasyCoder 3240 Barcode Label Printer
    Part #: 3240B1410000 | SKU: INT60584

    EasyCoder 3240, Thermal transfer Printer (406 dpi with 220-240 VAC Power supply with UK Cord, Serial, Parallel and EasyLAN 10i2 Internal Ethernet Interfaces, 128K NVRAM and Standard flash)

Items 1 to 10 of 15 total

Page:
  1. 1
  2. 2
