Intermec CK31 Mobile Computer

Intermec CK31 Mobile Computer

Intermec CK31 Mobile Computer

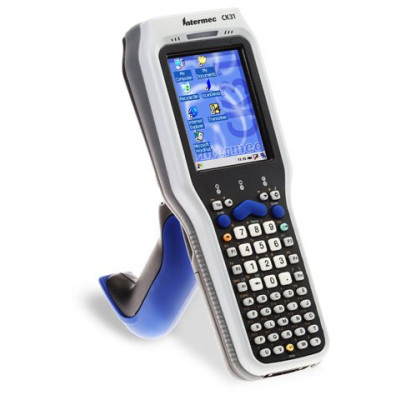

The Intermec CK31 mobile data collection terminal continues the tradition of delivering on Intermec's promise of rugged, reliable computing, thoughtful ergonomic design and high throughput. The CK31 delivers the right blend of features and performance with the Microsoft Windows CE .NET operating system to provide the optimum combination of real time operation, tools support and standard connectivity.
Discontinued - Need Assistance
See all options
Intermec CK31 Specs Intermec CK31 Specs (pdf)
Physical Description:
The CK31 is a rugged handheld mobile data collection computer featuring an embedded Microsoft Windows CE .NET operating system and an Intel Xscale PXA255 processor.
Operating System:
Microsoft Windows CE.NET 4.2
Radio:
Integrated 2.4 GHz IEEE 802.11g and IEEE 802.11b

Physical Characteristics
Length: 233 mm (9.2 in.)
Width: 71 mm (2.8 in.) at grip
Height: 41 mm (1.6 in.) at grip area
Weight: 611 grams (21 oz.)

Hardware
Microprocessor: Intel Xscale PXA255, 400 MHz
Memory: 64 MB RAM and 64 MB non-volatile Flash
Memory/Storage Extension: Secure Digital (SD) card slot, user accessible

Bar code Scanning
Scan Engine: Options for 1D linear imager, 2D area imager and multiple lasers (standard, long range and advanced long range)
Symbologies Read: All popular 1D and 2D symbologies including:Code 39, I 2 of 5, S 2 of 5, Matrix 2 of 5, Code 128, Code 93, Code 93i, Codabar, Codablock, MSI, Plessey, UPC, EAN/EAN128, ISBT128, Code 11, RSS, Telepen, PDF417, Micro-PDF417 plus 2D support for UCC-EAN Composite, Maxicode, Datamatri, QR Code

Power
Battery Type/Supply: Lithium-Ion 2400 mAh, 7.2V with 10 minutes RAM backup (supercap)
Battery Life: 8 or more hours at typical usage level
Recharging Time: 3-4 hous

Environment
Operating Temp: -20° to 50° C (-4° to 122° F)
Storage Temp: -20° to 60° C (-4° to 140° F)
Recharging Temp: 0° to 40° C (32° to 104° F)
Environmental Protection: IP64 certified. Completely sealed for dirt and dust, and protected from splashing water and rain
Drop Survival: Multiple 1.5 m (5 ft.) drops to steel or concrete; limited drops at 1.8 m (6 ft.)

Humidity: 10 to 95% non-condensing
Electrostatic Discharge: 6KV contact, 12KV air
Vibration and shock protection: Tested to MIL-PRF-28800F standards

Display
 240 x 320 (1/4 VGA) backlit trans.ective display with 3.5" diagonal supporting 16-bit color depth (65K colors) and resistive panel touch screen. Integrated stylus storage slot on backside of computer.

Keypad
 Bezeled elastomeric keypad with 52-key alphanumeric layout including 4 function (F) keys for one-touch convenience. Options* for 42-key function/numeric and 50-key alphanumeric.

Interfaces
 Options* for Bluetooth and Ethernet 10/100 base T docking (batch model)

Software
 Terminal Emulation: VT/ANSI, 5250, 3270. Supports Intermec TE2000* and third party solutions, RDP/Remote Terminal Services
Development Environments: Embedded Visual C++ 4.0, .NET Compact Framework (VB .NET and C#)
Browser support: IE6 and Intermec dcBrowser and iBrowse
Software Development Kit: Supports device-specific features and bar code scanning
Bundled productivity applications: WordPad, Transcriber and Imager scan demo program

Integrated Radio
 Data Rates: Up to 54 Mbps per 802.11g; 11 Mbps per 802.11b
Antenna: Internal
Standards Compliant: IEEE 802.11g (2.4 Ghz.- OFDM)IEEE 802.11b (2.4 GHz - DSSS)
Radio Power: 50 mW
Security: WEP, WPA, 802.1x (EAP-TLS, TTLS, LEAP, PEAP), Microsoft VPN*
Certifcations: Wi-Fi, WPA
Cisco Compatible logo indicates compatibility with a Cisco infrastructure

Device Management
 Centralized remote support capability; Configures, updates and maintains single devices or entire populations; Real-time or batch, wired or wireless; Based on Wavelink Avalanche with Intermec’s value added utilities

Speaker
 Loud (70 dB) programmable "beeper" with adjustable frequency and duration for scanning feedback or audio indicator under program control

Accessories
 Vehicle mount docks: Non-powered. 3rd party powered docks available.
Communications and charging docks: Single bay communications cradle with serial/USB/Ethernet*, 4-slot communications dock with serial/Ethernet.
Chargers: 4-slot battery charger, 4-slot terminal charge-only dock.
I/O interface: USB version 1.1 (through dock) or serial RS-232 (through dock or adapter)
Serial adapters: Snap-on for DB9 interface for decoded and undecoded tethered scanners.

Regulatory Approvals
 cCLus Listed, GS, NOM-NYCE, GOST, CE, TISI, DGT, BSMI, IDA, NTC, MIC, SRRC, VNPT, MIC, FCC Part 15/ICES-003/EN55022/CISPR 22 Class B, CDRH 21 CRF 1040 Class II (LASER version only)

Regulatory Approvals (Non-Incendive Option)
 UL Listed, UL 1604 and C22.2 No. 157
Gases:  Class I - Groups A, B, C, D
Dusts:   Class II - Groups F, G
Fibers and flyings:  Glass III
North America only

* Future release
