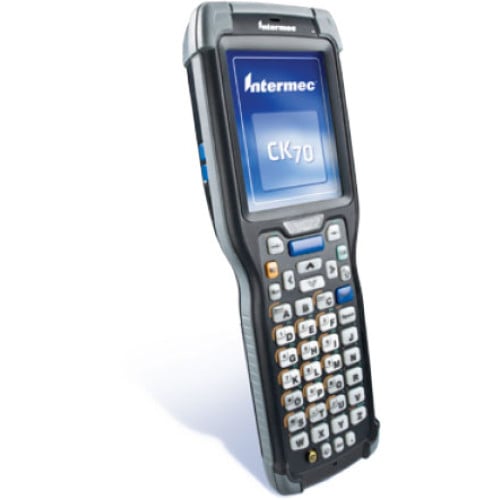

Intermec CK70 Handheld Computer

Intermec CK70 Handheld Computer

The Intermec CK70 is the next-generation, ultra-rugged mobile computing solution designed to increase user efficiency and improve customer service in demanding courier express and parcel delivery environments. In addition to being 12% smaller and lighter than other form factors in its ultra-rugged class, the CK70 supports workers in this fast moving, mobile environment with an application specific keyboard layout that is both slender and back-lit to allow for effortless, all day single-handed use. Intermec has developed the industry's fastest imaging engine, capable of scanning bar codes moving at up to 12.7m (500 in) per second, enabling the CK70 to achieve high read rates even in a highly dynamic work environment. The CK70 aiming system, featuring bright white LED illumination and a red laser aimer optimized for all lighting conditions, projects downward at a 35 degree angle allowing easier scanning of bar codes on parcels and enabling your mobile workers to view the mobile computer screen while scanning. The CK70 includes a brilliant VGA display with a wear-resistant touch panel providing twice the service life of older touch panel technologies. Industrial grade polycarbonate keys with indestructible laser-etched legends ensure that the CK70 stays in your workers' hands instead of the repair depot.

Standard Configuration:
• Integrated Camera Option: 5-Megapixel autofocus color camera with LED flash
• Global Positioning System: 12-channel Integrated GPS; Network-independent autonomous mode; supports assisted operation via WAN
• Accelerometer: Embedded accelerometer enables automatic or application-specific features such as screen rotation or system suspend
• IrDA
• Integrated Bluetooth® Class II, Version 2.1+EDR

Display

• 8.9cm (3.5in) Transmissive VGA
• 480 x 640 pixels
• 65,536 (16-bit RGB) Colors
• High-Durability Touch Screen
• LED Backlight
• Ambient Light Sensor

Environment

Drop Survival: 2.4 m (8ft.) to concrete per MIL-STD 810G, 1.8m (6 ft) to concrete across operating temperature
range per MIL-STD 810G 2,000 (1m) tumbles per IEC 60068-2-32 specification
Electrostatic Discharge: +/- 15 kV air discharge; +/- 8 kV direct discharge
Humidity: Relative Humidity: Non-condensing, 95%
Operating Temperature: -20° C to +60° C (-4° F to +140° F)*
Recharging Temperature: +5° C to +35° C (41° F to 95° F)
Storage Temperature: -30° C to +70° C (-22° F to +158° F)
Environmental Protection: Rain & Dust Resistance: IP67
Non-Incendive Version: Products in the 70 Series family with NI certification comply with the following:
• Suitable for use in Division 2 locations
• Safety: cULus Listing – ISA/ANSI 12.12.01
• Gases: Class I – Groups A, B, C, D
• Dusts: Class II – Groups F, G
• Fibers and flyings: Class III
• * Max Ambient: 50°C T6

Keypad

• Large Alpha with backlit Numeric legends
• Alphanumeric
• Both keypad options feature hard keycaps with laser-etched legends.

Memory and Storage

Flash ROM: 1 GB Flash (800 MB available)
Memory/Storage Extensions: Customer-accessible micro-SD slot for removable memory cards up to 32 GB
RAM Memory: 512 MB RAM (384 MB available)

Microprocessor

Multi-Processor Architecture: Texas Instruments® 1 GHz multi-engine processor architecture

Operating System

Microsoft Windows Embedded Handheld 6.5

Physical Characteristics

Height: 4.3 cm (1.69 in)
Length: 23.7 cm (9.33 in)
Width: 8.0 cm (3.16 in); grip area 6.42cm (2.53 in)
Weight: 562 g (19 oz) with battery

Power

Battery Capacity: 3.7 V, 5200 mAh
Battery Type/Supply: IEEE 1725 compliant, Li-Ion, removable, rechargeable

Software

Application Development:
Intermec Developer Library: www.intermec.com/dev

Apps and Components:
• VERDEX (Imaging-based data extraction and verification)
• eMDI (Mobile Document Imaging)

Data Management:
• Skynax® Mobile Communications

Smart Systems Support:
• Device Management: Intermec SmartSystems™ support includes ScanNGo provisioning for use alone or with device management software from Intermec ISVs
• Device Health Monitoring: Remote access requires SmartSystem Management option

Scan Engine Options

EA30 high performance motion-tolerant 2D Imager; white LED illumination; red laser aimer optimized for all lighting conditions; 35 degree downward scan angle; Capable of scanning all common 1D and 2D barcodes; 1D as small as 5 mil; PDF as small as 6.6 mil; Data Matrix as small as 7.5 mil; and standard UPC codes from distances up to 33 cm (13 in).

Extended Details
Refine Your Options
  1. CK70AA5KNU6W2100 - Intermec CK70 Handheld Computer

    CK70, ALPHANUMERIC, EA30 STANDARD RANGE IMAGER, NO CAMERA, 802.11a/b/g/N, Bluetooth, UMTS/HSPA (NA-HAC), GPS, WEH 6.5, WW ENGLISH
  2. CK70AA3KNF2W6100 - Intermec CK70 Handheld Computer

    CK70, 2D Imager, No Camera, Alphanumeric Keypad, 1GHz processor, Wi-Fi (802.11 n), Bluetooth, 512MB RAM/1GB ROM, Windows Embedded 6.5. Does not included necessary cables or accessories.
  3. CK70AB3KN14W1R00 - Intermec CK70 RFID RFID Reader

    CK70 RFID, 2D Imager, Large Alpha Keypad, No Camera, RFID, Windows Embedded Handheld 6.5, Bluetooth/Wi-Fi (802.11a/b/g/n) interfaces, 1GHz processor, 512MB RAM/1GB ROM. Does not include necessary interface cables.
  4. CK70AA3KC14W1R00 - Intermec CK70 RFID RFID Reader

    CK70 RFID, 2D Imager, Alphanumeric Keypad, Camera, RFID, Windows Embedded Handheld Pro, Bluetooth/Wi-Fi (802.11a/b/g/n) interfaces, 1GHz processor, 512MB RAM/1GB ROM. Does not include necessary interface cables.
  5. CK70AA3KCF2W6100 - Intermec CK70 Handheld Computer

    CK70, 2D Imager, Alphanumeric Keypad, Camera, Flex Net Gobi Radio, Windows Embedded Handheld 6.5, Bluetooth/Wi-Fi (802.11a/b/g/n) interfaces, 1GHz processor, 512MB RAM/1GB ROM. Does not include necessary interface cables.
  6. CK70AA3KCU2W2100 - Intermec CK70 Handheld Computer

    CK70, 2D Imager, Alphanumeric Keypad, Camera, North American UMTS, Bluetooth/Wi-Fi (802.11a/b/g/n) interfaces, Windows Embedded Handheld 6.5, 1GHz processor, 512MB RAM/1GB ROM. Does not include necessary interface cables.
  7. CK70AA5KNU3W5100 - Intermec CK70 Handheld Computer

    CK70, High Performance 2D Imager, AlphaNumeric Keypad, No Camera, UMTS - European, Windows Embedded Handheld.
  8. CK70AA3KC14W1R10 - Intermec CK70 RFID Non-Incendive RFID Reader

    CK70 RFID Non-Incendive, Non-Incendive, 2D Imager, Alpha-Numeric Keypad, Camera, RFID, Windows Embedded Handheld Pro, 1GHz processor, 512MB RAM/1GB ROM. Does not include necessary interface cables.
  9. CK70AA3KND6W3100 - Intermec CK70 Handheld Computer

    CK70, 2D Imager, Alphanumeric Keypad, No Camera, CDMA Verizon, Windows Embedded Handheld 6.5, 1GHz processor, 512MB RAM/1GB ROM. Does not include necessary interface cables.
  10. CK70AA3KCD6W3100 - Intermec CK70 Handheld Computer

    CK70, 2D Imager, Alphanumeric Keypad, Camera, CDMA Verizon, Bluetooth/Wi-Fi (802.11a/b/g/n), CDMA Verizon, Windows Embedded 6.5, 1GHz processor, 512MB RAM/1GB ROM. Does not included necessary interface cables.
