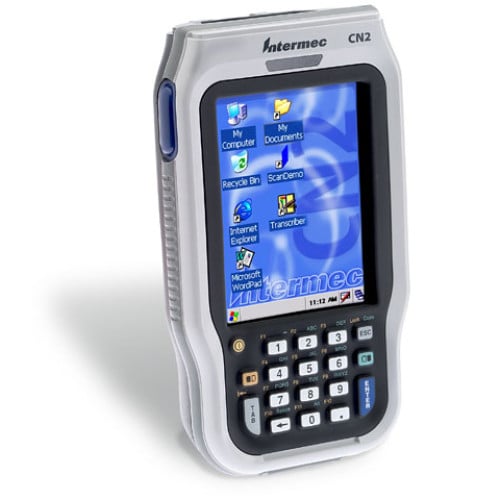

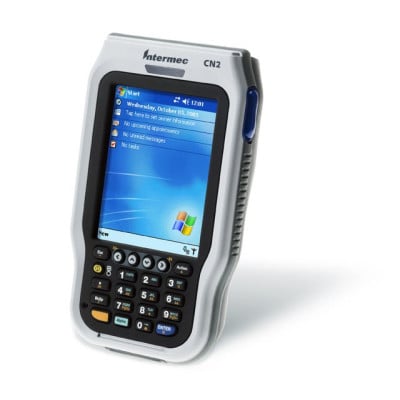

Intermec CN2 Series Mobile Computer

Intermec CN2 Series Mobile Computer

Intermec CN2 Series Mobile Computer

The CN2 Series uses a PDA form factor built to withstand the rigors of field use and provides features and functionality common to higher priced, larger mobile devices. The feature set is packaged to survive heat, humidity and multiple drops to concrete or steel. The CN2 Series has Microsoft Windows CE 4.2, Intermec's SmartSystem device management capabilities for updates and maintenance, 128MB RAM/64MB Flash, Batch operation, and navigation and 18 Key numeric keypad.
Discontinued - Need Assistance
See all options
Intermec CN2 Series Specs Intermec CN2 Series Specs (pdf)
Physical Description:
The is a rugged pen based handheld mobile data collection computer featuring an embedded Microsoft Windows operating system and an Intel XScale PXA255 processor.
Operating System:
Microsoft Windows CE .NET 4.2
Radio:
Integrated 2.4 GHz IEEE 802.11g and IEEE 802.11b

Physical Characteristics
Length: 147 mm (5.8 in.)
Width: 86 mm (3.4 in.)
Height: 35 mm (1.4 in.)
Weight: 370 grams (11.9 oz.)

Hardware
Microprocessor: Intel Xscale PXA255, 400 MHz
Memory: 128 MB SDRAM and 64 MB non-volatile Flash
Memory/Storage Extension: Secure Digital (SD) card slot, user accessible. Up to 1GB storage capacity.

Barcode Scanning
Scan Engine: Integrated 1D linear imager
Symbologies Read: Supports many popular 1D symbologies including: Codabar, Code 39, Code 128, Interleaved 2 of 5, and limited forms of EAN and UPC.

Power
Battery Type/Supply: Lithium-Ion 2150 mAh, 3.7V with 5 minutes NiMH RAM backup
Battery Life: 8-12 hours, application dependent
Recharging Time: 4 hours

Environment
Operating Temp: 0° to 50° C (32° to 122° F)
Storage Temp: -10° to 50° C (14° to 122° F)
Environmental Protection: IP64 certified
Drop Survival: Multiple 3ft. drops to steel or concrete

Humidity: 5 to 95% non-condensing
Electrostatic Discharge: 6KV contact, 12KV air
Vibration and shock protection: Tested to MIL-PRF-28800F standards

Display
 240 x 320 (1/4 VGA) transflective display with 3.5” diagonal supporting 16-bit color depth (65K colors) and resistive panel touch screen. Integrated stylus storage slot.

Keypads
 Elastomeric keypad with 18 key numeric layout.

Software
 Development Environments: Embedded Visual C++ 4.0, .NET Compact Framework (VB .NET and C#)
Browser support: IE6 compatible
Software Development Kit: Supports device-specific features and bar code scanning
Bundled productivity applications: WordPad, Transcriber and Imager scan demo program

Scan Activation
Left/Right scan buttons, with continuous scan mode.

Integrated Radio
 Data Rates: Up to 54 Mbps with 802.11g; 11 Mbps with 802.11b
Antenna: Internal
Standards Compliant: IEEE 802.11g (2.4 GHz - OFDM), IEEE 802.11b (2.4 GHz - DSSS)
Radio Power: 802.11g – 16mW, 802.11b – 30mW
Security: WEP, WPA, 802.1x (EAP-TLS, TTLS, LEAP, PEAP)
Certifications: Wi-Fi, WPA, Cisco Compatible logo indicates compatibility with a Cisco infrastructure

Device Management
 SmartSystem Support: A centralized one-to-one device management solution for remote support capability. Also features Wavelink Avalanche for remote maintenance of entire populations of devices. Both solutions allow the user to configure, update or maintain the CN2 mobile computers in real time or batch.

Speaker
 Loud (80 dB) programmable “beeper” with adjustable frequency and duration for scanning feedback or audio indicator under program control. The CN2B features an audio jack.

Power
 Battery Type/Supply: Lithium-Ion 2150 mAh, 3.7V with 5 minutes NiMH RAM backup
Battery Life: 8-12 hours, application dependent
Recharging Time: 4 hours

Accessories
 Communications and charging dock: Single bay communications cradle with USB or V90 modem dock
I/O interface: USB version 1.1 (through dock)
User Accessories: holster, spare battery, hand strap, stylus kit, screen protector kit

Regulatory Approvals
 UL and cUL Listed, UL 60950 and UL 1604 and CSA 22.2 No. 157, FCC Part 15, TUV, CE mark

Extended Details
Refine Your Options
Shop By
Shopping Options
IP Rating
  1. IP54 (1)
Interface Options
  1. Wi-Fi (2)
  2. Bluetooth (1)
Style
  1. Phone-size (3)
Operating System
  1. Windows CE 4.2 Pro (1)
  2. Windows Mobile (1)
  3. Windows Mobile 2003 (1)
Scanner Type
  1. Imager (2)
RAM Memory
  1. 128 MB (1)
  2. 64 MB (1)
Display Resolution
  1. 240 x 320 (2)
  1. Intermec CN2BA21E40004804 Mobile Computer

    Intermec CN2BA21E40004804 Mobile Computer
    Part #: CN2BA21E40004804 | SKU: INT20618

    CN2B, 22 key Numeric Keypad, Standard Linear Imager, Windows Mobile 2003, Bluetooth 802.11b/g FCC Radio
  2. Intermec CN2A11E10N2804 Mobile Computer

    Intermec CN2A11E10N2804 Mobile Computer
    Part #: CN2A11E10N2804 | SKU: INT20905

    CN2 Wireless Mobile Computer (Color Display, 128MB SDRAM, 64MB Flash, 400 MHz XScale Processor, 10 key Scroll Navigation, Standard Linear Imager, Windows CE 4.2, No Storage Card, No Bluetooth and 802.11g-FCC)
  3. Intermec CN2BB21E40004803 Mobile Computer

    Intermec CN2BB21E40004803 Mobile Computer
    Part #: CN2BB21E40004803 | SKU: INT77869

    CN2B, Linear ImagerWM 2003 WWEStd S/WNo SDBT

3 Item(s)

Recommended Accessories for Model: Intermec CN2 Series Mobile Computer

  • Intermec CN2-USB-STARTER Accessory
    Part #: CN2-USB-STARTER | SKU: INT21583

    CN2 Series USB Starter Kit. Includes everything you need to run your CN2: charging/communications cradle, USB cable, US power supply and AC line cord.

  • Honeywell 805-638-001 Mounting Hardware and Stands
    Part #: 805-638-001 | SKU: HON20624

    Mounting Kit, CK60/CN2/CN70 Vehicle Dock RoHS. Allows mounting of Vehicle Dock (Part# 225-712-001) in route vehicle. Consists of one 4 3/4" adjustable pivot arm with two 1 1/2" stainless steel balls, steel offset plate and assembly hardware. Due to wide range of possible applications, this kit does not include hardware for securing mount to vehicle.
    MSRP: $204.38 Price: $134.31

  • Honeywell 346-069-105 Carrying and Protective Accessories
    Part #: 346-069-105 | SKU: HON46190

    Screen Protector (10 Each- Requires Cleaner (Part# 346-065-101)) for the CN2
    MSRP: $96.46 Price: $64.32

  • Harvard Battery HBM-CN2L Battery
    Part #: HBM-CN2L | SKU: HAR157409

    Replacement battery for the Intermec CN2. Original part number 203-778-001. 3.7 volts 2400 mAh.
    MSRP: $39.00 Price: $34.00

  • Honeywell 236-090-001 Cables, Connectors, and Adapters
    Part #: 236-090-001 | SKU: HON58949

    CN2 Cable, Hirose to DB9M, 48" (CN2 Hirose connector to DB9M for connection to a serial device.)
