The Intermec CN70 has been discontinued. No direct replacement is available. Please contact us for a suitable substitute.
Advanced barcode imaging technology with motion tolerance for snappy scanning and white illumination with laser aiming for high read rates

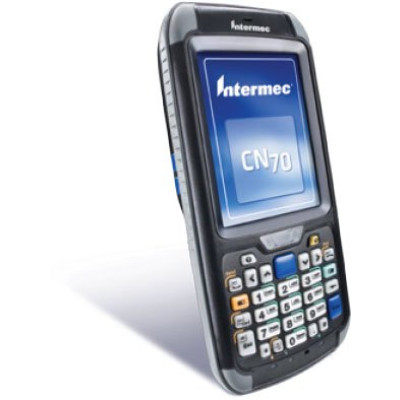

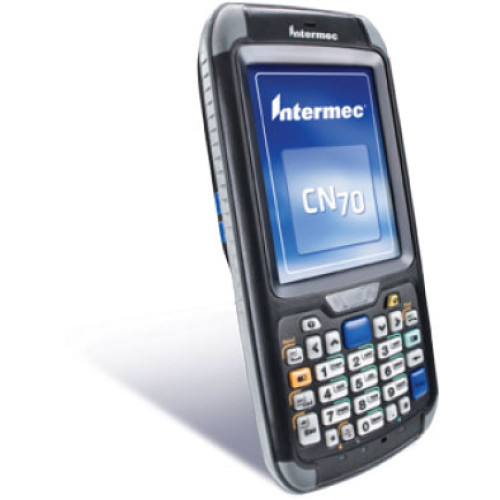

The Intermec CN70 is optimized for field mobility environments. The CN70 is optimal for mobile field service and transportation workers who need power and performance in a compact form factor. The CN70 features a complete set of intelligent business solution software, tools, services and training modules, delivered by Intermec, to create the smoothest and smartest possible integration into your workflows. The CN70 ultra-rugged mobile computer is optimal for Field Service and Transportation applications that demand a compact form factor with power and performance and no compromise on ruggedness. Next generation architecture, purpose-built ergonomic design combined with market-leading wireless communications and data capture capabilities deliver optimal worker productivity in the most demanding field mobility environments.
The Intermec CN70 is also known as the
Intermec Technologies CN70
CN70, Mobile Computer - Wi-Fi (802.11a/b/g/n) - 2D Imager Scanner (EA30 Scan Engine) - Windows Embedded Handheld - 512MB RAM - 1GB ROM - Numeric Keypad - Bluetooth - Cables and Charging Cradle Not Included
Mobile computers are made to be used on the go but few are so feature rich for field mobility as the Intermec CN70. No matter what your application environment is, the CN70 has the necessary communication options for delivery services, off-site asset tracking, and can even be used in a warehouse for inventory purposes. If your business has a need for devices that will be on and off site, the CN70 is a single device that will fit into either space. While not as over the top rugged as the CK-series it still has an IP67 rating for use outdoors. If all you need is a basic inventory device the CN70 is not the most cost effective choice, but for any application that needs an easy to use, compact device that works in a variety of environments, it is a one stop solution.
70 Series Accessories, Vehicle Dock, CN70/CN70e, (Provides USB (Part# HDB15M) and RS-232 (Part# DB9M) receptacles. Requires 805-638-001 Mounting Kit and power option listed below. Optional USB cable VE011-2016 and/or VE011-2018.)
Standard Configuration: • Integrated Camera Option: 5-Megapixel autofocus color camera with LED flash • Global Positioning System: 12-channel Integrated GPS; Network-independent autonomous mode; supports assisted operation via WAN • Accelerometer: Embedded accelerometer enables automatic or application-specific features such as screen rotation or system suspend • IrDA • Integrated Bluetooth® Class II, Version 2.1+EDR
• 8.9cm (3.5in)Transmissive VGA • 480 x 640 pixels • 65,536 (16 bit RGB) Colors • High-Durability Touch Screen • LED Backlight • Ambient Light Sensor
Drop Survival: 2.4 m (8ft.) to concrete per MIL-STD 810G, 1.8m (6 ft) to concrete across operating temperature range per MIL-STD 810G 2,000 (1m) tumbles per IEC 60068-2-32 specification Electrostatic Discharge: +/- 15 kV air discharge; +/- 8 kV direct discharge Humidity: Relative Humidity: Non-condensing, 95% Operating Temperature: -20° C to +60° C (-4° F to +140° F)* Recharging Temperature: +5° C to +35° C (41° F to 95° F) Storage Temperature: -30° C to +70° C (-22° F to +158° F) Environmental Protection: Rain & Dust Resistance: IP67 Non-Incendive Version: Products in the 70 Series family with NI certification comply with the following: • Suitable for use in Division 2 locations • Safety: cULus Listing – ISA/ANSI 12.12.01 • Gases: Class I – Groups A, B, C, D • Dusts: Class II – Groups F, G • Fibers and flyings: Class III • * Max Ambient: 50°C T6
• Numeric keypad with backlit shifted plane legends • QWERTY keypad • All keypad options feature hard keycaps with laser-etched legends.
Memory and Storage
Flash ROM: 1 GB Flash (800 MB available) Memory/Storage Extensions: Customer-accessible micro-SD slot for removable memory cards up to 32 GB RAM Memory: 512 MB RAM (384 MB available)
Apps and Components: • VERDEX (Imaging-based data extraction and verification) • eMDI (Mobile Document Imaging)
Smart Systems Support: • Device Management: Intermec SmartSystems™ support includes ScanNGo provisioning for use alone or with device management software from Intermec ISVs • Device Health Monitoring: Remote access requires SmartSystem Management option
Scan Engine Options
EA30 high performance motion-tolerant 2D Imager; white LED illumination; red laser aimer optimized for all lighting conditions; 35 degree downward scan angle; Capable of scanning all common 1D and 2D barcodes; 1D as small as 5 mil; PDF as small as 6.6 mil; Data Matrix as small as 7.5 mil; and standard UPC codes from distances up to 33 cm (13 in).
