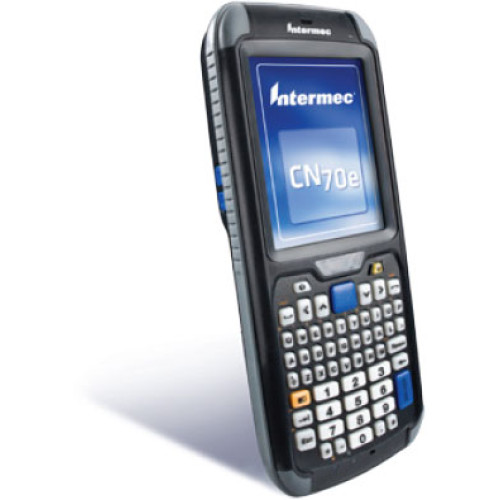

Intermec CN70e Mobile Computer

Intermec CN70e Mobile Computer

Power-packed mobile computing in terms of size, weight and ruggedness Superior computing performance and application response time Flexible radio technology provides optimal network coverage and a superior solution for implementing least cost routing strategies Exceptional battery life for long device run time without extra size and weight Advanced barcode imaging technology with motion tolerance for snappy scanning and white illumination with laser aiming for high read rates Brilliant display with extended life touch panel On-board diagnostics provides device health visibility and reduces downtime Full compatibility with printers, application software, communications, and a complete set of peripherals and accessories enabling a comprehensive enterprise business solution Non-Incendive option for hazardous locations CN70 and CN70e
Discontinued - Need Assistance
See all options

Standard Configuration:
• Integrated Camera Option: 5-Megapixel autofocus color camera with LED flash
• Global Positioning System: 12-channel Integrated GPS; Network-independent autonomous mode; supports assisted operation via WAN
• Accelerometer: Embedded accelerometer enables automatic or application-specific features such as screen rotation or system suspend
• IrDA
• Integrated Bluetooth® Class II, Version 2.1+EDR

Display

• 8.9cm (3.5in)Transmissive VGA
• 480 x 640 pixels
• 65,536 (16 bit RGB) Colors
• High-Durability Touch Screen
• LED Backlight
• Ambient Light Sensor

Environment

Drop Survival: 2.4 m (8ft.) to concrete per MIL-STD 810G, 1.8m (6 ft) to concrete across operating temperature
range per MIL-STD 810G 2,000 (1m) tumbles per IEC 60068-2-32 specification
Electrostatic Discharge: +/- 15 kV air discharge; +/- 8 kV direct discharge
Humidity: Relative Humidity: Non-condensing, 95%
Operating Temperature: -20° C to +60° C (-4° F to +140° F)*
Recharging Temperature: +5° C to +35° C (41° F to 95° F)
Storage Temperature: -30° C to +70° C (-22° F to +158° F)
Environmental Protection: Rain & Dust Resistance: IP67
Non-Incendive Version: Products in the 70 Series family with NI certification comply with the following:
• Suitable for use in Division 2 locations
• Safety: cULus Listing – ISA/ANSI 12.12.01
• Gases: Class I – Groups A, B, C, D
• Dusts: Class II – Groups F, G
• Fibers and flyings: Class III
• * Max Ambient: 50°C T6

Keypad

• Numeric keypad with backlit shifted plane legends
• QWERTY keypad
• All keypad options feature hard keycaps with laser-etched legends.

Memory and Storage

Flash ROM: 1 GB Flash (800 MB available)
Memory/Storage Extensions: Customer-accessible micro-SD slot for removable memory cards up to 32 GB
RAM Memory: 512 MB RAM (384 MB available)

Microprocessor

Multi-Processor Architecture: Texas Instruments® OMAP 1 GHz multi-engine processor architecture

Operating System

Microsoft Windows Embedded Handheld 6.5

Physical Characteristics

Height: 3.4 cm (1.34 in)
Length: 16.9 cm (6.65 in)
Width: 8.0 cm (3.15 in)
Weight: 450 g (15.9 oz) with battery

Power

Battery Capacity: 3.7 V, 4000 mAh
Battery Type/Supply: IEEE 1725 compliant, Li-Ion, removable, rechargeable

Software

Application Development:
Intermec Developer Library: www.intermec.com/dev

Apps and Components:
• VERDEX (Imaging-based data extraction and verification)
• eMDI (Mobile Document Imaging)

Smart Systems Support:
• Device Management: Intermec SmartSystems™ support includes ScanNGo provisioning for use alone or with device management software from Intermec ISVs
• Device Health Monitoring: Remote access requires SmartSystem Management option

Scan Engine Options

EA30 high performance motion-tolerant 2D Imager; white LED illumination; red laser aimer optimized for all lighting conditions; 35 degree downward scan angle; Capable of scanning all common 1D and 2D barcodes; 1D as small as 5 mil; PDF as small as 6.6 mil; Data Matrix as small as 7.5 mil; and standard UPC codes from distances up to 33 cm (13 in).

Extended Details
  1. Intermec CN70e Mobile Computer
    Part #: CN70EN4KC00W1110 | SKU: INT177437

    Mobile Computer - WLAN - 2D Imager Scanner (EA30 Scan Engine) - Non-Incendive (NI) - Windows Embedded 6.5 - 512MB RAM - 1GB ROM - Numeric Keypad - Bluetooth - Camera - Cables and Charging Cradle Not Included
  2. Intermec CN70e Mobile Computer
    Part #: CN70EQ4KCU2W2100 | SKU: INT172283

    Mobile Computer - Wi-Fi (802.11a/b/g/n) - 2D Imager Scanner (EA30 Scan Engine) - Windows Embedded 6.5 - 512MB RAM - 1GB ROM - QWERTY Keypad - Bluetooth - Cables and Charging Cradle Not Included
  3. Intermec CN70e Mobile Computer
    Part #: CN70EQ4KC00W1110 | SKU: INT177438

    CN70e Non-Incendive, Qw, EA30, Camera, WLAN, WEH-P, WWE, SS/ /NI
  4. Intermec CN70e Mobile Computer
    Part #: CN70EN4KN00W1100 | SKU: INT172281

    CN70E ATEX, Num, EA30, NoC, WLAN, WEH-P, WWE, SS
  5. Intermec CN70e Mobile Computer
    Part #: CN70EN4KCU2W2100 | SKU: INT214853

    CN70e, Num,EA30,Cam,UMTS NA,WEH-U,WWE SS. Interface cables and charging cradle sold separately. USB Cable for single dock (Part# 236-209-001). Single slot charging cradle kit (Part# DX1A01A10). Quad dock charging cradle kit (Part# DX4A2111110).
  6. Intermec CN70e Mobile Computer
    Part #: CN70EQ4KNF2W6100 | SKU: INT183582

    CN70e, Qw,EA30,NoC,FLXNET,WEH-G,WWE, SS. Interface cables and charging cradle sold separately. USB Cable for single dock (Part# 236-209-001). Single slot charging cradle kit (Part# DX1A01A10). Quad dock charging cradle kit (Part# DX4A2111110).
  7. Intermec CN70e Mobile Computer
    Part #: CN70EQ6KDU2W2100 | SKU: INT306452

    CN70e, High Performance 2D Imager, QWERTY Keypad, Camera, North American UMTS Communication, Windows Embedded Handheld, WWE, Smart Systems. Interface cables and charging cradle sold separately. USB Cable for single dock (Part# 236-209-001). Single slot charging cradle kit (Part# DX1A01A10). Quad dock charging cradle kit (Part# DX4A2111110).
  8. Intermec CN70e Mobile Computer
    Part #: CN70EN7KDU2W2100 | SKU: INT306435

    CN70e, High Performance 2D Imager, Numeric Keypad, Camera, North American UMTS Communication, Windows Embedded Handheld, WWE, Smart Systems. Interface cables and charging cradle sold separately. USB Cable for single dock (Part# 236-209-001). Single slot charging cradle kit (Part# DX1A01A10). Quad dock charging cradle kit (Part# DX4A2111110).
  9. Intermec CN70e Mobile Computer
    Part #: CN70EQ6KDD6W3100 | SKU: INT306449

    CN70e, High Performance 2D Imager, QWERTY Keypad, Camera, Verizon CDMA Communication, Windows Embedded Handheld, WWE, Smart Systems. Interface cables and charging cradle sold separately. USB Cable for single dock (Part# 236-209-001). Single slot charging cradle kit (Part# DX1A01A10). Quad dock charging cradle kit (Part# DX4A2111110).
  10. Intermec CN70e Mobile Computer
    Part #: CN70EN7KN00W4100 | SKU: INT306439

    CN70e, High Performance 2D Imager, Numeric Keypad, No Camera, Wifi Communication, Windows Embedded Handheld, WWE, Smart Systems. Interface cables and charging cradle sold separately. USB Cable for single dock (Part# 236-209-001). Single slot charging cradle kit (Part# DX1A01A10). Quad dock charging cradle kit (Part# DX4A2111110).

Items 1 to 10 of 139 total

Page:
  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. ...
  7. 14

Recommended Accessories for Model: Intermec CN70e Mobile Computer

  • Honeywell SR61 Power Device
    Part #: 1-974028-025 | SKU: HON20787

    AC line cord
    Price: $19.14
  • Honeywell CK3 Accessory
    Part #: 236-209-001 | SKU: HON53881

    USB-A to USB-microB Cable - 1 meter
    MSRP: $69.92 Price: $57.37
  • Honeywell CN2 Accessory
    Part #: 805-638-001 | SKU: HON20624

    Mounting Kit, CK60/CN2/CN70 Vehicle Dock RoHS. Allows mounting of Vehicle Dock (Part# 225-712-001) in route vehicle. Consists of one 4 3/4" adjustable pivot arm with two 1 1/2" stainless steel balls, steel offset plate and assembly hardware. Due to wide range of possible applications, this kit does not include hardware for securing mount to vehicle.
    MSRP: $204.38 Price: $167.70
  • Honeywell Power Device
    Part #: 852-074-001 | SKU: HON310241

    Endcap Power Adapter, Cigaretter Lighter, Compatible with CN/CK70
    MSRP: $321.53 Price: $263.85
  • Honeywell CN4 Accessory
    Part #: 226-109-003 | SKU: HON28473

    Cable (Power, Dock to Fuse Block)
    MSRP: $91.44 Price: $75.48
