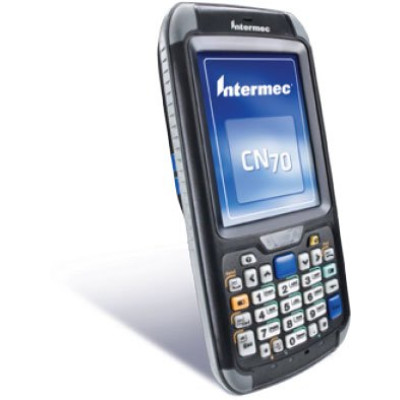

Intermec CN70 RFID RFID Reader

Intermec CN70 RFID RFID Reader

The Intermec CN70 RFID is the no-compromise, next generation of ultra-rugged mobile computers that adds passive UHF reading to the already impressive feature set of CN70 Series mobile computers. These devices combine advanced RFID reading and a no-compromise design with best-in-class ruggedness, battery life, and ergonomics.

Physical Characteristics

Length:
CN70 RFID: 16.9 cm (6.65 in)
CN70e RFID: 19.5 cm (7.66 in)
CK70 RFID: 23.7 cm (9.33 in)
Width:
CN70 RFID: 8.0 cm (3.15 in)
CN70e RFID: 8.0 cm (3.15 in)
CK70 RFID: 8.0 cm (3.16 in)
Depth:
CN70 RFID: 3.4 cm (1.34 in)
CN70e RFID: 3.4 cm (1.34 in)
CK70 RFID: 4.3 cm (1.69 in)
Weight:
CN70 RFID: 450 g (15.9 oz) with battery
CN70e RFID: 491 g (17.3 oz) with battery
CK70 RFID: 562 g (19 oz) with battery

Environment

Operating Temperature: -20° C to +60° C* (-4F° F to +140° F) - Max Ambient: 50° C T6
Storage Temperature: -30° C to +70° C (-22° F to +158° F)
Charging Temperature: +5° C to +35° C (41° F to 95° F)
Relative Humidity: Non-condensing, 95%
Rain and Dust Resistance: IP67
Drop Spec: 2.4m (8 ft.) to concrete per MILSTD 810G; 1.8m (6 ft.) to concrete across operating temperature range per MIL-STD 810G; 2,000 (1m) tumbles per IEC 60068-2-32 specification
Electrostatic Discharge: +/- 15 kV air discharge, +/- 8 kV direct discharge

Operating System

Microsoft Windows Embedded Handheld built on Windows 6.5.3 technology, Getting started information: www.windowsmobile.com/getstarted

Microprocessor

Texas Instruments 1GHz OMAP3 multi-engine processor architecture

Memory and Storage

RAM Memory: 512 MB RAM
1 GB Flash
Customer-accessible micro-SD slot for removable memory cards up to 32 GB

Display

• 8.9 cm (3.5 in) Transmissive VGA
• 480 x 640 pixels
• High-Durability Touch Screen
• 65,536 (16bit RGB) Colors
• LED Backlight
• Ambient Light Sensor

Communications Interface

USB – Full Speed 2.0 Host©
USB – Full Speed 2.0 Client©
IrDA

Software

Device Management: Intermec SmartSystems™ support includes ScanNGo provisioning for use alone or with device management software from Intermec ISVs
Device Health Monitoring: Remote access requires SmartSystem Management option
Application Development: Intermec Developer Library www.intermec.com/dev

Interfaces

Wireless: Wireless LAN: IEEE®802.11 a/b/g/n Dual Band WLAN
Security: WiFi Certified for WPA and WPA2, WAPI Certified
Authentication: 802.1x
Cisco Compatibility: CCXv4
Encryption: WEP (64 or 128 bit), AES, TKIP

Wireless PAN: Integrated Bluetooth® Class II, Version 2.1+EDR
Operating channels: 0 to 78 (2402-2480 MHz)
Data Rates: 1, 2, 3 Mbps
Antenna: Internal

Scanning Performance

Scan Engine: EA30 high performance motion tolerant 2D Imager; white LED illumination; red laser aimer optimized for all lighting conditions; 35 degree downward scan angle; capable of scanning all common 1D and 2D barcodes, 1D as small as 5 mil, PDF as small as 6.6 mil, DataMatrix as small as 7.5 mil, and standard UPC codes from distances up to 33 cm (13 in)

Extended Details
Refine Your Options
Shop By
Shopping Options
Keypad
  1. QWERTY (7)
  2. Numeric (4)
  1. CN70AQ5KN14W1R00 - Intermec CN70 RFID RFID Reader

    RFID Reader - 2D Imager (High Performance) - Windows Embedded Handheld - QWERTY Keypad - No Camera - Smart Systems - US - Cables and Charging Cradle Not Included
  2. CN70AQ5KN02W1R00 - Intermec CN70 RFID RFID Reader

    CN70 RFID, High Performance 2D Imager, QWERTY Keypad, No Camera, No Data Communication, RFID - European, Windows Embedded Handheld, WWE, Smart Systems.
  3. CN70AN3KC14W1R10 - Intermec CN70 RFID RFID Reader

    CN70 RFID, Non Incendive, Numeric Keypad, 2D Imager, RFID (FCC), US and CA, Windows Embedded Handheld, Smart Systems, Camera
  4. CN70AN5KD02W1R00 - Intermec CN70 RFID RFID Reader

    CN70 RFID, High Performance 2D Imager, Numeric Keypad, Camera, No Data Communication, RFID - European, Windows Embedded Handheld, WWE, Smart Systems.
  5. CN70AN5KN02W1R00 - Intermec CN70 RFID RFID Reader

    CN70 RFID, High Performance 2D Imager, Numeric Keypad, No Camera, No Data Communication, RFID - European, Windows Embedded Handheld, WWE, Smart Systems.
  6. CN70AQ3KN02W1R00 - Intermec CN70A ATEX RFID Reader

    CN70A ATEX, 2D Imager, QWERTY Keypad, No Camera, RFID (ETSI), Windows Embedded Handheld Pro
  7. CN70AQ5KD02W1R00 - Intermec CN70 RFID RFID Reader

    CN70 RFID, High Performance Imager, RFID Reader - Europe, QWERTY Keypad, Camera, Windows Embedded Handheld, WWE, SS/R
  8. CN70AQ3KC14W1R10 - Intermec CN70 RFID RFID Reader

    CN70 RFID, QWERTY Keypad, 2D Imager, RFID (FCC), US And CA, Windows Embedded Handheld, Bluetooth, Smart Systems, Camera
  9. CN70AN3KN14W1R00 - Intermec CN70 RFID RFID Reader

    CN70 RFID, Num, EA30, NoC, RFID-FCC, WEH-P,, WWE, SS/R
  10. CN70AQ3KC14W1R00 - Intermec CN70 RFID RFID Reader

    CN70 RFID, 2D Imager, QWERTY Keypad, RFID (FCC), US and CA, Windows Embedded Handheld, Smart Systems, Camera
