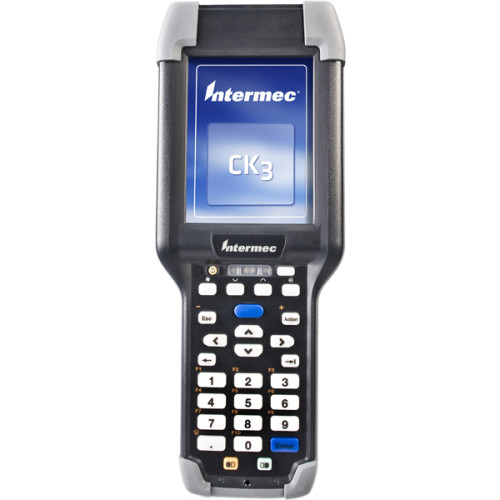

Intermec CK3XAB4M000W4400 Mobile Computer
Part #: CK3XAB4M000W4400 | SKU: INT196386

Featuring a highly adaptable design, the CK3X enables a variety of in-premise applications to reach their full workflow performance potential and improve their operational metrics, simplify IT support and control operating costs.

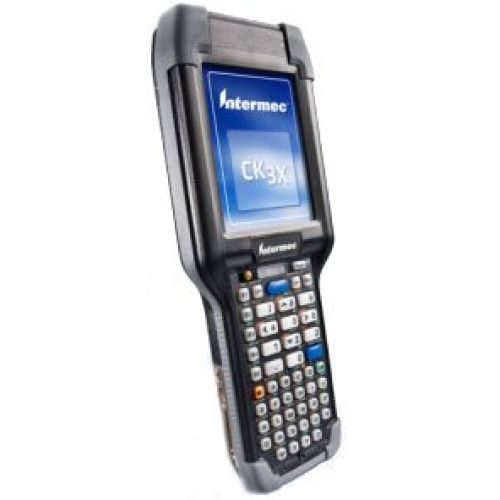

Intermec CK3XAB4M000W4400 Mobile Computer

Part Details: CK3X Handheld Computer - Wi-Fi (802.11a/b/g/n) - Near-Far 2D Imager - Windows Embedded 6.5 - 256MB RAM/1GB Flash - Numeric Keypad - Bluetooth - Includes battery and ICP application software - Interface cables and charging cradle sold separately - Spare Battery (Part# 318-033-021) - Quad charging dock (Part# 871-230-101) - Requires Power Supply (Part# 851-810-002) and AC power cord (Part# 1-974028-025)

Additional Information

Manufacturer Intermec
Model Name CK3X

Accessories

Supports most CK3 charging and docking accessories as well as FlexDock modular docking system, vehicle dock and holder, snap on adaptors and removable scan handle.

Display

• 8.9 cm (3.5 in) Transmissive QVGA
• 240 x 320 pixels
• 65,536 (16 bit RGB) Colors
• High-Durability Touch Screen
• LED Backlight

Environment

Drop Survival: 1.5 m (5 ft.) to concrete per MILSTD 810G across operating temperatures
Tumble Specification: 1,000 (1.0 m) tumbles per IEC 60068-2-32 specification
Electrostatic Discharge: +/- 15 kV air discharge, +/- 8 kV direct discharge
Humidity: Non-condensing, 95%
Operating Temperature: -10°C to +50°C (+14°F to +122°F)
Charging Temperature: +5°C to +35°C (+41°F to +95°F)
Storage Temperature: -20°C to +70°C (-4°F to +158°F)
Rain and Dust Resistance: IP54, category 1

Keypad

Both keypad options feature backlit hard keycaps with laser-etched legends

Memory and Storage

Flash ROM: 1GB Flash
Memory/Storage Extensions: Customer-accessible micro-SD slot for removable memory cards up to 32GB
RAM Memory: 256MB RAM

Microprocessor

Texas Instruments 1GHz multi-engine processor architecture

Operating System

Microsoft Windows Embedded Handheld built on Windows 6.5.3 technology with Intermec HTML5 Browser (available via download)

Physical Characteristics

Length: 21.6 cm (8.53 in)
Width:
8.3 cm (3.29 in)
6.1 cm (2.4 in) - grip area
Depth: 3.6 cm (1.42 in)
Weight: 499 g (17.6 oz) with 5.1Ah battery

Power

Battery Type/Supply:
Battery Pack: Removable, rechargeable
• Included - User removable, rechargeable Lithium-Ion; 3.7V, 5100 mAh (18.5 Watt-hours)
• Optional - Removable, rechargeable Lithium-Ion; 3.7V, 5200 mAh (18.5 Watt-hours) Smart Pack
• Optional - Removable, rechargeable Lithium-Ion; 3.7V, 2000 mAh (7.4 Watt-hours)

Scanning Performance

Scan Engine Options:
EA30 high performance motion-tolerant 2D Imager; (up to 500in/s) white LED illumination; red laser aimer and framer optimized for all lighting conditions. Capable of scanning all common 1D and 2D barcodes; 1D as small as 4 mil; 2D as small as 6.6 mils. Refer to User's Manual for depth of field performance.

EX25 near/far 2D Imager: Capable of scanning 1D and 2D barcodes from 15.2 cm to 15.2 m (6 in to 50 ft). Refer to User's Manual for depth of field performance.

Communications Interface

USB – Full Speed 2.0 OTG©, USB – Full Speed 2.0 Client©
Wireless:
Wireless LAN: IEEE®802.11 a/b/g/n Dual Band WLAN
Security: WiFi Certified for WPA and WPA2
Authentication: 802.1x
Cisco Compatibility: CCXv4
Encryption: WEP (64 or 128 bit), AES, TKIP

Wireless PAN: Integrated Bluetooth® Class II, Version 2.1+EDR
Operating Channels: 0 to 78 (2402-2480 MHz)
Data Rates: 1, 2, 3 Mbps
Antenna: Internal

Extended Details

Recommended Accessories for Model: Intermec CK3XAB4M000W4400 Mobile Computer

  • Honeywell 871-228-201 Accessory
    Part #: 871-228-201 | SKU: HON364540

    <span style="color: rgb(0, 0, 0); font-family: ProximaNovaRegular, Arial, Helvetica, sans-serif; font-size: 14px; letter-spacing: 0.14px;">Single Dock for CK65 and CK3X/R. Accommodates one device and one battery. Requires power supply 851-810-002 and country-specific AC power cord (US AC line cord is p/n 19-19726. (Also Supports Single Dock Ethernet Module, 871-238-012)</span>
    MSRP: $350.23 Price: $289.07
  • Honeywell 871-231-102 Accessory
    Part #: 871-231-102 | SKU: HON77563

    Vehicle Dock, CK3 (AV10)
    MSRP: $591.49 Price: $488.19
  • Honeywell 236-209-001 Accessory
    Part #: 236-209-001 | SKU: HON53881

    USB-A to USB-microB Cable - 1 meter
    MSRP: $69.92 Price: $57.37
  • Honeywell 871-236-001 Accessory
    Part #: 871-236-001 | SKU: HON53876

    Vehicle Holder - For use with CK3/CK65 - Non-Powered - Mounting Kit Required, Not Included (Part# 805-611-001)
    MSRP: $320.51 Price: $264.54
  • Honeywell 236-297-001 Accessory
    Part #: 236-297-001 | SKU: HON206435

    236-297-001, AC USB cable (same as in the the 203-990-001 kit)
    MSRP: $71.97 Price: $59.06

Recommended Warranties for Model: Intermec CK3XAB4M000W4400 Mobile Computer

  • Honeywell 1-974028-025 Power Device
    Part #: 1-974028-025 | SKU: HON20787

    AC line cord
    Price: $19.14
  • BCI TRUESUPPORT-STD-MOB-1YR Service Contract
    Part #: TRUESUPPORT-STD-MOB-1YR | SKU: BCI665138

    TrueSupport Standard Plan for Mobile Computers & Tablets - 1 Year – Includes: Plan Design & Deploy Project management, Device Staging Kitting & Provisioning, Hardware and Software Help Desk Support, RMA Triage, OEM Service Contract mgmt., MDM Administration Services.
    Price: $141.90
  • Honeywell SVCCK3-EXW2 Service Contract
    Part #: SVCCK3-EXW2 | SKU: HON595719

    CK3, Basic, 10-15 Day Turn, 2 Years(1 yr factory warranty plus 1 yr extended)
    $109.53
  • Honeywell SVCCK3-EXW3 Service Contract
    Part #: SVCCK3-EXW3 | SKU: HON595720

    Honeywell Basic Support - 3 Year Extended Warranty - Warranty - Maintenance - Labor - Electronic and Physical Service
    $198.68
  • Honeywell MOB3-REPAIR Service Contract
    Part #: MOB3-REPAIR | SKU: HON310072

    FLAT RATE REPAIR NOT COVERED UNDER WARRANTY OR SMS
    Price: $1,307.69
