Intermec PF8DA03000000 Barcode Label Printer Intermec PF8DA03000000 Barcode Label Printer

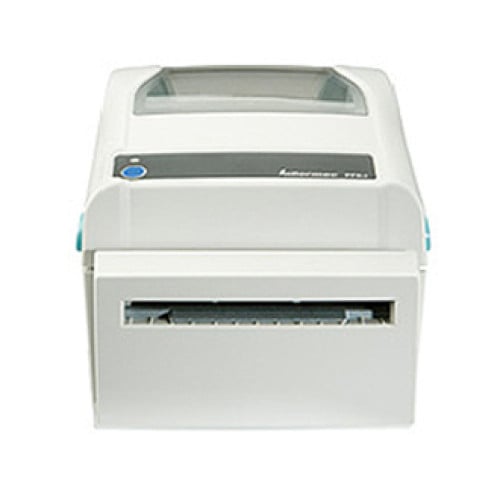

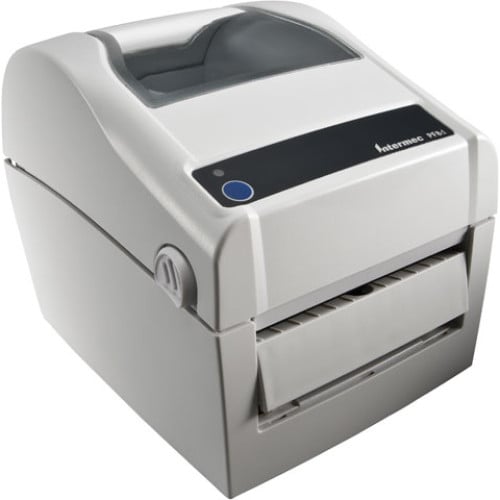

Intermec PF8DA03000000 Barcode Label Printer
Part #: PF8DA03000000 | SKU: INT47346

The unique double clam shell design of the Intermec EasyCoder PF8d direct thermal printer makes it extremely easy to load supplies with the simple drop-in method. Label and ribbon changes can be done in no time. With the smallest footprint of any Intermec fixed position printer, the EasyCoder PF8d is ideal for space restricted applications requiring less than 1000 labels per day. The direct thermal printer delivers clean, crisp barcodes on tags, tickets and labels. A real-time clock, a standard feature on this model, enables time stamping of the media as it prints.

Intermec PF8DA03000000 Barcode Label Printer

Part Details: EasyCoder PF8d, Direct thermal only, 203 dpi, RS-232 serial, Parallel and USB interfaces. Power cord (Part# 226-000001-200) not included. See accessories.
Need a different version of the Intermec EasyCoder PF8d Barcode Label Printer? View all 2 configurations

Additional Information

Interface Options Parallel, Serial (RS-232), USB
Manufacturer Intermec
Max Roll Outer Diameter 5
Model Name EasyCoder PF8d
Print Resolution 203 dpi
Print Speed 4 ips
Printer Type Desktop
Printing Technology Direct Thermal
Intermec EasyCoder PF8d Specs Intermec EasyCoder PF8d Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.10"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • EAN
    • QR Code
    • Data Matrix
    • PDF-417
    • Maxi Code
    • UCC 128

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: PF
  • Brand Name: Intermec
  • Manufacturer: Intermec Technologies Corporation
  • Product Model: PF8D
  • Product Name: EasyCoder PF8D Thermal Label Printer
  • Product Line: EasyCoder

Physical Characteristics

  • Height: 6.8"
  • Width: 8.9"
  • Depth: 11.2"
  • Form Factor: Desktop

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • EasyCoder PF8T Thermal Label Printer
    • Software Media (Includes: label Design Software, Windows Driver and Documentation)
    • Connector Cables
    • EasyCoder PF8T Thermal Label Printer
    • Software Media (Includes: label Design Software, Windows Driver and Documentation)
    • Connector Cables
  • Additional Information: Note: Power cord (Part# 226-000001-200) not included, must be purchased separately.

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Maximum Label Length: 68"
  • Media Sensor:
    • Reflective Media Sensor
    • Label Taken Sensor
  • Label Core Size: 1.50"
  • Ribbon Core Size: 0.50"
  • Maximum Roll Diameter: 5"

Fonts & Emulation

  • Language Emulation:
    • EPL
    • E-Sim

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 8 MB
  • Memory Technology: DRAM
  • Flash Memory: 4 MB

Warranty

  • Limited Warranty: 1 Year
Extended Details
