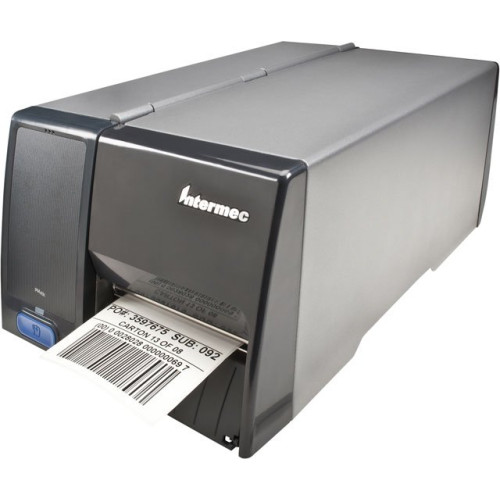

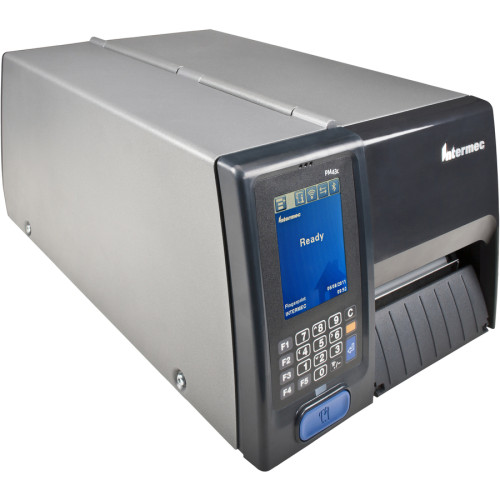

Intermec PM43CA0100000201 Barcode Label Printer
Part #: PM43CA0100000201 | SKU: INT185209

The Intermec PM43c compact industrial printers are ready to deliver maximum uptime. Both models are available with either a tamper-proof color touch-screen in 10 languages or a universal icon interface. Reduce your total workforce training and device support needs with immediate notifications via the printer and the elimination of reconfiguration due to UI tampering.

Intermec PM43CA0100000201 Barcode Label Printer

Part Details: Thermal transfer Industrial Printer - 4" Print width - Touchscreen - USB - Serial - Ethernet - LAN Interface - Long Door - Fixed Hanger - 200 dpi Print Resolution - Includes NA Power cord

Additional Information

Included Features Media Hanger
Interface Options Ethernet, Serial (RS-232), USB
Manufacturer Intermec
Max Print Width 4.5 inch
Max Roll Outer Diameter 6
Model Name PM43c
Print Resolution 203 dpi
Print Speed 12 ips
Printer Type Industrial
Printing Technology Thermal Transfer
Ribbon Core Size 1 inch

Technical Information

  • Maximum Mono Print Speed: 12 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.25"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • UPC/EAN Shipping Container
    • UCC/EAN 128 Serial Shipping Container
    • LOGMARS
    • POSTNET
    • HIBCC
    • ISBT-128
    • GM1724

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: PM
  • Brand Name: Intermec
  • Manufacturer: Intermec Technologies Corporation
  • Product Model: PM43c
  • Product Name: PM43c Label Printer

Physical Characteristics

  • Height: 7.1"
  • Width: 9.9"
  • Depth: 17"
  • Form Factor: Desktop
  • Weight (Approximate): 27.65 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • ENERGY STAR
    • RoHS
  • Platform Supported: PC
  • Package Contents:
    • PM43c Label Printer
    • US Power Cord
    • PM43c Label Printer
    • US Power Cord
  • Certifications & Standards:
    • PFC Regulation: IEC320/C14
    • CE (EN55022 Class A)
    • FCC Class A
    • UL/cUL
    • C-Tick
    • D Mark
    • CCC

Media Types & Handling

  • Maximum Label Width: 4.50"
  • Media Type:
    • Label
    • Tag
    • Linered Label
    • Linerless
    • Roll Fed
    • Fanfold
    • Gap
    • Notch
    • Black Mark
    • Continuous Label
  • Media Thickness: 10.40 mil
  • Media Sensor: Transmissive Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8.38"

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Standby Power Consumption: 9 W
  • Maximum Power Consumption: 300 W
  • Power Source: AC Supply

Fonts & Emulation

  • Language Emulation:
    • Fingerprint
    • IPL
    • ZSim
    • DSim
    • XML

Memory

  • Standard Memory: 128 MB
  • Memory Technology: SDRAM
  • Flash Memory: 128 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Display & Graphics

  • Touchscreen: Yes

Warranty

  • Limited Warranty: 1 Year
Extended Details

Recommended Accessories for Model: Intermec PM43CA0100000201 Barcode Label Printer

Recommended Labels for Model: Intermec PM43CA0100000201 Barcode Label Printer

  • Honeywell E25740 Barcode Label
    Part #: E25740 | SKU: HON248242

    Intermec Duratran II Labels - 4" Width x 6" Length - Permanent Adhesive - Rectangle - Thermal Transfer - White - Yellow - Green - Blue - Pink - Red - Paper - 979 / Roll - 4 / Case. Minimum Order Quantity: $350
  • Honeywell E07267-PMSWMRED Barcode Label
    Part #: E07267-PMSWMRED | SKU: HON55391

    Intermec Duratran II Thermal Label - 4" Width x 6" Length - Permanent Adhesive - Rectangle - Thermal Transfer - Red - Paper - 979 / Roll - 4 / Pack. Minimum Order Quantity: $350
  • Honeywell E04222 Barcode Label
    Part #: E04222 | SKU: HON20156

    Intermec DuraTRAN II Syntran Thermal Label - 4" Width x 6" Length - 855/Roll - Permanent - 3" Core - 4 / Carton - White. Minimum Order Quantity: $350
  • Honeywell E07267-PMS115 Barcode Label
    Part #: E07267-PMS115 | SKU: HON10202

    Thermal Transfer Labels (4.0 Inch x 6.0 Inch - 975 Labels/Roll, 4 Rolls/Case - Floodcoat PMS115 Yellow). Minimum Order Quantity: $350
  • Honeywell E22748 Barcode Label
    Part #: E22748 | SKU: HON17051

    Intermec Duratherm Lightning Thermal Label - 2" Width x 3" Length - 1920/Roll - Permanent - 3" Core - 8 / Carton. Minimum Order Quantity: $350

Recommended Printheads for Model: Intermec PM43CA0100000201 Barcode Label Printer

Recommended Ribbons for Model: Intermec PM43CA0100000201 Barcode Label Printer

  • BCI 12734109 Ribbon
    Part #: 12734109 | SKU: BCI191883

    4.17" x 750' Black Wax/Resin Ribbon. Compatible with Industrial Printers. 24 ribbon case. Used with polypropylene labels. Minimum Order Quantity: $350
    MSRP: $445.82 Price: $412.55
  • Intermec 12232311-R Ribbon
    Part #: 12232311-R | SKU: INT248362

    2.35" x 900' Black Wax/Resin Ribbon. Compatible with Desktop Printers. Single ribbon. Used with polypropylene labels.
  • Intermec 13064118 Ribbon
    Part #: 13064118 | SKU: INT191160

    4.1" x 1500' Black resin ribbon - 24 ribbon case - Used with Industrial Printers - Compatible with polyester labels

Recommended Warranties for Model: Intermec PM43CA0100000201 Barcode Label Printer
