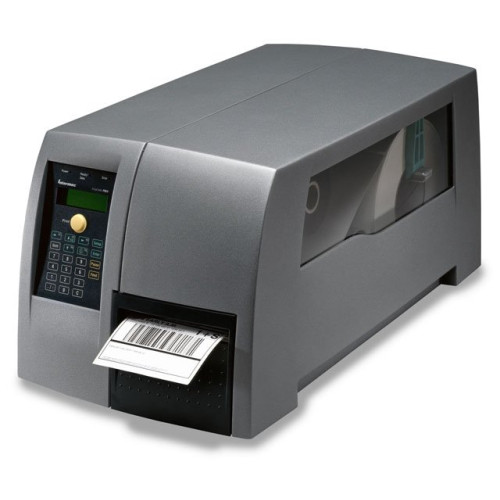

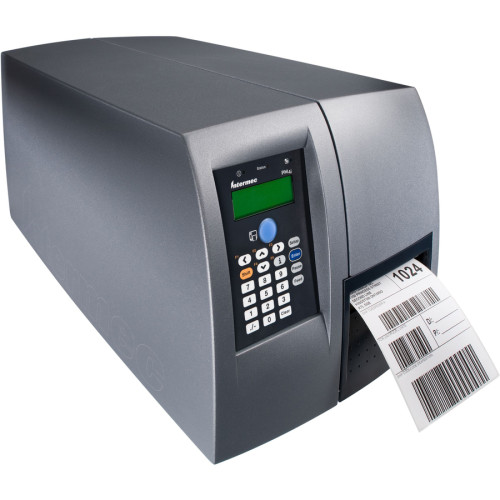

Intermec PM4D010000000020 Barcode Label Printer Intermec PM4D010000000020 Barcode Label Printer

Intermec PM4D010000000020 Barcode Label Printer
Part #: PM4D010000000020 | SKU: INT82479

The EasyCoder PM4i is an industrial printer designed to excel in demanding applications and environments. Utilizing the latest technology, the PM4i features a strong and proven mechanical platform, and powerful newly developed electronics.

Intermec PM4D010000000020 Barcode Label Printer

Part Details: Thermal transfer printing, 4" print width, Universal Firmware, 203 dpi, 16M/32M, Serial, USB, and EasyLAN Ethernet interfaces, and US Power cord. Cables sold separately. See accessories.
Need a different version of the Intermec EasyCoder PM4i Barcode Label Printer? View all 32 configurations

Additional Information

Interface Options Ethernet, Serial (RS-232), USB
Labels Per Day 5,001 - 10,000
Manufacturer Intermec
Max Roll Outer Diameter 8.38
Model Name EasyCoder PM4i
Print Resolution 203 dpi
Printer Type Industrial
Printing Technology Thermal Transfer
Ribbon Core Size 1 inch
Intermec EasyCoder PM4i Specs Intermec EasyCoder PM4i Specs (pdf)

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Intermec
  • Manufacturer: Intermec Technologies Corporation
  • Product Model: PM4i
  • Product Name: PM4i Thermal Label Printer

Technical Information

  • Maximum Mono Print Speed: 8 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print

Physical Characteristics

  • Height: 10.3"
  • Width: 11.7"
  • Depth: 21.4"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.50"
  • Media Type:
    • Label
    • Tag
    • Roll Fed
    • Fanfold
    • Ticket
  • Media Thickness: 8.70 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
  • Label Core Size: 3"
  • Ribbon Core Size: 1"
  • Maximum Roll Diameter: 8.38"

Fonts & Emulation

  • Language Emulation:
    • IPL
    • Fingerprint
    • ZPL
    • DPL
    • XML

Memory

  • Standard Memory: 32 MB
  • Memory Technology: SDRAM
  • Flash Memory: 16 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Other

  • Platform Supported: PC
Extended Details

Recommended Accessories for Model: Intermec PM4D010000000020 Barcode Label Printer

  • Honeywell 203-886-001 Accessory
    Part #: 203-886-001 | SKU: HON66462

    Self-Strip Field Upgrade (for the PM4i)
    MSRP: $131.24 Price: $86.95

  • Honeywell 1-207201-800 Accessory
    Part #: 1-207201-800 | SKU: HON44440

    RFID Field Option Kit (915 MHz) for the PM4i
    MSRP: $1,995.00 Price: $1,321.75

  • Honeywell 1-971141-800 Accessory
    Part #: 1-971141-800 | SKU: HON44472

    Parallel Interface Card (IEEE 1284 Interface, Kit/ASX)
    MSRP: $441.84 Price: $292.74

  • Honeywell 1-010045-900 Accessory
    Part #: 1-010045-900 | SKU: HON42374

    Printhead Assembly (200 dpi, THP, Centered) for the EasyCoder PM4i
    MSRP: $785.91 Price: $558.26

  • Intermec 1-206012-900 Accessory
    Part #: 1-206012-900 | SKU: INT44439

    Cutter (Upgrade) for the EasyCoder PM4i
View All Options

Recommended Labels for Model: Intermec PM4D010000000020 Barcode Label Printer

  • Honeywell E06175 Barcode Label
    Part #: E06175 | SKU: HON10199

    Thermal Transfer Labels - 4.0 in. x 6.0 in. - Perforated - 979 Labels/Roll - 4 Rolls/Case
    Price: $53.20

  • Honeywell E25879 Barcode Label
    Part #: E25879 | SKU: HON128923

    Intermec DuraTRAN II E25879 Thermal Label - 2" Width x 4" Length - Permanent Adhesive - Rectangle - Thermal Transfer - Paper - 1454 / Roll - 8 / Box. Minimum Order Quantity: $350

  • Honeywell E06724 Barcode Label
    Part #: E06724 | SKU: HON55392

    Intermec DuraTRAN II E06724 Thermal Label - 4" Width x 1" Length - Permanent Adhesive - Rectangle - Thermal Transfer - White - Paper - 5333 / Roll - 8 / Carton. Minimum Order Quantity: $350

  • Honeywell E25878 Barcode Label
    Part #: E25878 | SKU: HON128922

    Intermec DuraTRAN II Label - 2" Width x 3" Length - Permanent Adhesive - Rectangle - Thermal Transfer - Paper - 1920 / Roll - 8 / Carton. Minimum Order Quantity: $350

  • Honeywell E09603 Barcode Label
    Part #: E09603 | SKU: HON20159

    Label (4 Inch x 3 Inch, 1920 Labels/Roll and 4 Rolls/Carton). Minimum Order Quantity: $350
View All Options

Recommended Printheads for Model: Intermec PM4D010000000020 Barcode Label Printer

  • Intermec 710-047-900 Printhead
    Part #: 710-047-900 | SKU: INT86538

    Printhead Kit For Printer Model PM4I, Print Resolution 406 dpi

  • Honeywell 1-010044-900 Printhead
    Part #: 1-010044-900 | SKU: HON31148

    Printhead Kit For Printer Model EasyCoder PM4i, Print Resolution 300 dpi

  • Honeywell 1-010043-900 Printhead
    Part #: 1-010043-900 | SKU: HON25200

    Printhead Kit - For Printer Model EasyCoder PM4i - Print Resolution 203 dpi

  • Honeywell 1-010043-910 Printhead
    Part #: 1-010043-910 | SKU: HON37131

    Printhead Kit For Printer Model EasyCoder PM4i, Print Resolution 203 dpi

  • Intermec 1-010043-90 Printhead
    Part #: 1-010043-90 | SKU: INT15939

    EasyCoder PM4i, Replacement printhead, 203 dpi.
View All Options

Recommended Ribbons for Model: Intermec PM4D010000000020 Barcode Label Printer

  • Honeywell 12234118 Ribbon
    Part #: 12234118 | SKU: HON191880

    4.09" x 1502 Black Wax-Resin Ribbon - 12 ribbon case - Used with Industrial Printers - Compatible with polypropylene labels

  • Honeywell 13023006 Ribbon
    Part #: 13023006 | SKU: HON8466

    Resin Ribbon, Black, 3" x 500', rolls/case: 36, Core Size: 1", For Use With (Labels): Polyester Labels, For Use With (Printer): Industrial

  • Honeywell 12084106 Ribbon
    Part #: 12084106 | SKU: HON8457

    Ribbon - Wax-resin - Black - 4.1" x 500' - rolls/case: 12 - Core Size: 1" - For Use with Polypropylene Labels and Industrial Printers

  • Honeywell 11072006 Ribbon
    Part #: 11072006 | SKU: HON8428

    ThermaMax 1407 Wax, 2" x 500' Black Wax Ribbon. Compatible with Industrial Printers. 36 ribbon case. Used with paper labels.

  • Honeywell 12072218 Ribbon
    Part #: 12072218 | SKU: HON8455

    ThermaMax 2202 Mid-Range, 2.2" x 1500' Black Wax-Resin Ribbon. Compatible with Industrial Printers. 12 ribbon case. Used with polypropylene labels.
View All Options

Recommended Warranties for Model: Intermec PM4D010000000020 Barcode Label Printer

  • Honeywell SVCPM4-OS2WT1R Service Contract
    Part #: SVCPM4-OS2WT1R | SKU: HON363914

    Honeywell Wear and Tear - 1 Year Extended Service (Renewal) - Service - On-site - Maintenance - Parts & Labor - Electronic, Physical Service
    MSRP: $333.15 Price: $240.59
    In Stock

  • Honeywell SVCPM4-OS1WT1R Service Contract
    Part #: SVCPM4-OS1WT1R | SKU: HON363911

    Honeywell Wear and Tear - 1 Year Extended Service (Renewal) - Service - On-site - Maintenance - Parts & Labor - Physical Service
    MSRP: $354.60 Price: $256.07
    In Stock

  • Honeywell SVCPM4-OS2WT3 Service Contract
    Part #: SVCPM4-OS2WT3 | SKU: HON363915

    Honeywell Wear and Tear - 3 Year Extended Service - Service - On-site - Maintenance - Parts & Labor - Physical Service
    MSRP: $645.75 Price: $466.32
    In Stock

  • Honeywell SVCPM4-OS1WT3 Service Contract
    Part #: SVCPM4-OS1WT3 | SKU: HON363912

    Honeywell Wear and Tear - 3 Year Extended Service - Service - On-site - Maintenance - Parts & Labor - Electronic, Physical Service
    MSRP: $752.85 Price: $543.66
    In Stock

  • Honeywell SVCPM4-OS1WT5 Service Contract
    Part #: SVCPM4-OS1WT5 | SKU: HON363913

    Honeywell Wear and Tear - 5 Year Extended Service - Service - On-site - Maintenance - Parts & Labor - Electronic, Physical Service
    MSRP: $1,128.75 Price: $815.12
    In Stock
View All Options
