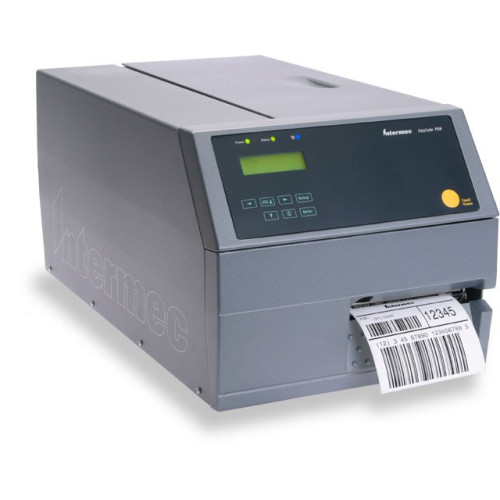

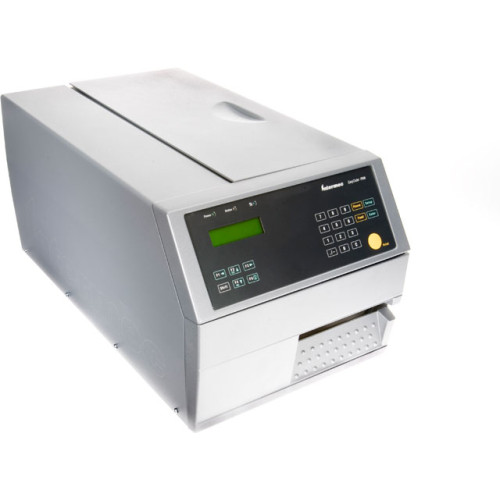

Intermec PX4C011000005020 Barcode Label Printer
Part #: PX4C011000005020 | SKU: INT82508

The EasyCoder PX Series printers are rugged, metal, high-performance printers designed to excel in demanding 24/7-duty applications. The PX4i features a maximum print width of 4 inches and is available with 203 or 300-dpi resolution printheads. The open, modular design ensures the printers are easy to adapt, maintain and service.

Intermec PX4C011000005020 Barcode Label Printer

Part Details: DT/TTR, Universal Firmware, 16M/32M, Parallel Port, Self Strip, LTS, 203 dpi

Additional Information

Interface Options Ethernet, Parallel, Serial (RS-232)
Manufacturer Intermec
Max Print Width 4.75 inch
Max Roll Outer Diameter 8.38
Model Name EasyCoder PX4i
Print Resolution 203 dpi
Print Speed 12 ips
Printer Options Peeler
Printer Type Industrial
Printing Technology Thermal Transfer
Ribbon Core Size 1 inch
Application
Direct Thermal (DT) and Thermal Transfer (TT) printing of adhesive labels, tickets and tags.

Models
EasyCoder PX4i
EasyCoder PX6i

Physical Characteristics
LxHxW: 482 x 238 x 275 mm (19.0 x 9.4 x 10.8 in)
Weight: 12.85 kg (28.4 lbs)

Print Specifications
Max. Print Width: 112 (DT)/110 (TT) mm (4.4/4.3 in)
Max. Length with extended memory:
4095 mm (161 in) at 203 dpi
2775 mm (109 in) at 300 dpi

Print Speed
100 - 300 mm/s (4 - 12 ips) variable

Print Direction
Prints smooth text, any size bar codes and graphics in all four orthogonal directions.

Print Resolution
8 dots/mm (203 dpi), 11.8 dots/mm* (300 dpi)

Label/Ticket/Tag
Max. Width: 120 mm (4.72 in)
Min. Width: 50.8 mm (2.0 in)
Thickness: 60 to 250µm (2.4 to 10 mil)
Style: Roll-fed, die-cut, continuous or fanfold labels, tags or tickets
Label Roll max diameter: 213 mm (8.38 in)
Label Roll Core: 38-76 mm (1.5-3.0 in)
Media Type: Thermally sensitive media

Ribbon Roll
Ribbon roll max diameter: 80 mm (3.15 in) corresponding up to 600 m (23 600 in) in length
Ribbon Roll Core: 25 mm (1.0 in)
Ribbon Type: Wax, wax/resin, resin

Interfaces
Standard:

  • EasyLAN 10/100BaseT internal Ethernet
  • RS-232, up to 115.2 kB/s
  • USB 2.0
  • Wand interface for EasySet System

Optional:

  • EasyLAN Wireless internal Ethernet

Optional interface card adapters:

  • Parallel IEEE 1284
  • Industrial Interface* (8 digital in/out, 4 analog relays, 1 RS232/422/485 port)
  • Dual Serial ports RS-232, RS-422, RS-485 and 20mA Current Loop*

Network Interface Options:
EasyLAN integrated Ethernet: RJ-45 connector for 10BaseT or 100baseTX
EasyLAN Wireless:

  • Fully integrated IEEE 802.11b/g
  • WEP 128 bit, 802.1x/WPA/LEAP/PEAP
  • Multiple industrial antenna options for maximized coverage

Supported Protocols: TCP/IP-suite (TCP, UDP, ICMP, IGMP, etc.), LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMP, SMTP.
SNMP-MIB II supported (over UDP/IP), private enterprise MIB included

Software
Available printer command languages:

  • IPL
  • Fingerprint/Direct Protocol

Applications/Drivers (comes on Printer Companion CD) including:

  • InterDriver™ Windows printer driver
  • Intermec LabelShop® START label design and print package
  • Intermec Printer Network Manager for administration of networked printers
  • PrintSet for printer setup/configuration

Optional software for application development:

  • Fingerprint ApplicationBuilder™ (IFAB)
  • Intermec Printer Application Server™
  • ERPLabel™ for SAP™ R/3®.

Bar code Symbologies
DP 1-dimensional Codes: Codabar, Code 11, Code 39, Code 93, MSI(modified Plessey), Code 128, Code 128 Subset A-C, DUN-14/16, UPC/EAN Codes (EAN 8, EAN 13, UPC Version A, UPC Version E), EAN-128, EAN-128 Subset A-C*, Industrial 2 of 5, Interleaved 2 of 5, Interleaved 2 of 5 A, Matrix 2 of 5*, Planet, Postnet, Straight 2 of 5*, UCC-128 Serial Shipping Container Code, RSS, HIBC Code 39 (IPL only), HIBC Code 128 (IPL only), JIS-ITF (IPL only)
2-dimensional Codes: Code 16K, Code 49, Data Matrix, MaxiCode, PDF417, QR Code, MicroPDF417, EAN.UCC Composite

Standards Supported
UPC/EAN Shipping Container; UCC/EAN 128 Serial Shipping Container; MH10.8 Shipping Label; AIAG (shipping parts label); LOGMARS; POSTNET; HIBCC; ISBT 128; GM1724; UPS shipping label; Global Transport label

Characters Sets
Fingerprint/DP Firmware: 15 scalable fonts including 12 UNICODE (1 WGL4), 1 symbol, 1 OCR-A, 1 OCR-B. Font cache for maximum performance. Non-Latin fonts are available as options.
IPL Firmware: 13 scalable fonts + 20 bitmap fonts.

Graphics
Supports PCX file format

Memory
Standard:
4MB Flash memory
8MB SDRAM
1 Compact Flash slot
Maximum:
Flash memory: Up to 16 MB (optional) 1GB CompactFlash memory
SDRAM:
Up to 16MB

Protocol
Fingerprint/Direct Protocol: XON/XOFF, ENQ/ACK, DTR, RTS/CTS
IPL: XON/XOFF, Intermec Standard Protocol

Display
Back-lit LCD for 2x16 characters and 3 LED indicator lamps

Keypad Control Panel

  • Advanced keypad (Fingerprint/DP)
  • Alpha-numeric keypad (FP/DP option)
  • Simplified keypad (IPL)

Power Supply
115/230VAC auto-switch w/PFC
Voltage Range: 90-265 VAC
Frequency Range: 45-65 Hz

Operating Environment
Temperature: +5° to +40°C (+40° to +104°F)
Humidity: 10-90% RH non-condensing

Regulatory Approvals
CE (EN55022 Class A), FCC Class A, UL, CSA, C-Tick

Extended Details
