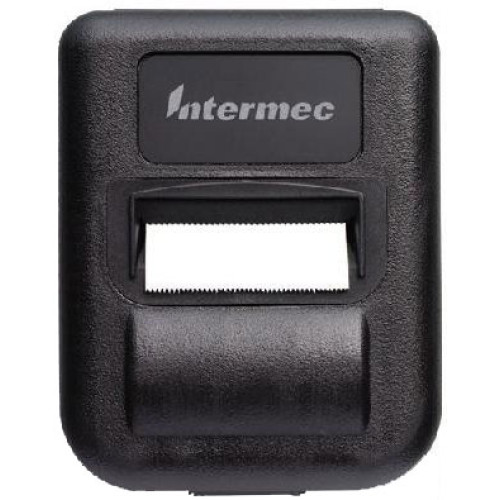

Intermec PB20 Portable Barcode Printer

When paired with a 700 Series Mobile Computer the new Intermec PB20 Direct thermal Portable Printer with Bluetooth offers the convenience of a personal area network (PAN) to the frontline worker for printing receipts and barcode labels. The combination of the PB20 portable printer and companion 700 Series Mobile Computer is a no hassle solution to improve wireless printing operations for various route accounting field service logistics home delivery and pre-sales systems.Faster firmware enables the PB20 to print graphics and in particular offer signature capture capability not previously available in other Intermec portable printers. This makes the PB20 ideal for producing accurate receipts proofs of delivery and invoices.

See all options

Specs & Info
All Options

Intermec PB20 Specs (pdf)

Physical Characteristics
Length: 14.35cm (5.65”)
Height: 6.1cm (2.4”)
Width: 11cm (4.4”)
Weight: 393g (13.85 oz) without paper;
418g (14.72 oz) with paper

Standard Features
Bluetooth and printing of signature capture capability

Power
Battery Type: 7.2V Lithium-Ion 1800mAh (2) 3.8V cells in series
Battery Life: Dependent on usage. An 8-hour shift is easily accomplished.
Power Management: AC wall charger and 12V vehicle charger
AC Adapter/Recharging: Three hours to 8 hour shift capacity. Nine hours to full charge using a vehicle charger power adapter or standard AC power adapter.

Print Specifications
Print Resolution: 203 dpi (dots per inch)
Print Speed: 4.65cm (1.83”) per second

Characters/Fonts
Characters, graphics and bar codes.
Hundreds of fonts available. Comes with seven standard load fonts.Integrated RF Module Bluetooth

Wireless LAN Characteristics
Range: 10m (30’)

Environment
Operating Temperature: 0 to 40 C (32 to 104 F)

Regulatory Approvals
FCC Title 47, Part 15, Subpart B, Class B
EN55022 Class B EN50082-1
IEC1000-3-2
IEC1000-3-3

Extended Details

Refine Your Options

Shop By

Printing Technology

Direct Thermal (2)

Print Resolution

203 dpi (2)

Interface Options

Bluetooth (2)

Printer Type

Mobile (2)

Intermec PB20A0B140 Portable Barcode Printer
Part #: PB20A0B140 | SKU: INT20054

Direct thermal Portable Printer (203 dpi, 1.83 ips Print speed, Bluetooth and 7.2V Lithium-Ion 900 mAh Battery)
Intermec PB20B0B140 Portable Barcode Printer
Part #: PB20B0B140 | SKU: INT36350

Intermec PB20 Portable Receipt Printer - 1.83 in/s Mono

Recommended Accessories for Model: Intermec PB20 Portable Barcode Printer

Intermec 318-030-003 Battery
Part #: 318-030-003 | SKU: INT222863

PB2X/3X BATTERY PACK, 7.2V, 2.25AH, LI-ION
Intermec 851-060-002 Spare Parts
Part #: 851-060-002 | SKU: INT20066

Universal power adapter (12 Volt DC, 102-240 VAC)
