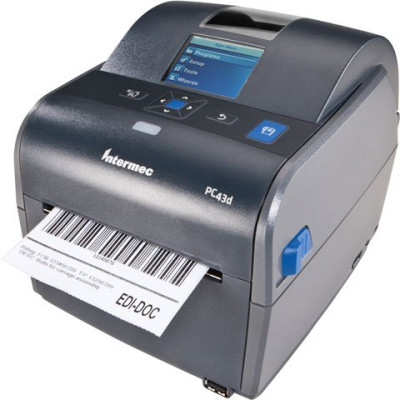

Intermec PC43d Barcode Label Printer

Super easy to install and use, the compact PC43d is a purpose-built platform with an innovative design guided from customer input. This 4" wide desktop printer is perfect for space-constrained settings, and offers tailored solutions for transportation / courier, healthcare, and retail and hospitality markets, as well as small and medium business manufacturing, and warehouse and office environments.

Call For Price

See all options

Specs & Info
All Options

Intermec PC43d Specs (pdf)

Intermec PC43d Driver (download)

Interfaces

Standard: USB Device Type-B connector v.2.0 high speed, USB Host Type-A connector v.2.0 high speed
Field Installable: Ethernet 10/100 Mbps module, Dual-radio module (802.11 b/g/n and Bluetooth® V2.1), USB-to-Serial adapter (RS-232), USB-to-Parallel adapter
User Interfaces:
Choice of:
• 2.36" VGA LCD 480 x 234 resolution in 10 languages, 8 buttons and ready-to-work LED
• Graphical back-lit Icons: cover open, paper out, ribbon out (PC43t), general error, maintenance, pause, thermal printhead too hot, data status, wireless status (if installed), Bluetooth® status (if installed), ready-to-work LED, and one Print/Feed button
• User-configurable audio sounds with volume levels.
Supported Protocols:
Serial Flow Control: XON/XOFF, RTS/CTS
Wireless Protocol: WEP static (64/128bits), WPA, WPA2, WEP dynamic, EAP-PEAP, EAP-TTLS, LEAP, EAP-FAST, EAP-TLS, CCX compliant level 3.
Graphics: Supports user-defined fonts and graphic formats including BMP, GIF, PCX, and PNG.

Memory

Standard: 128 MB Flash, 128 MB RAM (DDR2)
Optional: Up to 32 GB via user USB thumbdrive

Physical Characteristics

Height:
PC43d 4" DT: 167 mm (6.6 in)
PC43t 4" TTR Icon: 182 mm (7.2 in)
PC43t 4" TTR LCD: 227 mm (8.9 in)
Width:
PC43d 4" DT: 180 mm (7.1 in)
PC43t 4" TTR: 210 mm (8.3 in)
Depth:
PC43d 4" DT: 215 mm (8.4 in)
PC43t 4" TTR: 281 mm (11.1 in)
Weight:
PC43d 4" DT: 1.72 kg (3.80 lbs)
PC43t 4" TTR: 2.70 kg (5.95 lbs)

Power

Separate power supply
Input: 100–240 V AC/50–60 Hz, 1.5 A
Output: 24 V DC, 2.5 A Energy-Star Compliant

Print Specifications

Label Roll Core:
Min. 25.4 mm (1 in)
Max. 38.1 mm (1.5 in)
Label Roll Max Diameter: 127 mm (5 in)
Max Label Width:
PC23d: 60 mm (2.36 in)
PC43: 118 mm (4.7 in)
Max Length:
203 dpi – 1727 mm (68 in)
300 dpi – 900 mm (35 in)
Print Direction: Prints text, bar codes and graphics in all four directions
Print Speed: Selectable up to 8 ips (203.2 mm/sec) for 203 dpi; 6 ips (152.4 mm/sec) for 300dpi
Print Width:
PC43:
203 dpi – max. 104 mm (4.1 in)
300 dpi – max. 106 mm (4.2 in)
PC23d:
203 dpi – max. 56 mm (2.2 in)
300 dpi – max. 54 mm (2.1 in)
Resolution: 8 dots/mm (203 dpi) or 12 dots/mm (300 dpi)

Supported Bar Code Symbologies

1-Dimensional: All major 1-dimensional bar code symbologies are available
2-Dimensional: Aztec, Code 16K, Code 49, Data Matrix, Dot Code, EAN-8, EAN-13, EAN.UCC 128, Grid Matrix, HIBC 39, HIBC 128, MaxiCode, MSI (modified Plessey), PDF417, Micro PDF417, Planet, Plessey, Postnet, QR-Code, RSS-14 (variations)

Accessories

User Accessories: Dispenser with LTS, Cutter Unit with LTS (PC43d & PC43t) user settable partial or full cut, Front Label Tray (PC43d & PC43t), 300 dpi, Battery Unit (PC43d), Linerless (PC43d & PC43t), Power Adapter Tray (PC43d), Printer Case Lock

Software

Printer Command Languages:
• C# for Printers
• IPL
• Direct Protocol
• ZSim (ZPL)
• DSim (DPL)
• XML enabled for SAP® AII and Oracle® WMS

Applications / Drivers:
• InterDriver™ Windows printer driver
• Intermec Certified Device Types for SAP®
• Intermec label design and print package

Smart Printing Languages:
C# for Printers
• Smart Printing Developer Resource Kit
• Write apps with .NET-compatible development environments
Intermec Fingerprint
• Use Intermec Fingerprint ApplicationBuilder (IFAB)

Configuration & Device Management Support:
• PrintSet for printer configuration
• SmartSystems™
• Sophisticated web interface for configuration, upgrade and 1:1 management
• Wavelink Avalanche™

Extended Details

Refine Your Options

Intermec PC43DA00000201 Barcode Label Printer
Part #: PC43DA00000201 | SKU: INT163753

Desktop Printer - Intermec PC43d - Direct Thermal - 203 dpi - 8ips - LCD - USB - Icon Display - US Power Cord
Intermec PC43DA00100201 Barcode Label Printer
Part #: PC43DA00100201 | SKU: INT163755

Desktop Printer - Intermec PC43d - Direct Thermal - 203 dpi - 8ips - LCD/Real-time Clock - USB - LCD Display - US Power Cord
Intermec PC43DA01000201 Barcode Label Printer
Part #: PC43DA01000201 | SKU: INT337891

Desktop Printer - Intermec PC43d - Direct Thermal - 203 dpi - 8 ips - LCD - Ethernet/USB Host/USB - Icon Display - US Power Cord
Intermec PC43DA01100201 Barcode Label Printer
Part #: PC43DA01100201 | SKU: INT337906

Desktop Printer - Intermec PC43d - Direct Thermal - 203 dpi - 8 ips - LCD/Real-Time Clock - Ethernet/USB Host/USB - US Power Cord
Intermec PC43DA00000301 Barcode Label Printer
Part #: PC43DA00000301 | SKU: INT163754

PC43d, Direct thermal printing, 4" print width, 300 dpi, USB interface, Icon Display, US power cord.
Intermec PC43DA10100201 Barcode Label Printer
Part #: PC43DA10100201 | SKU: INT195884

Desktop Printer - Intermec PC43d - Direct Thermal - 203 dpi - 8ips - LCD - USB - Asian and Latin American Display - US Power Cord
Intermec PC43DA00100301 Barcode Label Printer
Part #: PC43DA00100301 | SKU: INT163756

Desktop Printer - Intermec PC43d - Direct Thermal - 300 dpi - 6ips - LCD/Real-time Clock - USB - LCD Display - US Power Cord
Intermec PC43TA01000201 Barcode Label Printer
Part #: PC43TA01000201 | SKU: INT337907

PC43d, 4" THERMAL TRANSFER DESKTOP PRINTER WITH ICON DISPLAY, USB HOST PORT, Ethernet, 203 dpi, INCLUDES AMERICAS POWER CORD
Intermec PC43DA00100202 Products
Part #: PC43DA00100202 | SKU: INT405184

PC43D PRINTER, 4" DIRECT THERMAL DESKTOP WITH LCD DISPLAY AND Real-time clock, USB HOST PORT, 203 dpi, EURO POWER CORD
Intermec PC43DA131UP201 RFID Printer
Part #: PC43DA131UP201 | SKU: INT616481

Desktop RFID Printer - Intermec PC43d Direct Thermal Printer - 203 dpi - 8 ips - Real-time clock - Ethernet/Parallel/RS-232 Serial/USB
