Intermec EasyCoder PD42 Barcode Label Printer Intermec EasyCoder PD42 Barcode Label Printer Intermec EasyCoder PD42 Barcode Label Printer

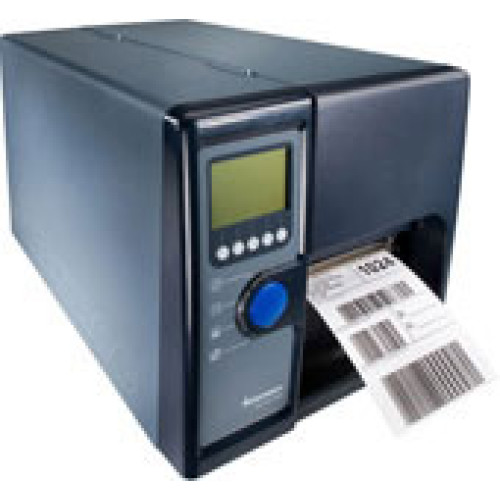

Intermec EasyCoder PD42 Barcode Label Printer

Intermec EasyCoder PD42 Barcode Label Printer

The Intermec EasyCoder PD42 can print demanding crisp variable-data labels continuously at 150 mm/s (6 ips). It takes industry standard 200-mm (8-in) rolls of labels and 450 m (18 000 in) of ribbon, reducing downtime for loading media to a minimum. The printer accepts a wide range of paper types in different thicknesses, as well as both ink-in and ink-out ribbon. In addition the EasyCoder PD42 offers many Smart Printing features normally found only in high-performance printers. By adding Intermec's LabelShop Pro and XMLLabel, the EasyCoder PD42 will be fully provisioned for XML printing environments. Support for Unicode fonts and Intermec Ready-to-Work indicator are standard - all at an affordable and competitive price. Networking is an increasingly important user requirement but still a rare feature in this printer class. The EasyCoder PD42 offers high-speed, multi-channel Ethernet as a standard choice.
Discontinued - Need Assistance
See all options
Intermec EasyCoder PD42 Specs Intermec EasyCoder PD42 Specs (pdf) Intermec EasyCoder PD42 Driver Intermec EasyCoder PD42 Driver (download)

Interfaces

Standard:
• Ethernet 10/100 Mbps
• RS-232, up to 115.2 kB/s
• Fingerprint/Direct Protocol: XON/XOFF, ENQ/ACK, DTR, RTS/CTS
• IPL: XON/XOFF, Intermec Std. Protocol
• USB 2.0

Optional:
• Parallel IEEE 1284

Wireless:
• IEEE 802.11 b/g
• Wi-Fi Certified, CCX (Cisco®) version 3 Certified
• WEP, WPA, WPA2, 802.11x (EAP-TTLS, LEAP, PEAP, FAST), 802.11i

Supported Protocols:
TCP/IP-suite (TCP, UDP, ICMP, IGMP, etc.), LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP. SNMP-MIB II supported (over UDP/IP), private enterprise MIB included. Supports IPv4 and IPv6.

Memory

Standard:
8MB Flash memory 16MB SDRAM (1 Compact Flash slot and 1 USB Boot / Hub Slot)
Options:
Up to 1GB CompactFlash (type 1) memory, Multi GB USB Thumb Drive Memory

Physical Characteristics

Length:
453 mm (17.8 in)
Height:
273 mm (10.8 in)
Width:
270 mm (10.6 in)
Weight:
13 kg (28.7 lbs)

Power

Voltage Range:
100-240 VAC ±10% auto switch
Frequency Range:
45-65 Hz

Print Specifications

Max Width:
104 mm (4.09 in) at 203 dpi
105.7 mm (4.16 in) at 300 dpi
Max Length:
1520 mm (59.8 in) at 203 dpi
1028 mm (40.5 in) at 300 dpi
Max Label Width:
118.1 mm (4.65 in)
With cutter: 114m (4.49 in)
Thickness:
2.3 to 9.8 mil
Style:
Roll-fed, die-cut, continuous or fanfold
Label Roll Max Diameter:
213 mm (8.38 in)
Label Roll Core:
38-76mm (1.5-3 in)
Print Speed:
50-150 mm/s (2-6 ips) at 203 dpi
50-100 mm/s (2-4 ips) at 300 dpi
Resolution:
8 dots/mm (203 dpi)
11.8 dots/mm (300 dpi, option)
Media Type:
Direct thermal and thermal transfer label, ticket and tag printers.

Supported Bar Code Symbologies

1-Dimensional:
All major 1D symbologies are supported.
2-Dimensional:
All major 2D symbologies are supported.

Extended Details
Refine Your Options
Shop By
Shopping Options
Printing Technology
  1. Thermal Transfer (13)
  2. Direct Thermal (2)
Print Resolution
  1. 203 dpi (13)
  2. 305 dpi (3)
  3. 300 dpi (1)
Print Speed
  1. 6 ips (13)
  2. 4 ips (3)
Interface Options
  1. Ethernet (12)
  2. Serial (RS-232) (8)
  3. Parallel (5)
  4. USB (1)
  5. Wi-Fi (1)
Included Features
  1. Chinese Power Cord (1)
Printer Type
  1. Industrial (16)
  1. Intermec PD42BJ1100002020 Barcode Label Printer

    Intermec PD42BJ1100002020 Barcode Label Printer
    Part #: PD42BJ1100002020 | SKU: INT82571

    EasyCoder PD42, Thermal transfer, US/EU Cord, Universal FW, Ethernet, Parallel, LTS, 203 dpi
  2. Intermec PD42BJ2000002020 Barcode Label Printer

    Intermec PD42BJ2000002020 Barcode Label Printer
    Part #: PD42BJ2000002020 | SKU: INT82579

    Industrial Printer - EasyCoder PD42 - 203 dpi - Thermal transfer - 6-ips Print speed - 4.09" Print width - Wirless LAN/USB/Serial/Ethernet Interfaces - US/EU Cord - Label Taken Sensor
  3. Intermec PD42BJ1000002020 Barcode Label Printer

    Intermec PD42BJ1000002020 Barcode Label Printer
    Part #: PD42BJ1000002020 | SKU: INT82572

    EasyCoder PD42, Thermal transfer, US/EU Cord, Universal FW, Ethernet, LTS, 203 dpi
  4. Intermec PD42BJ1000002021 Barcode Label Printer

    Intermec PD42BJ1000002021 Barcode Label Printer
    Part #: PD42BJ1000002021 | SKU: INT82575

    EasyCoder PD42, Direct thermal, US/EU Cord, Universal FW, Ethernet, LTS, 203 dpi
  5. Intermec PD42BJ1100002030 Barcode Label Printer

    Intermec PD42BJ1100002030 Barcode Label Printer
    Part #: PD42BJ1100002030 | SKU: INT82578

    EasyCoder PD42, Thermal transfer (300 dpi, US/EU Cord, Universal FW, Parallel and Ethernet Interfaces and LTS)
  6. Intermec PD42BJ1000002030 Barcode Label Printer

    Intermec PD42BJ1000002030 Barcode Label Printer
    Part #: PD42BJ1000002030 | SKU: INT195890

    EasyCoder PD42, PD42B, US/EU, LAN, 1284, LTS, DT/ TT300 DPI
  7. Intermec PD42A40100012020 Barcode Label Printer

    Intermec PD42A40100012020 Barcode Label Printer
    Part #: PD42A40100012020 | SKU: INT78740

    EasyCoder PD42, PD42A, US, FP, 1284, LTS, 203 dpi
  8. Intermec PD42BJ1100002021 Barcode Label Printer

    Intermec PD42BJ1100002021 Barcode Label Printer
    Part #: PD42BJ1100002021 | SKU: INT82576

    EasyCoder PD42, Direct thermal only, US/EU Cord, Universal FW, Ethernet, Parallel, LTS, 203 dpi

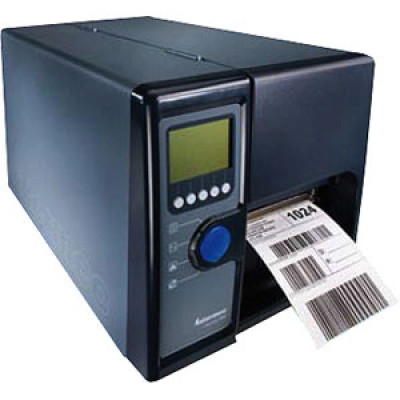

  9. Intermec PD42BK1000002020 Barcode Label Printer

    Intermec PD42BK1000002020 Barcode Label Printer
    Part #: PD42BK1000002020 | SKU: INT90061

    PD42, B, CHINA, LAN, LTS, Thermal transfer203 dpi
  10. Intermec PD42A00100012020 Barcode Label Printer

    Intermec PD42A00100012020 Barcode Label Printer
    Part #: PD42A00100012020 | SKU: INT47304

    EasyCoder PD42, PD42 Thermal transfer (203 dpi, US/IPL, LTS and Parallel Interface)
