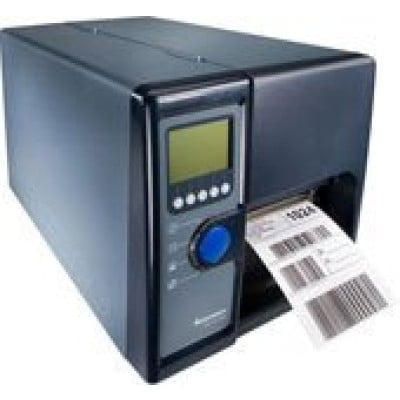

Intermec EasyCoder PD42 Barcode Label Printer

Intermec EasyCoder PD42 Barcode Label Printer

The Intermec EasyCoder PD42 can print demanding crisp variable-data labels continuously at 150 mm/s (6 ips). It takes industry standard 200-mm (8-in) rolls of labels and 450 m (18 000 in) of ribbon, reducing downtime for loading media to a minimum. The printer accepts a wide range of paper types in different thicknesses, as well as both ink-in and ink-out ribbon. In addition the EasyCoder PD42 offers many Smart Printing features normally found only in high-performance printers. By adding Intermec's LabelShop Pro and XMLLabel, the EasyCoder PD42 will be fully provisioned for XML printing environments. Support for Unicode fonts and Intermec Ready-to-Work indicator are standard - all at an affordable and competitive price. Networking is an increasingly important user requirement but still a rare feature in this printer class. The EasyCoder PD42 offers high-speed, multi-channel Ethernet as a standard choice.

Discontinued - Need Assistance

See all options

Specs & Info
All Options

Intermec EasyCoder PD42 Specs (pdf)

Intermec EasyCoder PD42 Driver (download)

Interfaces

Standard:
• Ethernet 10/100 Mbps
• RS-232, up to 115.2 kB/s
• Fingerprint/Direct Protocol: XON/XOFF, ENQ/ACK, DTR, RTS/CTS
• IPL: XON/XOFF, Intermec Std. Protocol
• USB 2.0

Optional:
• Parallel IEEE 1284

Wireless:
• IEEE 802.11 b/g
• Wi-Fi Certified, CCX (Cisco®) version 3 Certified
• WEP, WPA, WPA2, 802.11x (EAP-TTLS, LEAP, PEAP, FAST), 802.11i

Supported Protocols:
TCP/IP-suite (TCP, UDP, ICMP, IGMP, etc.), LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP. SNMP-MIB II supported (over UDP/IP), private enterprise MIB included. Supports IPv4 and IPv6.

Memory

Standard:
8MB Flash memory 16MB SDRAM (1 Compact Flash slot and 1 USB Boot / Hub Slot)
Options:
Up to 1GB CompactFlash (type 1) memory, Multi GB USB Thumb Drive Memory

Physical Characteristics

Length:
453 mm (17.8 in)
Height:
273 mm (10.8 in)
Width:
270 mm (10.6 in)
Weight:
13 kg (28.7 lbs)

Power

Voltage Range:
100-240 VAC ±10% auto switch
Frequency Range:
45-65 Hz

Print Specifications

Max Width:
104 mm (4.09 in) at 203 dpi
105.7 mm (4.16 in) at 300 dpi
Max Length:
1520 mm (59.8 in) at 203 dpi
1028 mm (40.5 in) at 300 dpi
Max Label Width:
118.1 mm (4.65 in)
With cutter: 114m (4.49 in)
Thickness:
2.3 to 9.8 mil
Style:
Roll-fed, die-cut, continuous or fanfold
Label Roll Max Diameter:
213 mm (8.38 in)
Label Roll Core:
38-76mm (1.5-3 in)
Print Speed:
50-150 mm/s (2-6 ips) at 203 dpi
50-100 mm/s (2-4 ips) at 300 dpi
Resolution:
8 dots/mm (203 dpi)
11.8 dots/mm (300 dpi, option)
Media Type:
Direct thermal and thermal transfer label, ticket and tag printers.

Supported Bar Code Symbologies

1-Dimensional:
All major 1D symbologies are supported.
2-Dimensional:
All major 2D symbologies are supported.
