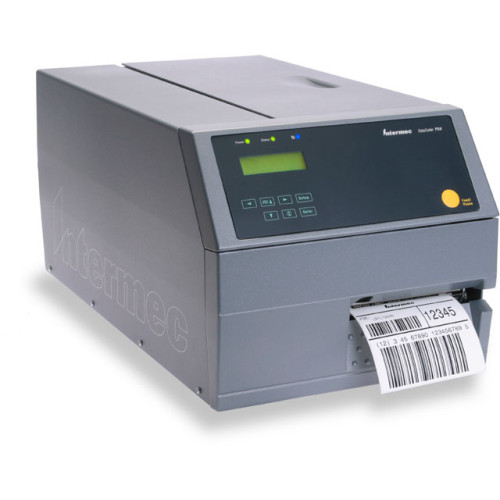

Intermec PX4i RFID Printer

Interfaces

Standard:
• Ethernet 10/100 Mbps
• RS-232, up to 115.2 kB/s
• Fingerprint/Direct Protocol: XON/XOFF, ENQ/ACK, DTR, RTS/CTS
• IPL: XON/XOFF, Intermec Std. Protocol
• USB 2.0

Optional:
• Parallel IEEE 1284
• Industrial Interface (8 digital in/out, 4 analog relays, 1 RS232/422/485 port)
• Dual Serial ports RS-232, RS-422, RS-485 and 20mA Current Loop, Applicator Interface

Wireless:
• IEEE 802.11 b/g
• Wi-Fi Certified, Cisco® Compatible(CCX) version 3 Certified
• WEP, WPA, WPA2, 802.11x (EAP- TTLS, LEAP, PEAP, FAST), 802.11i
• Multiple industrial antenna options for maximized coverage

Supported Protocols:
TCP/IP-suite (TCP, UDP, ICMP, IGMP, etc.), LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP.SNMP-MIB II supported (over UDP/IP), private enterprise MIB included. Supports IPv4 and IPv6

Memory

Standard:
16MB Flash memory, 32MB SDRAM, 1 Compact Flash slot
Options:
1GB CompactFlash memory, multi-GB USB memory device (FAT16/FAT32 USB drivers supported)

Physical Characteristics

Length:
482 mm (19.0 in)
Height:
238 mm (9.4 in)
Width:
275 mm ( 10.8 in)
Weight:
12.85 kg (28.4 lbs)

Print Specifications

Max Width:
112 mm (4.4 in) - DT
110 mm (4.3 in) - TT
Thickness:
2.4 to 10 mil
Style:
Roll-fed, continuous or fanfold labels, tags or tickets; also available with RFID
Label Roll Max Diameter:
213 mm (8.38 in)
Label Roll Core:
38-76 mm (1.5-3.0 in)
Media Type:
Thermally sensitive media
Resolution:
8 dots/mm (203 dpi)
11.8 dots/mm (300 dpi)
16 dots/mm (406 dpi)
Print Speed:
100 - 300 mm/s (4 - 12 ips) for 203/300dpi
100 – 250 mm/s (4 – 10 ips) for 406 dpi
Max Length:
4095 mm (161 in) at 203 dpi
2775 mm (109 in) at 300 dpi
1016 mm (40 in) at 406 dpi
Max Label Width:
120 mm (4.72 in)

Supported Bar Code Symbologies

1-Dimensional:
All major 1D symbologies are supported.
2-Dimensional:
All major 2D symbologies are supported.
