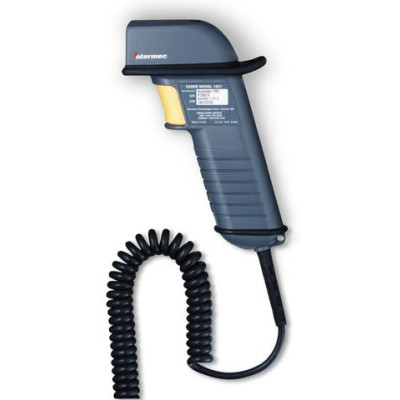

Intermec Sabre 1551 Barcode Scanner

The Intermec Sabre 1551E is the first Sabre Handheld scanner capable of consistently reading both linear and PDF417 codes at high speed. The 1551E is an impressive combination of comfort durability and performance. And of course the "E" stands for easy setup with Intermec's EasySet configuration software free of charge. Boasting plenty of rubber and a protected window the 1551E can withstand repeated drops of up to 183cm (6feet) wind and rain off road vehicle vibration levels and below freezing temperatures. Standard range for the 1551E includes reading as small as 5mil code or 100 mil reflective code. Choose the advanced long range model to read distances up to 8.1m (27 ft.). The high speed laser scanner engine reads linear and PDF417 barcodes for increased flexibility and productivity. You won't waste time getting started. Just point and click to print a barcode that configures you scanner with a single scan. Using EasySet setup software any member of your organization can configure the 1551E.

See all options

Specs & Info
All Options

Intermec Sabre 1551 Specs (pdf)

__($mfg->name) Sabre 1551 Scanner

The Intermec 1551E is the first Sabre handheld scanner capable of consistently reading both linear and PDF417 codes at high speed. The 1551E is an impressive combination of comfort, durability and performance. And of course the “E” stands for easy setup with Intermec’s EasySet^® configuration software free of charge.

__($mfg->name) Sabre 1551 Features

Durable design for harsh environments
Built in decoder eliminates separate decoder device
Choice of scan engine optics
EasySet configuration software included
Optional scanner and cable kits available

Rugged, Tested Design Boasting plenty of rubber and a protected window, the 1551E can withstand repeated drops of up to 183cm (6 feet), wind and rain, off road vehicle vibration levels and below freezing temperatures.

Superior Performance Standard range for the 1551E includes reading as small as 5mil code or 100 mil reflective code. Choose the advanced long range model to read distances up to 8.1m (27ft). The high speed laser scanner engine reads linear and PDF417 bar codes for increased flexibility and productivity.

Point and Click Configuration You won’t waste time getting started. Just point and click to print a bar code that configures you scanner with a single scan. Using EasySet setup software, any member of your organization configure the 1551E.

Physical Description Sabre 1550C Undecoded Laser Scanner Sabre 1551E Decoded Laser Scanner

Product Contents Scanner, Easy Set^®, Operator’s Guide and Getting Started Guide

__($mfg->name) Sabre 1551 Warranty 3 years

Physical Characteristics Length: 8.9 cm (3.5") Height: 17.8 cm (7.0") Width: 5.6 cm (2.5") Weight: 185 g (6.5 oz.) without cable

Power 1550: -125 mA nominal at 5V 1551: -215 mA nominal at 5V

Terminal Connectivity - 1551 only RS-232c, IBM PC XT/AT or PS/2 30/50-80, DEC VT510/520, DEC VT220/320/420. Apple Mac ADB, RS232 TTL, IBM 3151/ 347X/317X/318X/319X, IBM Thinkpad, Esprit 200/400, Wyse, Zenith CruisePAD, laptops, and Intermec terminals.

Bar code Symbologies 1550: Undecoded device (dependent on decoder for scanning symbologies) 1551: UPC (E&A), EAN, Code 11, Code 39, Code 128, UCC EAN 128, ISBN, ISBT,

Scanning Performance Scan rate: 36±3 scans per second High Density Laser: 2 mil Standard Range Laser: 5 mil Long Range Laser: 10 mil

Scan Range Dependent on scan engine Standard Range Laser Engine*: 5 mil/0.13 mm 8.1-14.5 cm 3.2-5.7" 7.5 mil/0.19 mm 7.4-22.6 cm 2.9-8.9" 10 mil/0.25 mm 6.1-34.0 cm 2.4-13.4" 15 mil/0.38 mm 6.1-46.7 cm 2.4-18.4" 20 mil/0.5 mm 8.9-62.2 cm 3.5-24.5" 40 mil/1.0 mm 11.4-99.1 cm 4.5-39" 55 mil/1.4 mm 17.8-124.5 cm 7-44" 55 mil/ 1.8 mm 91-242 cm 36-84" retro-reflective 100 mil/ 2.54 mm 112-226 cm 44-89" retro-reflective 100% UPC/EAN 2.5-38 cm 1-15"

Long Range Laser Engine*: 7.5 mil/0.19 mm 27-43 cm 11-17" 10 mil/ 0.25 mm 27.9-98.3 cm 11-19" 15 mil/0.38 mm 20.3-83.8 cm 8-33" 20 mil/0.5 mm 20.3-96.5 cm 8-38" 40 mil/1.0 mm 22.9-190.5 cm 9-75" 55 mil/1.4 mm 22.9-203 cm 9-80" 70 mil/1.8mm 104-150 cm 75-161" retro-reflective 100 mil/2.54 mm 210.8-530.9 cm 83-209" retro-reflective 100% UPC/EAN 27-70 cm 11-28"

Advanced Long Range Laser Engine*: 10 mil/0.25 mm 54-80 cm 21-32" 15 mil/0.38 mm 51-118 cm 20-47" 20 mil/0.5 mm 38-154 cm 15-61" 40 mil/1.0 mm 41-250 cm 16-99" 55 mil/1.4 mm 56-303 cm 21-120" 70 mil/1.8 mm 274-546 cm 108-216" retro-reflective 100 mil/2.54 mm 243-698 cm 96-276" retro-reflective 100% UPC/EAN 54-106 cm 21-42"

High Visibility Laser Engine*: 5 mil/0.13 mm 7.4-11.2 cm 2.9-4.4" 7.5 mil/0.19 mm 4.8-18.8 cm 1.9-7.4" 10 mil/0.25 mm 4.6-22.9 cm 1.8-9" 15 mil/0.38 mm 3.8-35.6 cm 1.5-14" 20 mil/0.5 mm 5.1-48.3 cm 2-19" 40 mil/1.0 mm 10.2-78.7 cm 4-31" 55 mil/1.4 mm 16.5-88.9 cm 6.5-35" 100% UPC/EAN 2.5-40 cm 1-16"

High Density Laser Engine*: 2 mil/0.05 mm 1.8-3.9 cm .7-1.8" 5 mil/0.13 mm 3.8-11.9cm 1.5-4.7" 7.5 mil/0.19 mm 2.5-15cm 1-6" 10 mil/0.25 mm 2.5-17 cm 1-7" 15 mil/0.38 mm 2.5-22 cm 1-9" 100% UPC/EAN 2.5-17 cm 1-7" *Depth of field measured using Code 39, ANSI Grade A

Print Contrast Standard range, high visibility: minimum 25% reflectance difference High density, long range: minimum 40% reflectance difference Skew: ±55° from normal Pitch: ±65° from normalOptical Parameters Visible laser diode 670nm±10nm (standard range, high density) 650nm±10nm (Long range, high visibility, ALR) ALR: International Class 3A USA/Canada Class II All others: International Class 2Ambient Light Immunity Immune to direct exposure from office level lighting and sunlight

Environmental Operating Temperature: -30° to 50°C (-22° to 122°F) Storage Temperature: -40° to 70°C (-40° to 168°F) Humidity: Non-condensing (0 -95% RH) Drop Test: Twenty-six 1.8m (6') drops to concrete Sealed against rain and dust (IEC 529 rated at IP54) SAE off-road vehicle spec for vibration (Class 3)

__($mfg->name) Sabre 1551 Accessories Scanner Pouch, Holster and Belt, Vehicle Mount Holder, Wall Mount Holder and Desk Stand Holder

Regulatory Approvals UL listed UL 1950 and C22.2 no. 950; UL listed UL 1604 (Div. 2, Class I, II & III hazardous locations); TÜV Rheinland GS, EN 60950 & EN 60825-1; FCC Part 15; Canada, ICES-003, Class B; EN 55022/CISPR 22, Class B; EN 50082-1; Compliant with all European Directives, CE marked.

Extended Details

Refine Your Options

Intermec 1551E0600 Barcode Scanner
Part #: 1551E0600 | SKU: INT6188

E Laser Scanner (Standard Range, Cable required)
Intermec 1551E0601 Barcode Scanner
Part #: 1551E0601 | SKU: INT6189

E Advanced Long Range Scanner (Requires Cable - Sold Separately)
Intermec 70300 Barcode Scanner
Part #: 70300 | SKU: INT25164

E Scanner (Standard Range with Wedge Cable, Din-Mini Din)
Intermec 70303 Barcode Scanner
Part #: 70303 | SKU: INT25166

Sabre 1551, wand emulation kit, includes straight cable, 10-pin for Intermec devices and US power supply.
Intermec 1551E0605 Barcode Scanner
Part #: 1551E0605 | SKU: INT28454

E Integrated Decode Scanner (High Density - No Cable)
Intermec 70302 Barcode Scanner
Part #: 70302 | SKU: INT48704

Sabre 1551, E Scanner Kit (Advanced Long Range Handheld 1551E Laser Scanner, with RS-232 Cable, 9-Pin D-Sub and US Power supply)
Intermec 72122 Barcode Scanner
Part #: 72122 | SKU: INT48707

Sabre 1551, E Scanner Kit (Standard Range, RS-232 DCE and 6.5 ft. Cable)

Recommended Accessories for Model: Intermec Sabre 1551 Barcode Scanner

Intermec 0-302029-01 Accessory
Part #: 0-302029-01 | SKU: INT992

Power supply (for the 9730, 9735, 1551E, 1800, 1802 and MaxiScan 2100)
Intermec 71267 Accessory
Part #: 71267 | SKU: INT1002

Holster for 1552 with Belt. Formerly listed as (Part# 068174).
Intermec 3-604038-00 Accessory
Part #: 3-604038-00 | SKU: INT6190

Cable (USB) for the 1551E
Intermec 3-604032-00 Accessory
Part #: 3-604032-00 | SKU: INT6191

Cable (6.5 feet, RS-232, DCE, 9-Pin Female, D-Sub - Requires Power supply)
Intermec 068414-038 Accessory
Part #: 068414-038 | SKU: INT25137

Cable assembly, 15 ft, PC, PS/2, 30-50 Y, for the 1551C
